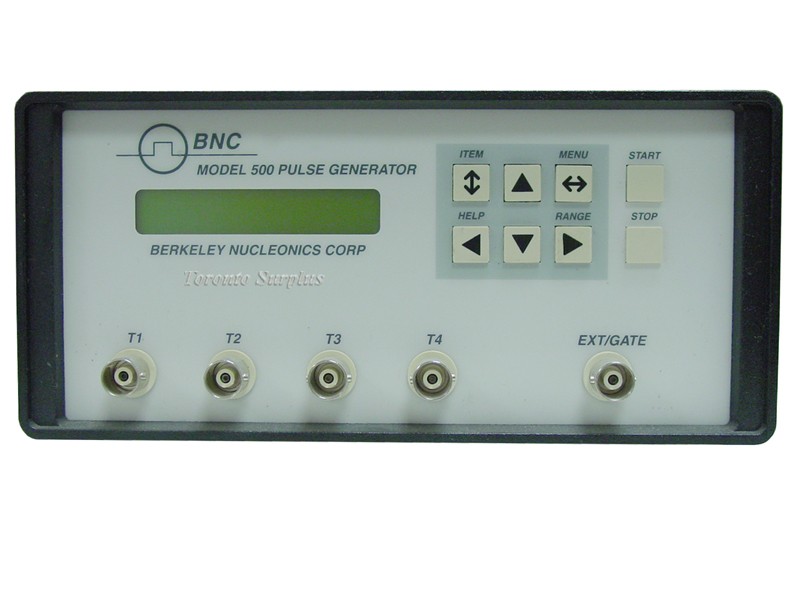

The Berkeley Nucleonics Model 500B pulse generator is very easy to use. Rather than the usual array of knobs and switches, the 500B uses a menu-driven user interface with "on-line" help at the touch of a button. The 500B has some unique features that are designed exclusively for use as a laser trigger signal generator, but can also be used as a general purpose pulse generator.

SPECIFICATIONS:
• Output Impedance: 50Ohm
• Delay: 0 to 99.9999998 sec
• Pulse Width: 400 ns to 99.9999998 sec
• Resolution: 200 ns
• Accuracy: 20 ns + .0001 x delay
• Timebase: 5 MHz 25 PPM crystal oscillator
• RMS Jitter: 10 ns + .0001 x period 100 ns max
• Trig. Delay: Ext Trig to To < 10 ms
• Interface: RS-232

2 in stock "
