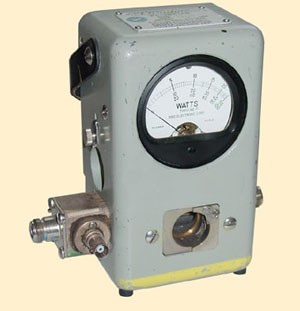

    Bird 43 Thruline Wattmeter with 4275-100 Signal Sampler, Type 'N'

    Double click on above image to view full picture

    More Views

    • Bird 43 Thruline Wattmeter with 4275-100 Signal Sampler, Type 'N'

    Bird 43 Thruline Wattmeter with 4275-100 Signal Sampler, Type 'N'


    Part Number: sku2758
    US$295.00
    Add Items to Cart
    Quantity in Stock: 1

    Ask a Question

    Product Category: RF POWER

    Product Description

    General information for Bird 43 is above.

    The 4275-100 Signal Sampler can be used for spectrum analysis, signal observation, and frequency counting. It produces an unrectified RF Sample, Low VSWR and Negligible Insertion Loss plus Adjustable Coupling Factor with lock.

    SPECIFICATIONS:
    Max Power Rating: 1 kW Impedance: 50W nominal Frequency Range: 20 MHz to 1 GHz Coupling: Adjustable over an approximate 18 dB range Insertion VSWR: 1.1 max. 2-512 MHz, 1.25 max. 512-1 GHz. Max. Insertion Loss: 0.1 dB, 2 to 512 MHz; 0.2 dB, 512 to 1 GHz.
