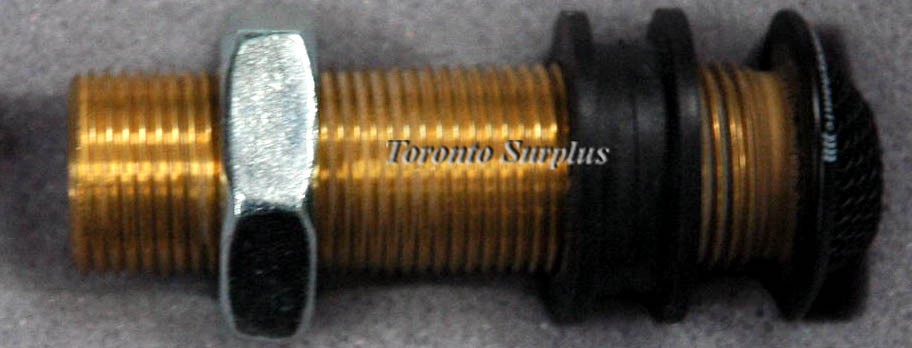

    Beyerdynamic MPC22 / MPC22EQ3SW/ MPC 22 EQ SW / Electret Condenser Cardioid Surface Mount Microphone with Low Frequency Roll Off (Black)

    Double click on above image to view full picture

    More Views

    • Beyerdynamic MPC22 / MPC22EQ3SW/ MPC 22 EQ SW / Electret Condenser Cardioid Surface Mount Microphone with Low Frequency Roll Off (Black)

    Beyerdynamic MPC 22 / MPC22 EQ3 SW Boundary Microphone, Electret Condenser, Half-Cardioid, Surface Mount, Black with Bass Roll Off Filter BNIB / NOS


    Part Number: sku7251
    US$175.00
    Add Items to Cart
    Quantity in Stock: 50

    Ask a Question

    Product Category: AUDIO/VISUAL EQUIPMENT & ACCESSORIES

    Product Description

    Beyerdynamic MPC22 / MPC22EQ3SW/ MPC 22 EQ SW / Electret Condenser Cardioid Surface Mount Microphone with Low Frequency Roll Off (Black)

    Specifications:

    Transducer : Electret Condenser
    Polar Pattern: Half-Cardioid
    Frequency Response: 60 Hz to 20kHz
    Signal-to-Noise Ratio: 60dB @ 1kHz
    Power Requirements: 8V to 52V phantom power
    Output Impedance: 200 ohms
    Output Connectors: 2-pin XLR male
    Pad: No
    Low Frequency Roll-Off: No
    Dimensions: .35 x 1.18 (9x30mm) (Height x Head Diameter)
    Weight: approx 2.47oz (70g)



    Features:
    -Low Frequency Roll-Off Switch- Low frequncy roll off eliminates noise caused by hum and surace born proximity effect

    -Miniature Unobtrusive Profits: The MPC22 features a small surface mountable design. The low-profile design is suitable for broadcast, board-rooms, conferences, houses of worship and more.

    -Half-Cardioid Polar Pattern: The half cardioid polar pattern effectively minimizes noise at the off-axis sections of the capsule. Surface noise is suppressed as well.

    -Wide Frequency and Sensitivity Response: The wide frequency and sensitivity response is provided by a condenser transducer which reproduces audio signal with pristine fidelity



    Overview:

    The Beyerdynamic MPC22 combines the convenience of micro components with the fidelity of a high quality condenser transducer. The MPC22 is a miniature surface mount microphone with an unobstrusive surface mountable profile. The microphone head measures only 1.18" in diameter making it suitable for use in conferences, news broadcasts, houses of worship and anywhere in inconspicuous microphone is necessary.

    The small foot print is not representative of MPC22's sensitivity and frequency response. The condenser element is more than capable of reproducing accurate, transparent audio signal, resulting in a big overall ambiance. The result is strong signal with a low noise floor. The MPC22 mounts easily in ceilings, walls or table tops and includes elastic bearing rings that suppress surface noise. The MPC22 includes a standard 3 pin XLR-male adapter and is powered via external phantom power source.


    Note: Microphones come brand new in box with rubber washer, nut & operators/instruction manual.
