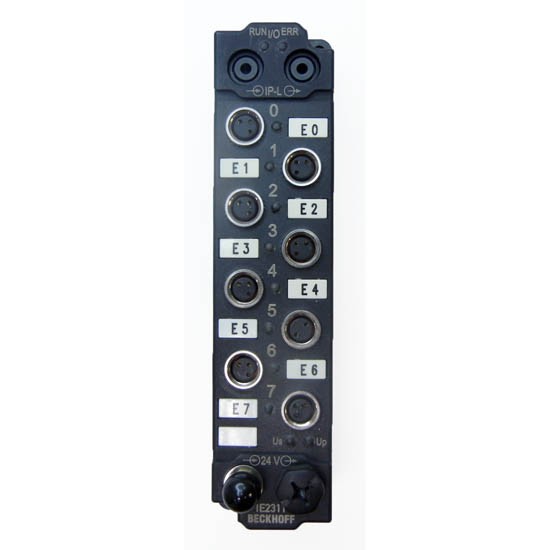

Beckhoff IE2311

4 x digital input + 4 x digital output 24 V DC, IMAX = 0.5 A

The IE2311 digital I/O modules combine four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit-proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected by screw type M8 connectors.

• Number of channels: 4 inputs + 4 outputs
• Input/output connections: M8, screw type
• Input filter: 0.2 ms
• 0“ signal voltage: -3…+5 V
• “1“ signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 2)
• Sensor supply: from control voltage, max. 0.5 A total, short-circuit-proof
• Rated load voltage: 24 V DC (-15 %/+20 %)
• Max. output current: 0.5 A on each channel, individually short-circuit-proof
