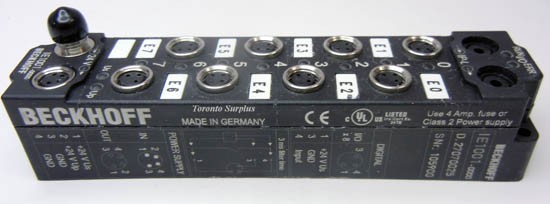

IE1001 8-channel digital input 24 V DC

The IE1001 digital input modules acquire the binary control signals from the process level and transmit them to the higher-level automation unit. The state of the signals is indicated by light emitting diodes. The signals are optionally connected via M8 screw type connectors.

• Number of inputs: 8
• Input connections: M8, screw type
• Input filter: 3.0 ms
• "0“ signal voltage: -3…+5 V (EN 61131-2, type 2)
• “1“ signal voltage: 11…30 V (EN 61131-2, type 2)
• Input current     typ. 6 mA (EN 61131-2, type 2)
• Sensor supply     from control voltage, max. 0.5 A total, short-circuit-proof
• Power supply connection     feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin

5x1.5x1.25"
