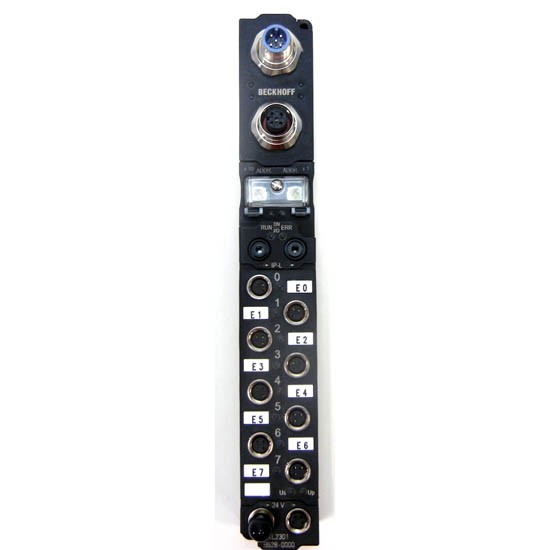

Beckhoff Devicenet IE2301 B528 Coupler Box Module with 4x Digital Input + 4x Digital Output 24 VDC, IMAX = 0.5 A
The IL230x Coupler Box modules combine four digital inputs and four digital outputs in one device. The outputs handle load currents of up to 0.5 A, are short-circuit-proof and protected against inverse polarity. The state of each signal is indicated by means of light emitting diodes. The signals are connected via M8 screw type connectors.
- EN 61131-2, type 2
- Number of channels: 4 inputs + 4 outputs
- Input/output connections type: M8 screw type
- Input filter: 3.0 ms
- “0“ signal voltage: -3…+5 V
- “1“ signal voltage: 11…30 V, 6 mA input current (EN 61131-2, type 2)
- Sensor supply: Derived from control voltage, max. 0.5 A total, short-circuit-proof
- Load type: ohmic, inductive, lamp load
- Rated load voltage: 24 V DC (-15 %/+20 %)
- Max. output current: 0.5 A on each channel, individually short-circuit-proof
- Short circuit current: typ. 1.5 A
- Auxiliary power current: typ. 20 mA
- Power supply connection feed: 1 x M8 male socket, 4-pin; downstream connection: 1 x M8 female socket, 4-pin
