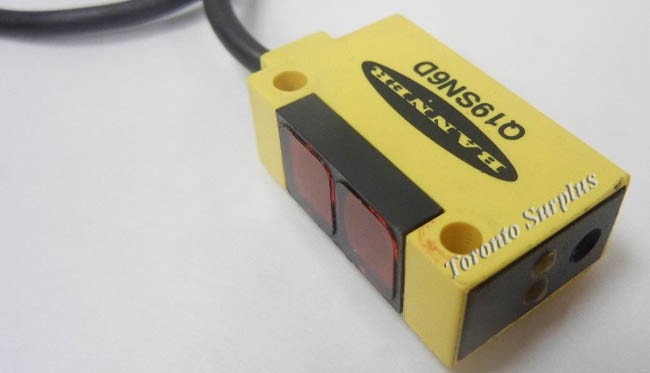

FEATURES

• Economical opposed, polarized, retroreflective diffuse, and plastic fiber optic sensors in compact rugged, NEMA -6 rated ABS housings.
• Powerful visible red sensing beam simplifies setup and alignment.
• Totally self comtained: 10 to 30 volt DC operatio.n
• Comlementary output: one normally open, one normally closed: choice of NPN (sinking ) or PNP ( sourcing models, 100mA max. ( continuous ).
• LED indications for Power on moutput over load, object sensed and low gain conditions.

SPECIFICATIONS

• Sensing Beam ... Visible red 680 nm
• Supply Voltage ....10 to 30 V  dc at a 25 mA maximum for diffuse
• Output Rating....... 100mA maximum ( each ) in standard hookup
• Operating Temp Range..... -20° to +55°C
• Max Relative Humidity.........90% at 50°C  ( non condensing )
