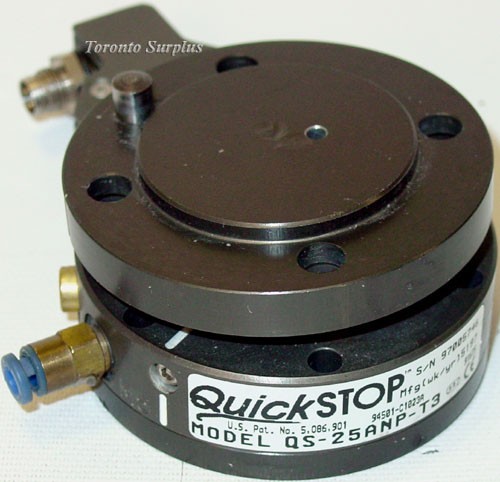

QuickSTOP is a dynamically variable collision sensor that operates on an air pressure system. A regulated air supply provides positive, variable pressure to hold the QuickSTOP rigid during normal operation. At impact, the air chamber seal is op...

FEATURES:

• ·  Dynamically variable trip points
• ·  Permanent repeatability
• ·  Detects angular rotational and compressive forces·

•    Easy programming and resetting·
•    Use on linear actuators robots pick and place machines

SPECIFICATIONS:

• Compliance Angle +/-5 Deg
• Axial Compliance (z+) 3.40 mm
• 0.134 in

• Rotary Compliance No Limit

• Operating Pressure 1.0-6.0 bar (14.5-87 psig)

• Torque trip point Mz 1.0 - 6.4 N-mcontinuously variable 9 - 56 in-lb

• Moment trip point Mx & My 1.0 - 6.4 N-mcontinuously variable 9 - 56 in-lb

• Repeatability at tool mounting surface

• X and Y axes +/-0.013

• +/-0.0005 in

• Z axis +/-0.013 mm
• +/-0.0005 in

• Rotational +/-0.419 radians (10-3)

• +/-0.024 degrees

• Mass .26 kg
• .56 lb

• Center of mass 18.6 mm

• (from robot adaptor plate) .73 in

• Average response time <15 ms

• Operating Temperature Min. 0 Deg C (32 Deg F)

• Max.70 Deg C (158 Deg F)
