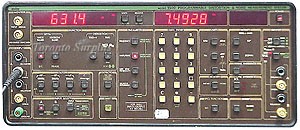

    Amber 5500 Programmable Distortion & Noise Measurement System

    Double click on above image to view full picture

    More Views

    • Amber 5500 Programmable Distortion & Noise Measurement System

    Amber 5500 Programmable Distortion & Noise Measurement System


    Part Number: sku1224
    US$2,650.00
    Add Items to Cart
    Quantity in Stock: 2

    Ask a Question

    Product Category: ANALYZERS: DISTORTION/NOISE,  TELECOM TEST EQUIPMENT

    Product Description

    The 5500 has the Improved Performance & High Speed options as well as firmware version 4.10 which is the most recent version.

      SPECIFICATIONS:
      Signal Source
    • Frequency Range 10 Hz to 100 kHz resolution to 0.005%
    • Amplitude Range 10 Vrms to < 1 mVrms open circuit
    • THD 50 Hz to 10 kHz <0.005% (-106dB)
    • Unbalanced Floating or Grounded Output (Balanced 600 ohms Balanced 900 ohms Unbalanced 50 ohms)

    • Analyzer Section
    • Frequency Range 8.5 Hz to >500 kHz
    • Level Range 100 Vrms to <10 uVrms (+40 dBV to -100 dBV)
    • Level Flatness +- 0.25 dB or better
    • Wideband Residual Noise (600 ohms 20 Hz to 100 kHz A weighting) <2.5 uV / -112 dBm
    • Narrowband Residual Noise (600 ohm 1 kHz bandpass) <0.7 uV / -123 dBm

    • Frequency Measurement
    • 9.5 Hz to 105 kHz 5 digits
    • accuracy better than 100 ppm

    • THD + N Measurement
    • frequency range 9.5 Hz to 105 kHz
    • THD+N range >32% to 0.0000% (>-10 dB to -120 dB)
    • Fundamental rejection 120 dB or better

    • Standard Filters
    • 400 Hz High Pass 60 dB per decade Butterworth Response
    • 30 kHz Low Pass 60 dB per decade Butterworth Response
    • 80 kHz Low Pass 60 dB per decade Butterworth Response

    • IEEE-488 Interface



    Special 900 ohm unit ideal for telephone testing."
