Product Description
Quarter Brick DualQor Family
- Dual Output at various voltage combinations with a 48V input
- Delivers up to 60W with no heatsink, with up to 90% efficiency at full load
- Industry standard size (1.45 x 2.3) and pin out
- Low profile, only 0.43 high
- Offers ON/OFF pin voltage trim and 100V 100ms input transient protection
- No heatsink baseplate or potting materials -- results in high reliability

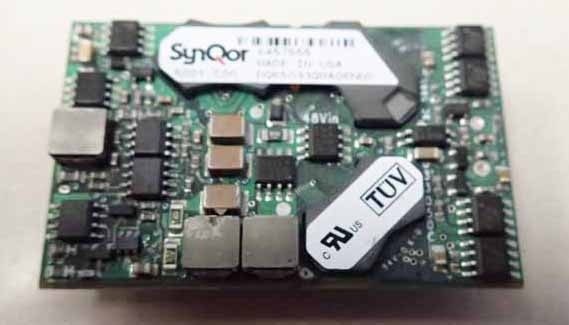

Details for DQ65033QMA06NNS:
Input: 48 VDC (35V-75V w/100V input transient)
Output 1: 5.0 VDC Output 2: 3.3VDC
Size: Quarter Brick Performance Series: Mega Thermal Design: Open Frame
Total Power: 60 Watts Logic: Negative Pin Length: 0.145"
Features: Standard
Please click here for data sheet.
It looks almost identical to 1/4 brick
Professionally pulled from boards
