Product Description

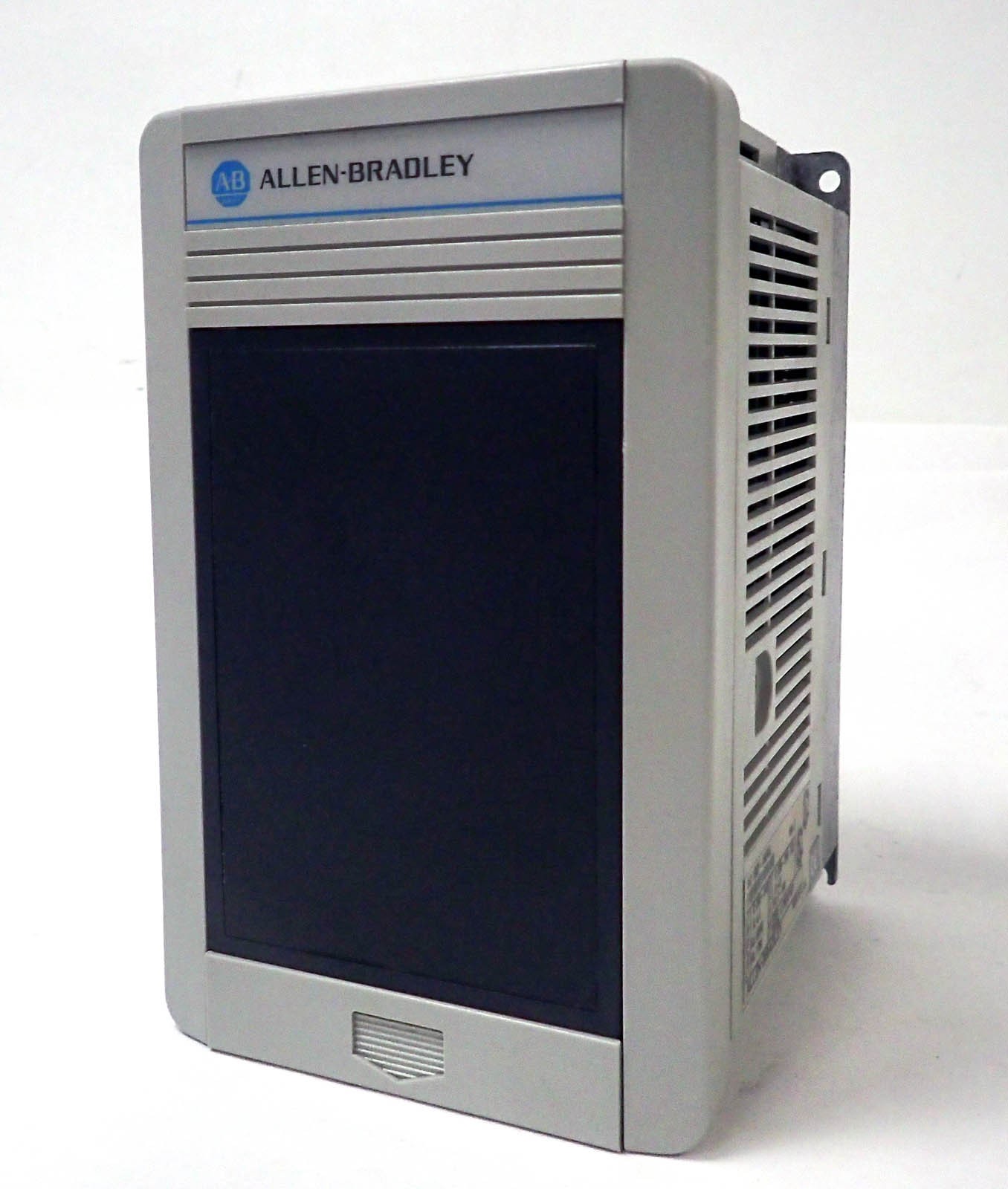

The Bulletin 1305 AC drive is a variable speed drive designed to control the speed of three-phase AC
induction motors in a variety of demanding applications where flexibility, performance and ease of use
are essential.
SPECIFICATIONS:
Bulletin 1305 Drive Rated 200-230 VAC
3 Phase Motor Rating: 0.75 kW (1 HP)
Output Current: 4.5A (see specs for details)
Output Voltage: 0V to Input Voltage
Output Frequency: 0.00 to 400.00 Hz Programmable
Input Voltage and Frequency: 200/230 VAC, 3 Phase, 50/60 Hz
Input kVA: 1.7
Power Dissipation: 36 W
Additional specifications available upon request.
