Product Description

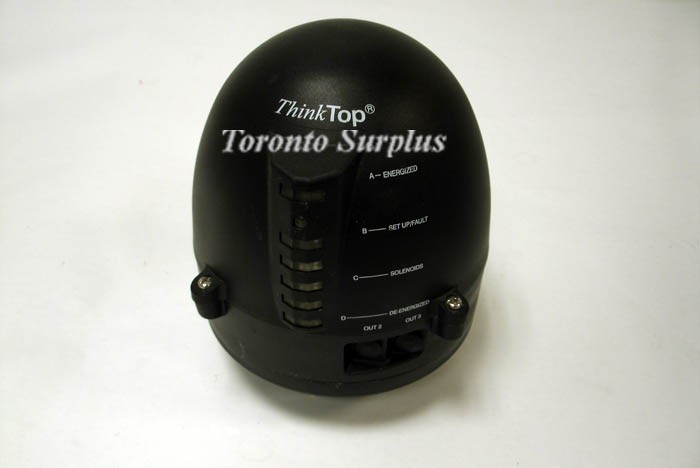

The ThinkTop Basic is a basic control head including sensor board and solenoid valves to control processing valves. It is used to control and supervise pneumatic valves and is mounted on top of the valve. It receives sig nals from a PLC to control the solenoid valve and itsends the valve status feedback signals back to the PLC. To adapt the sensor board to the specific valve, the users make a simple set-up by using local keys.
FEEDBACK SIGNALS
Nominal voltage: ...............Same as connected to the ThinkTop Basic.
Load current: ..................50mA typical,100mAmax.
Voltage drop: ..................Typical XVat50mA.
SENSOR DETECTION SYSTEM
Sensor accuracy . . ............. +/- 0,1mm.
To l e r ance band: ................+/- 5 mm.
Distance to indication pin: .........5+/-3mm.
Stroke length: .................0,1-80 mm.
