SPECIFICATIONS:


• Output Ratings:
  Adjustable from 0 to 60V and 0 to 50A.  Maximum output power is 1000W at 50A, 1050 W at 60V, and approximately 1200 W at mid-range
  Range 1: 0 to 60 V 0 to 17.5 A
  Range 2: 0 to 40 V 0 to 30.0 A
  Range 3: 0 to 20 V 0 to 50.0 A
  Power (max.): 1200 W
• Ripple & Noise from 20 Hz to 20 MHz:
  Voltage rms: 8 mV
  Peak-to-Peak: 40 mV
• Load Regulation:
  0.01% + 5 mV

• Input two internal switches and two internal jumpers permit operation from 120 VAC, 24 A max / 220 VAC, 15 A max or 240 VAC 14 A max (AC -13%, +6%), 48-63 Hz, single phase

Additional specifications available upon request

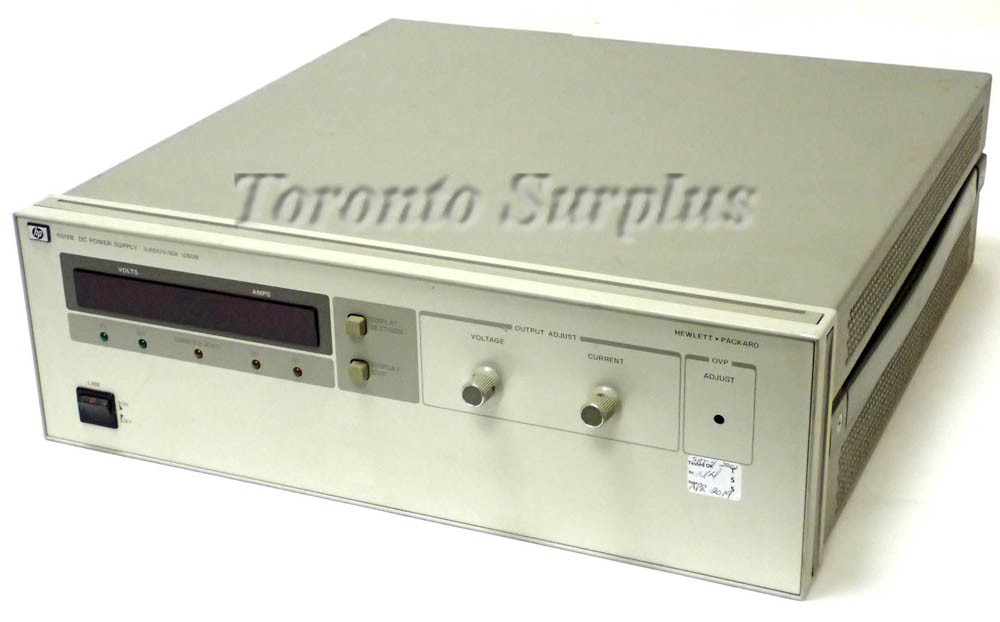

We have more than one of these units in stock, so you may not receive the unit in the photo, and the cosmetic condition may not be the same.

If you would like to receive pictures of the exact unit/units you will receive please send us a request.
