Product Description
The Adept MV-10 chassis has an auto-ranging 100-120/200-240 VAC single-phase, 350-watt power supply.
Plug-ins included:
- System Processor: (040. P/N 10332-00710 Rev P2) 25 MHz 68040, 4 or 8 MB RAM.
- System Input/Output: (SIO. P/N 10332-12350 Rev P6) floppy drive, hard drive, 3 serial I/O ports, 20 digital I/O channels - 12 inputs, 8 outputs
- Adept VME Graphics Module (VGB P/N 10332-10250 Rev P5)
- Adept Joint Interface: (VJI P/N 10332-00500 Rev A) Interface to Adept robots and power chassis, interface to belt encoders for conveyor tracking.
- Digital Input/Output: (DIO P/N 10332-00800) 64 channels - 32 input/32 output, 2 output ranges - 10-15VDC and 15-30VDC, 400 mA max output, 8 modules max per controller

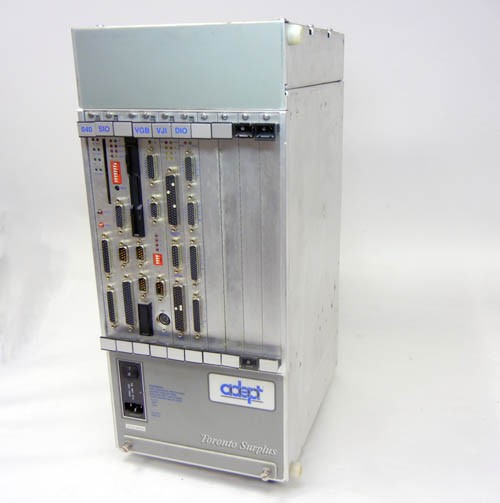

The Adept MV-10 controller is a 10-slot chassis that is in a robot configuration and stands vertically. It can be joined to an Adept PA-4 power chassis, and the joined units can be mounted in a standard 19-inch equipment rack. The slots can be populated with various combinations of optional Adept boards.
