Product Description

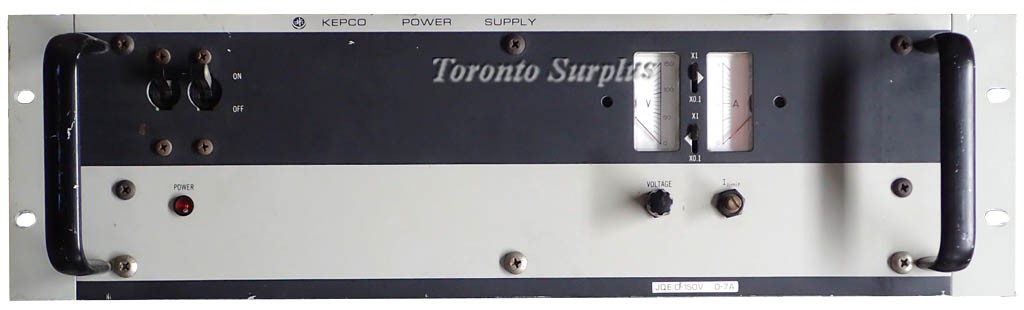

Series JQE power supplies are systems-type voltage stabilizers with current limiting. JQE power supplies feature full range voltage control, and current limit adjustment by means of multi-turn front panel controls. They have linear, full dissipation series-regulators (NPN) driven by an integrated circuit operational amplifier.
Input: 105-125/210-250 VAC, 47-65 Hzm approx max current 18 Amps @ 125 VAC
Output: 0-150 VDC, 0-7 A
Impedance (ohms + uH): DC-100 Hz 1.1x10-3 / 0.1-1 kHz 0.01 / 1 kHz-100 kHz 0.05 +2
