Wiltron 560 / Anritsu 560 System Components for Scalar Network Analyzer
sku82981 — low stock
Request a Quote
By Anritsu
<p>Wiltron 560 / Anritsu 560 System Components for Scalar Network Analyzer</p><p>This handy wooden case comes with several system components used for the scalar network analyzer.</p><p>Components included: </p><p> -560-98 SWR Autotester (10 MHz to 18.5 GHz) - RF Detector 560-7N50 (10 MHz t…
Description

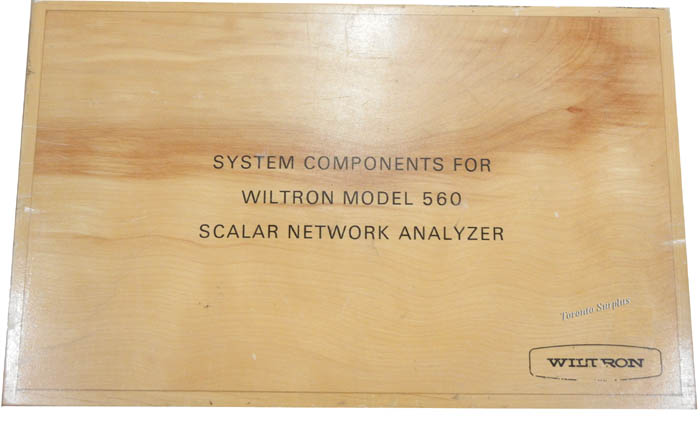

<p>Wiltron 560 / Anritsu 560 System Components for Scalar Network Analyzer</p><p>This handy wooden case comes with several system components used for the scalar network analyzer.</p><p>Components included: </p><p> -560-98 SWR Autotester (10 MHz to 18.5 GHz)
- RF Detector 560-7N50 (10 MHz to 18.5 GHz)
- Adapter 50 ohm 34NN50A (10 MHz to 18.5 GHz)
- Type N to N Connectors (qty: 2)
- Wiltron 22NF50 Open Short Site Master SiteMaster Antenna Cable
- Pamona 3781-12 Probes
-1 Automated Scalar Network Analyzer Cartridge</p><p>
</p><p> 560-98 SWR Autotester (10 MHz to 18.5 GHz)</p><ul><li>    Up to 35 dB directivity</li><li>    10 MHz to 40 GHz range</li><li>    Input port impedance: 50 Ω</li><li>    Insertion Loss (from input to test port): 6.5 dB nominal</li><li>    Detector Output Polarity: Negative</li><li>    Maximum Power Input: 0.5 watts (+27 dBm)</li><li>    Output Time Constant: 2 ms</li><li>    Cable Length: 122 cm (4 feet)</li><li>    Test port connectors to fit most measurement applications; avoids use of adapters</li><li>    560-98K50: Type K(m) connection, 560-98KF50: Type K (f) connection</li></ul><p>

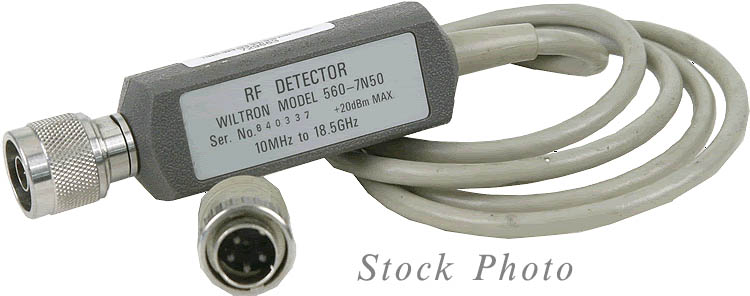

RF Detector 560-7N50 (10 MHz to 18.5 GHz)</p><ul><li>Frequency range: 10 MHz to 18 GHz</li><li>Measurement range of –55 dBm to +16 dBm</li><li>Return loss: 16 dB, <0.04 GHz; 22 dB, <8 GHz; 17 dB, <18 GHz</li><li>Maximum input power: 100 mW (+20 dBm)</li><li>50 Ohm impedance</li><li>Connector: N(m)</li><li>Cable length: 122 cm (4 ft)
</li></ul><p> </p><p>Adapter 50 ohm 34NN50A (10 MHz to 18.5 GHz)
</p><ul><li>Precision N(M) to N(M) adapter</li><li>50 ohm</li></ul><p>

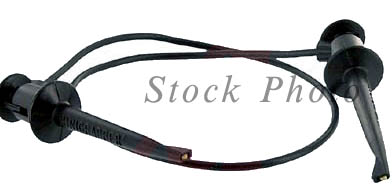

Wiltron 22NF50 Open Short Site Master SiteMaster Antenna Cable</p><ul><li>OPEN / SHORT, 50 Ohm / 2 x N-Buchse</li></ul><p>Pamona 3781-12 Probes</p><ul><li>Minigrabber Test Clip Patch Cord, 12 Inch, Black</li><li>Wire: 20 AWG. 41 × t.c. PVC insulated, 2.21 mm (0.087) O.D. Rating: 300 VAC, 12 amps.</li></ul><p>Automated Scalar Network Analyzer Cartridge</p><ul><li>Program Cartridge</li></ul>
