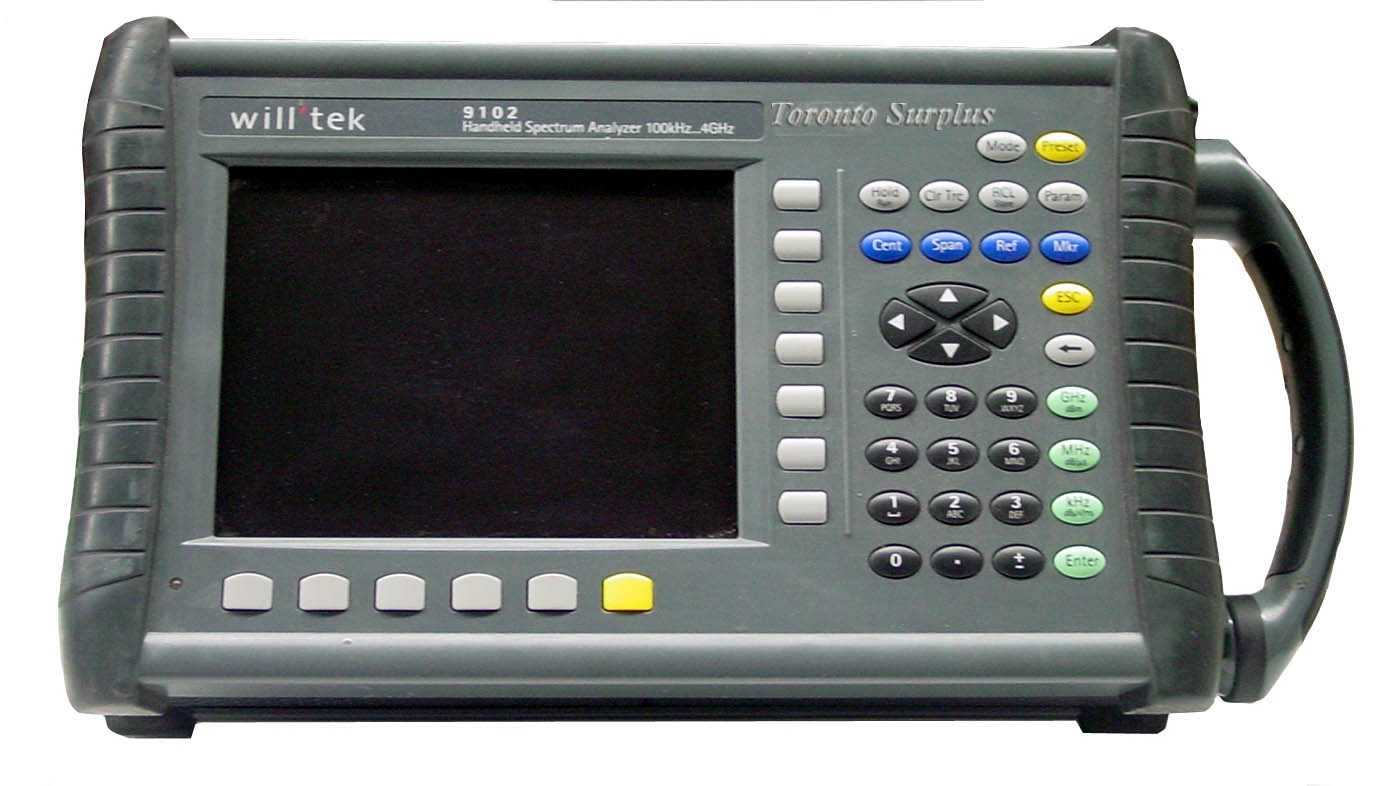

Willtek / Aeroflex 9102 Handheld Spectrum Analyzer 100kHz -4GHz

Description

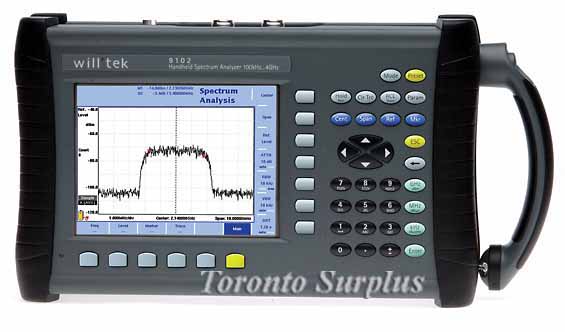

<h4>&#160;Willtek / Aeroflex 9102 Handheld Spectrum Analyzer 100kHz...4GHz </h4><p>Please note: Our 9102s are Branded as Willtek."</p><p>Portable Spectrum Analyzer Designed for Scalar Network and Spectrum Analysis</p><p>&#160;Willtek’s 9102 Handheld Spectrum Analyzer is a multifunction instrument designed for lab and field applications concerning scalar network and spectrum analysis, including cable and antenna measurements and EMC pre-qualification tests. The basic 9102 has a frequency range of 100 kHz to 4 GHz and a resolution bandwidth (RBW) of an exceptional 1 kHz. An optional frequency extension allows measurements up to 7.5 GHz. The 9102 is small in size and weight, with a large, bright display and easy-to-use menu structure.</p><p>Includes the following:
</p><p>Willtek 9102 Spectrum Analyzer, Battery, Battery Charger with AC-DC Power Adapter, Type-N male Coaxial Cable, and Soft Case.</p><p>Display (TFT)</p><p>Size= 6.5''
Brightness= 300 cd
Resolution= 640 x 480, 256 colours
Measurement result points= 2 x 501
</p><p>Power supply
</p><p>DC voltage, external
11 to 15 V / max. 28 W</p><p>&#160;Frequency</p><p>Frequency range</p><p>Measurement range- 100 kHz to 4 GHz,&#160; Resolution- 1 kHz</p><p>
Sweep time
&#160;Span &gt; 10 kHz
&#160;1 ms to 250 s
&#160;
Span = 0 Hz
&#160;1 ms to 250 s
&#160;
Resolution bandwidth (RBW)
RBW (-3 dB) range 100 Hz to 1 MHz (RBW selection manual or automatic)
&#160;
Video bandwidth (VBW)
VBW range (-3 dB) 10 Hz to 1 MHz (VBW selection manual or automatic)
&#160;
SSB noise
&lt; -80 dBc/Hz (f = 2 GHz, Δf = 100 kHz, RBW = 10 kHz, VBW = 1 kHz)
&#160;</p><p>Amplitude
Measurement range
Averaged noise floor to 20 dBm
&#160;
Display units
dBm, dBµV, dBmV, dBV, dB</p><p>Displayed average noise level (DANL) (RBW = 100 Hz, attenuation = 0 dB)
&#160;
10 to 1000 MHz
&#160;&lt; -127 dBm,
typ.-130 dBm
&#160;
1000 to 4000 MHz
&#160;&lt; -130 dBm,
typ.-135 dBm</p><p>
Input attenuation
Setting range:&#160; 0(10) to 50 dB
Attenuation steps: 10 dB
&#160;</p><p>Dynamic range
Range &gt; 70 dB
Max. measurable input level (attenuation = 40 dB)&#160; 20 dBm
Min. measurable input level:&#160; -130 dBm
&#160;</p><p>Level accuracy
10 to 3600 MHz : &#160; &#160;&#160; ±1 dB
&#160;

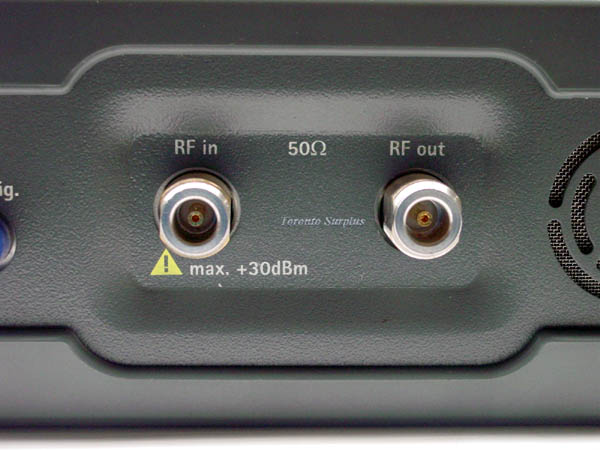

RF input match (1 to 4000 MHz, input attenuation = 10 dB)
&#160;
VSWR:&#160; &lt; 1.6, typ. &lt; 1.5
Return loss:&#160; &lt; -12 dB
&#160;
Spurious response
&#160;Image rejection (f = 1 GHz):&#160; &gt; 80 dB
LO breakthrough (attenuation = 10 dB): &lt; -77 dBm
Spurious level (attenuation = 0 dB): &lt; -90 dBm
Intermodulation-free range: &gt;63dB
(input level -30 dBm, f1 = 990 MHz, f2 = 992 MHz)
&#160;
Additional specifications available upon request
</p>
