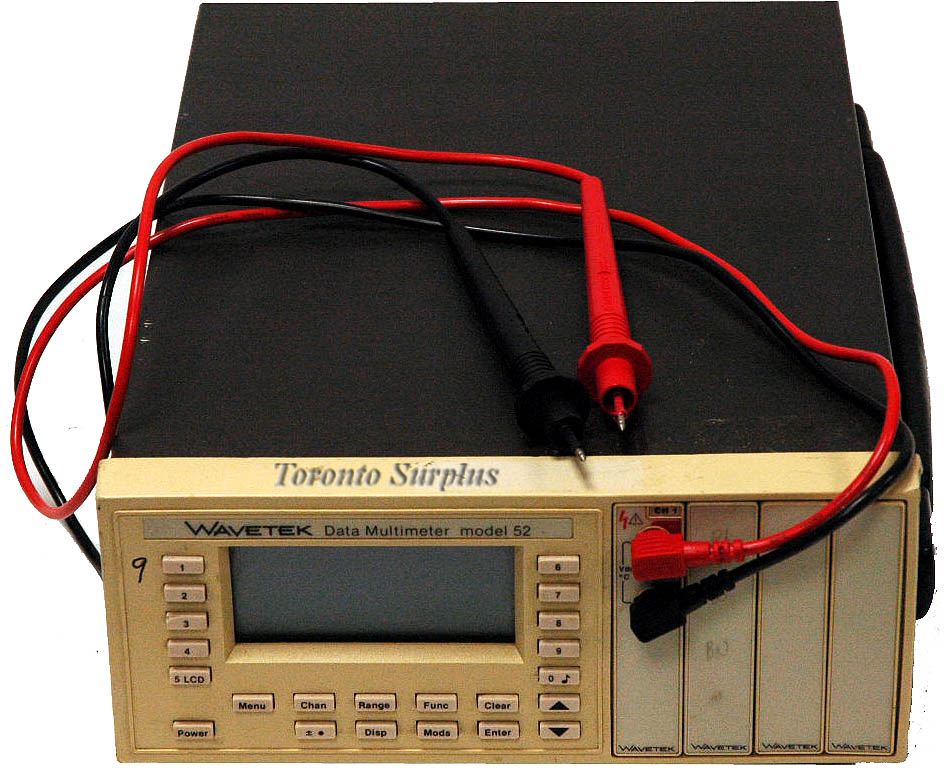

Wavetek 52 Datalogger / Multimeter with Options/Modules As Preconfigured, Please Inquire AS-IS
sku71462 — low stock
Request a Quote
By Wavetek
<h3 class="icon-head head-products">Wavetek 52 Datalogger / Multimeter Mainframe Only, Options/Modules Sold Separately</h3><p> SPECIFICATIONS (WITH APPROPRIATE OPTIONS/MODULES)</p><ul><li>DC Volts Ranges: 30mV, 300mV, 3V, 30V, 300V</li><li>AC Volts (RMS AC and RMS AC + DC) …
Description
<h3 class="icon-head head-products">Wavetek 52 Datalogger / Multimeter Mainframe Only, Options/Modules Sold Separately</h3><p> SPECIFICATIONS (WITH APPROPRIATE OPTIONS/MODULES)</p><ul><li>DC Volts
Ranges: 30mV, 300mV, 3V, 30V, 300V</li><li>AC Volts (RMS AC and RMS AC + DC)
Ranges: 30mV, 300mV, 3V, 30V, 300V</li><li>dB Measurements</li><li>Temperature: thermocouple linearizations provided by software (not icluded) for types J, K, E, T, B, S, R.  Linearizations for 385 and 392 100 ohms platinum RTD's.</li><li>Ohm Ranges: 30, 300, 3k, 30k, 300k, 3M, 30M</li><li>High Megohms Ranges: 300M, 3000M</li><li>Diode Test</li><li>Continuity</li><li>DC Current Ranges: 30mA, 300mA, 3A, 10A</li><li>AC Current Ranges: (True RMS, Shunt DC Coupled): 30mA, 3A, 300mA, 10A</li><li>Frequency Ranges (Hz): 10, 100, 1k, 10k, 100k, 1M, 4M</li><li>Events (Totalize)</li><li>Period Range: 100 µs, 1000µs, 10ms, 100ms, 1000ms</li><li>Pulse Width, Time Interval Ranges: 100ms, 1000ms, 10s, 100s, 360s</li><li>Logic</li><li>AC Volt-Amperes, DC Watts</li><li>Printer: model 54 printer/plotter</li><li>RS-232 C Serial Port</li><li>Data Memory: up to 12,000 readings</li></ul><p> </p>
Ranges: 30mV, 300mV, 3V, 30V, 300V</li><li>AC Volts (RMS AC and RMS AC + DC)
Ranges: 30mV, 300mV, 3V, 30V, 300V</li><li>dB Measurements</li><li>Temperature: thermocouple linearizations provided by software (not icluded) for types J, K, E, T, B, S, R.  Linearizations for 385 and 392 100 ohms platinum RTD's.</li><li>Ohm Ranges: 30, 300, 3k, 30k, 300k, 3M, 30M</li><li>High Megohms Ranges: 300M, 3000M</li><li>Diode Test</li><li>Continuity</li><li>DC Current Ranges: 30mA, 300mA, 3A, 10A</li><li>AC Current Ranges: (True RMS, Shunt DC Coupled): 30mA, 3A, 300mA, 10A</li><li>Frequency Ranges (Hz): 10, 100, 1k, 10k, 100k, 1M, 4M</li><li>Events (Totalize)</li><li>Period Range: 100 µs, 1000µs, 10ms, 100ms, 1000ms</li><li>Pulse Width, Time Interval Ranges: 100ms, 1000ms, 10s, 100s, 360s</li><li>Logic</li><li>AC Volt-Amperes, DC Watts</li><li>Printer: model 54 printer/plotter</li><li>RS-232 C Serial Port</li><li>Data Memory: up to 12,000 readings</li></ul><p> </p>
