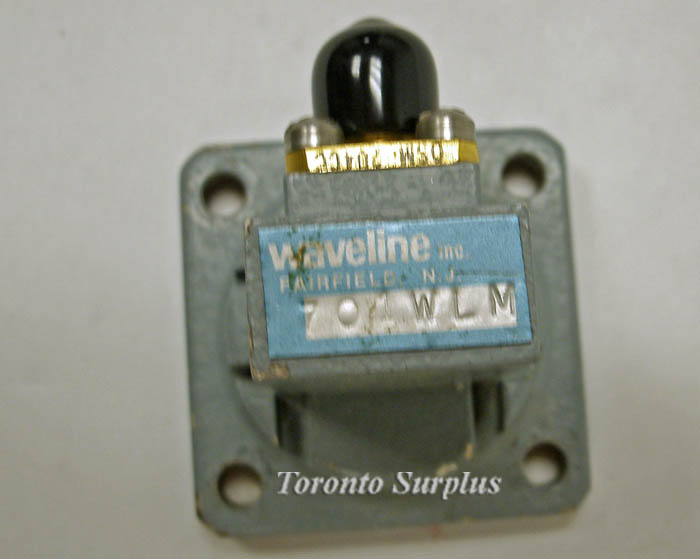

Waveline 701 WLM WR-62 to SMA Female Waveguide Adapter 12.4 to 18.0 GHz

Description

<p>( non-core data) fragility factor: moderately rugged
Tubing wall construction style: j1 seamless single tubing segment
Flange quantity: 1
Flange inside width: 0.705 inches minimum and 0.707 inches maximum first flange
Flange inside height: 0.394 inches minimum and 0.396 inches maximum first flange
Flange outside width: 1.298 inches minimum and 1.328 inches maximum first flange
Flange depth: 0.298 inches minimum and 0.328 inches maximum first flange
Flange connecting facility and quantity: 4 unthreaded hole single flange all connection facilities
Material: copper alloy single flange
Style designator: d9 waveguide to coaxial
Cross-sectional shape style: a1 internal, rectangular external, rectangular
Flange outside height: 1.298 inches minimum and 1.328 inches maximum first flange
Flange connecting hole diameter: 0.144 inches minimum and 0.147 inches maximum single flange all connection facilities
Voltage standing wave ratio: 1.50
Waveguide outside width: 0.699 inches minimum and 0.705 inches maximum
Waveguide inside width: 0.620 inches minimum and 0.625 inches maximum
Waveguide inside height: 0.309 inches minimum and 0.314 inches maximum
Waveguide outside height: 0.388 inches minimum and 0.394 inches maximum
Flange style: c28 cover type first flange
Iii fsc application data: antennas,waveguides,and related equipment</p><h1 class="it-ttl" itemprop="name" id="itemTitle">&#160;</h1>
