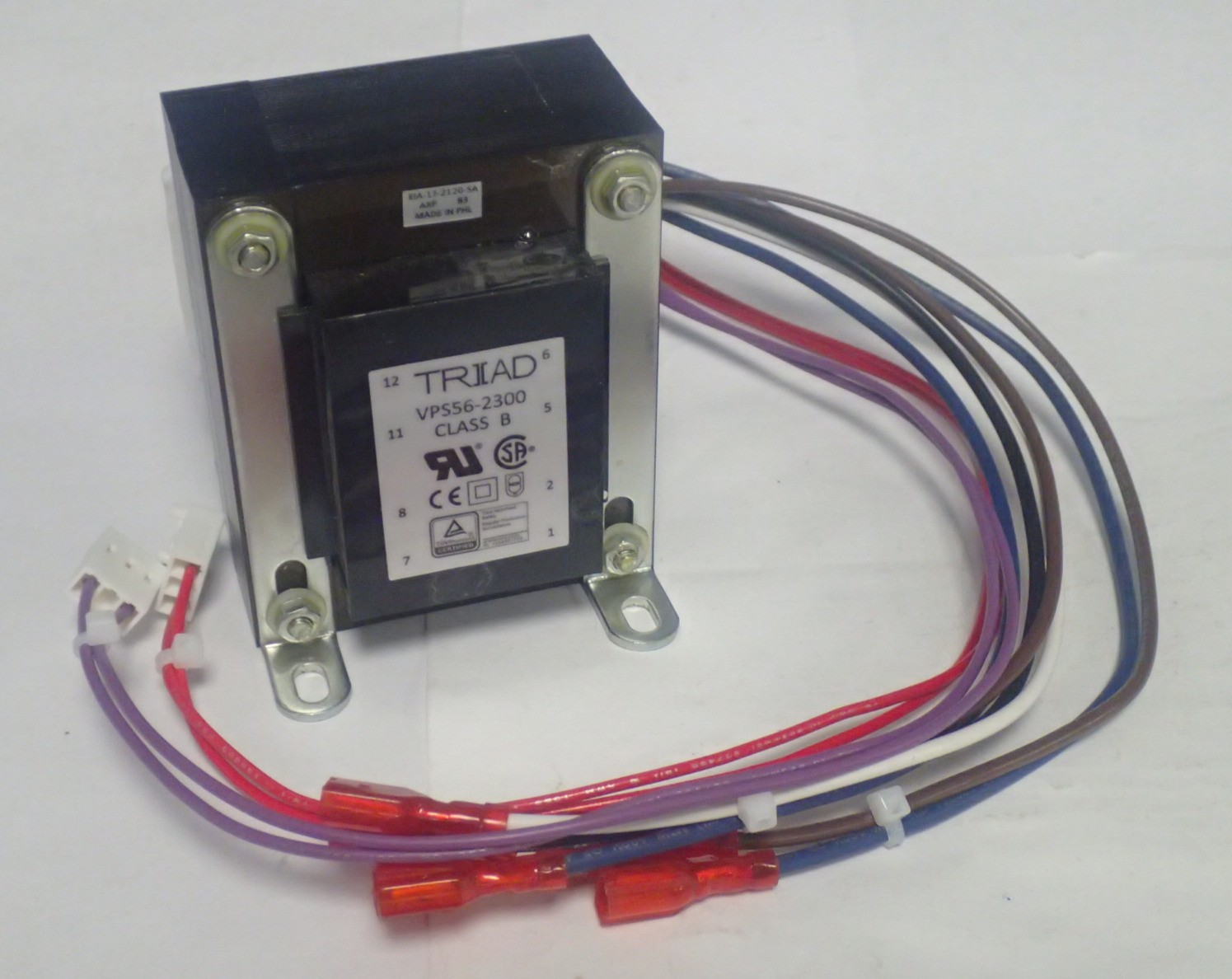

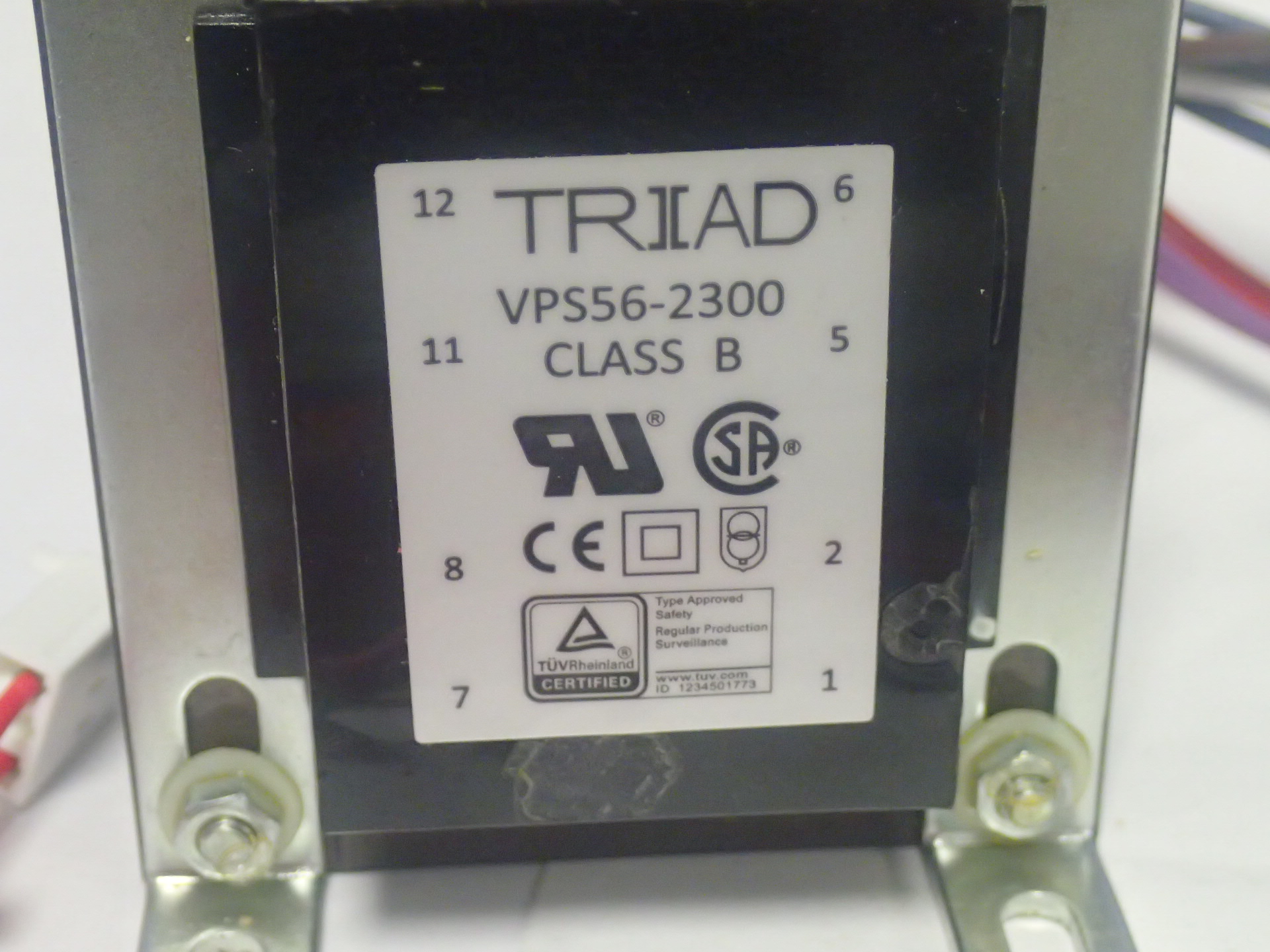

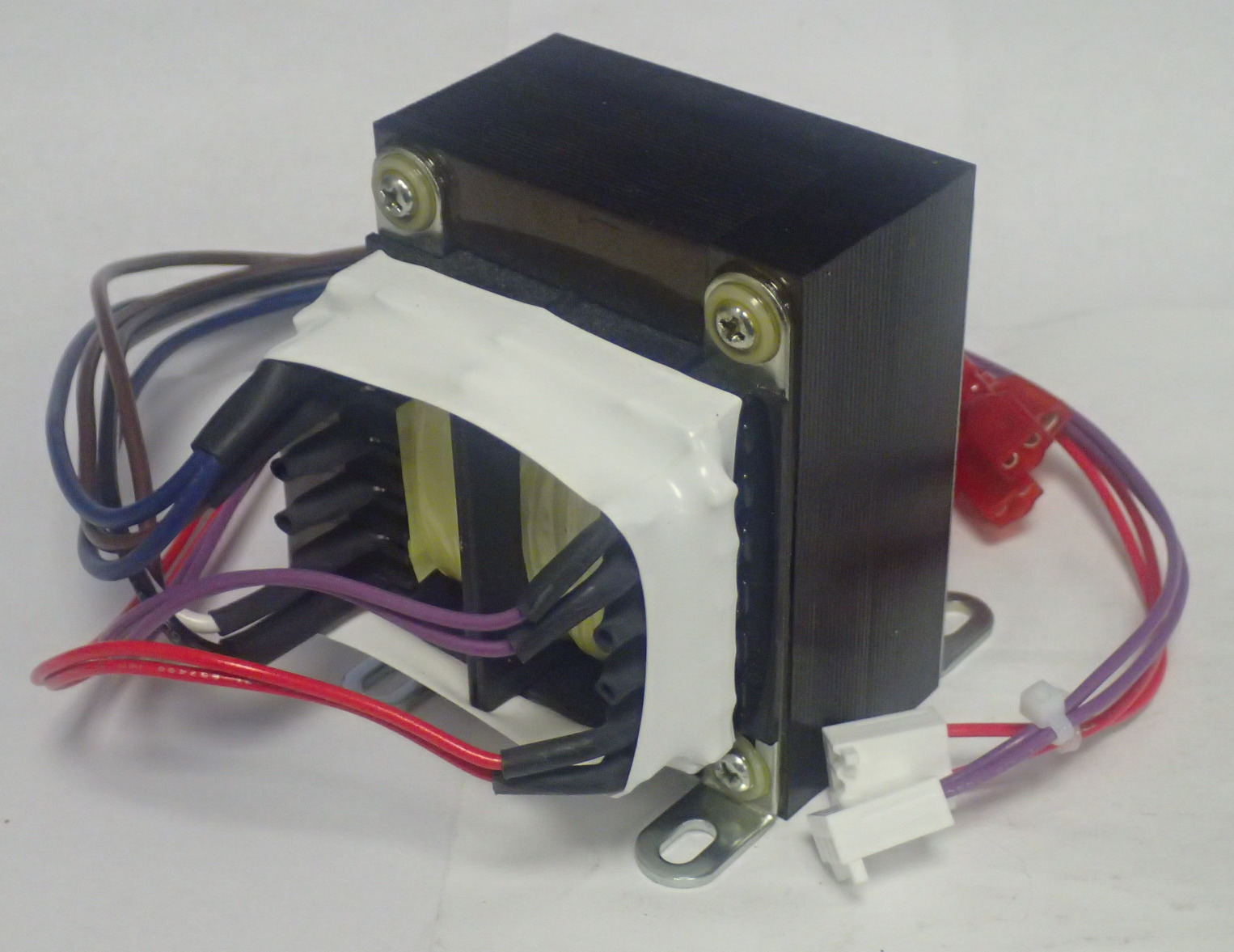

Triad Magnetics VPS56-2300 chassis-mount power transformer
SKU200531 — low stock
$30.00CAD
By Triad Magnetics
Manufacturer: Triad Magnetics Model: VPS56-2300 Type: Laminated-core power transformer Power Rating: 130 VA Primary Input: 115 VAC or 230 VAC 50/60 Hz Secondary Output: 56 VAC center-tapped at 2.3 A (series) 28 VAC at 4.6 A (parallel) Isolation Voltage: 4000 VAC between primary and secondary Weight:…
Description
Manufacturer: Triad Magnetics
Model: VPS56-2300
Type: Laminated-core power transformer
Power Rating: 130 VA
Primary Input:
115 VAC or 230 VAC
50/60 Hz
Secondary Output:
56 VAC center-tapped at 2.3 A (series)
28 VAC at 4.6 A (parallel)
Isolation Voltage: 4000 VAC between primary and secondary
Weight: approximately 4.2 lb
