Texas Instruments LM5085 EVM Kit, BNIB / NOS

Description

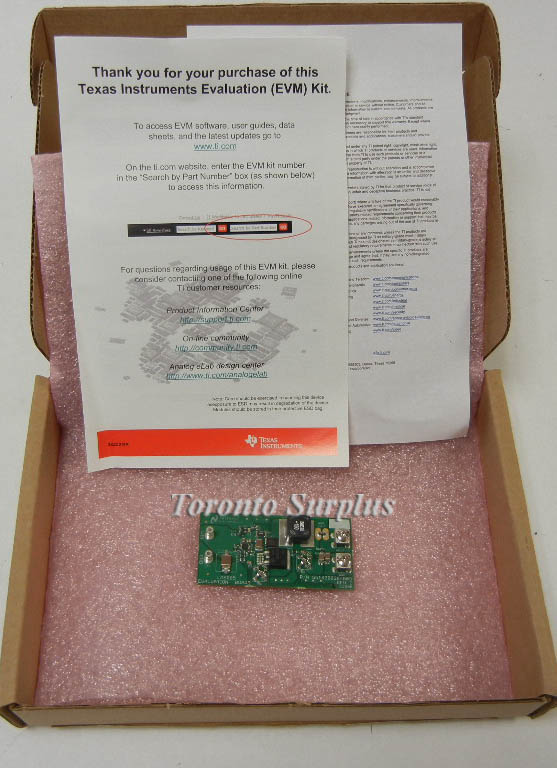

<p>&#160;The LM5085 Evaluation board provides the design engineer with a full functional buck regulator, employing the LM5085 PFET switching controller wich uses the constant on time ( COT ) operating principle. This evaluation board provides a 5 V output over an input range of 5.5 v to 55V The circuit delivers load currents to 4.5A, with current limit set at ≊7.6A</p><p>THE BOARDS SPECIFICATION ARE AS FOLLOWS:</p><ul><li>Input <span style="font-size: small;">Voltage:</span><span style="font-size: small;"> 505V too 55V, 60V Maximum</span></li><li>Output Voltage: 5V</li><li>Maximum load current: 4.5A for (V <span style="font-size: xx-small;">IN</span> 8V</li><li>Minimum load current: 0A</li><li>Measured Efficiency: 97.2% (V <span style="font-size: xx-small;">IN</span>= 5.5V, 1 <span style="font-size: xx-small;">OUT</span>=0.6Amps )</li><li>Nominal Switching Frequency: 300kHz</li><li>Size: 3.1 in x 1.5 in x 0.78 in</li></ul><p>The above specs are for a "REV&#160;C" / The one pictured above is a "REV&#160;D"&#160;</p><div data-canvas-width="8.078170148134232" data-font-name="g_font_10_0" data-angle="0" style="font-size: 13.8562px; font-family: sans-serif; left: 448.248px; top: 338.23px; transform: rotate(0deg) scale(0.827116, 1); transform-origin: 0% 0% 0px;" dir="ltr">&#160;</div><p>&#160;</p>
