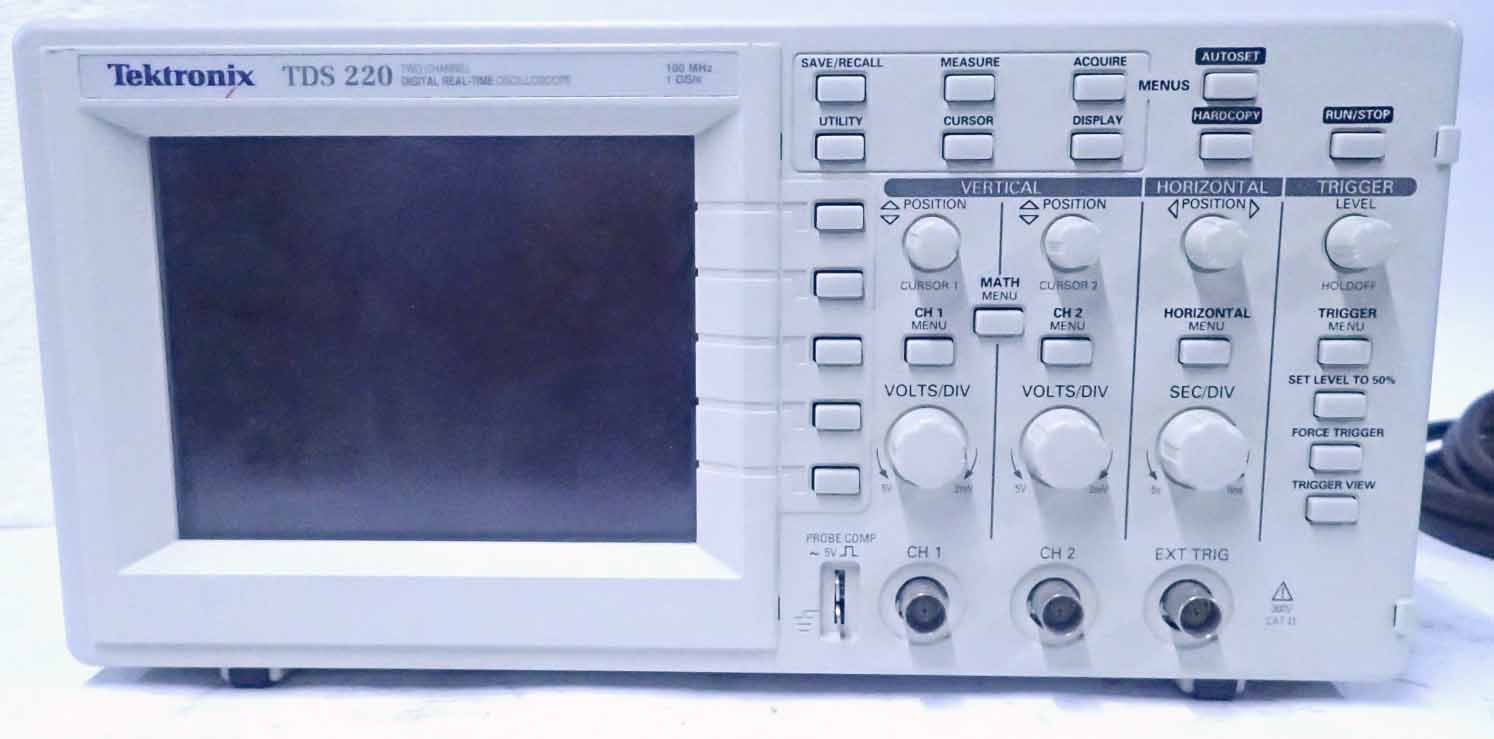

Tektronix TDS220 / TDS 220 - 100 MHz Digital Real-Time Oscilloscope, 2 Channel with TDS2CM GPIB
sku56711 — low stock
10% Store Wide!Save $99.50
$895.50CAD$995.00
By Tektronix
The TDS200 Oscilloscopes have quickly become the benchmark for low-cost oscilloscopes. Offering an unbeatable combination of performance, reliability and versatility, the TDS200 Series offers breakthrough digital and real-time advantages at affordable oscilloscope prices. <ul style…
Description
The TDS200 Oscilloscopes have quickly become the benchmark for low-cost oscilloscopes. Offering an unbeatable combination of performance, reliability and versatility, the TDS200 Series offers breakthrough digital and real-time advantages at affordable oscilloscope prices.
<ul style=list-style-position: outside; text-align: left;">FEATURES & BENEFITS: <li>60 MHz or 100 MHz with 1 GS/s Sample Rate on all Channels <li>Dual Timebase <li>Automatic Measurements <li>Multi-language User Interface <li>Autoset <li>Waveform and Setup Memories <li>Backlit Display <li>Acquisition Modes: Sample Average Peak Detect <li>Time/Division Range - 5 ns to 5 s/div<

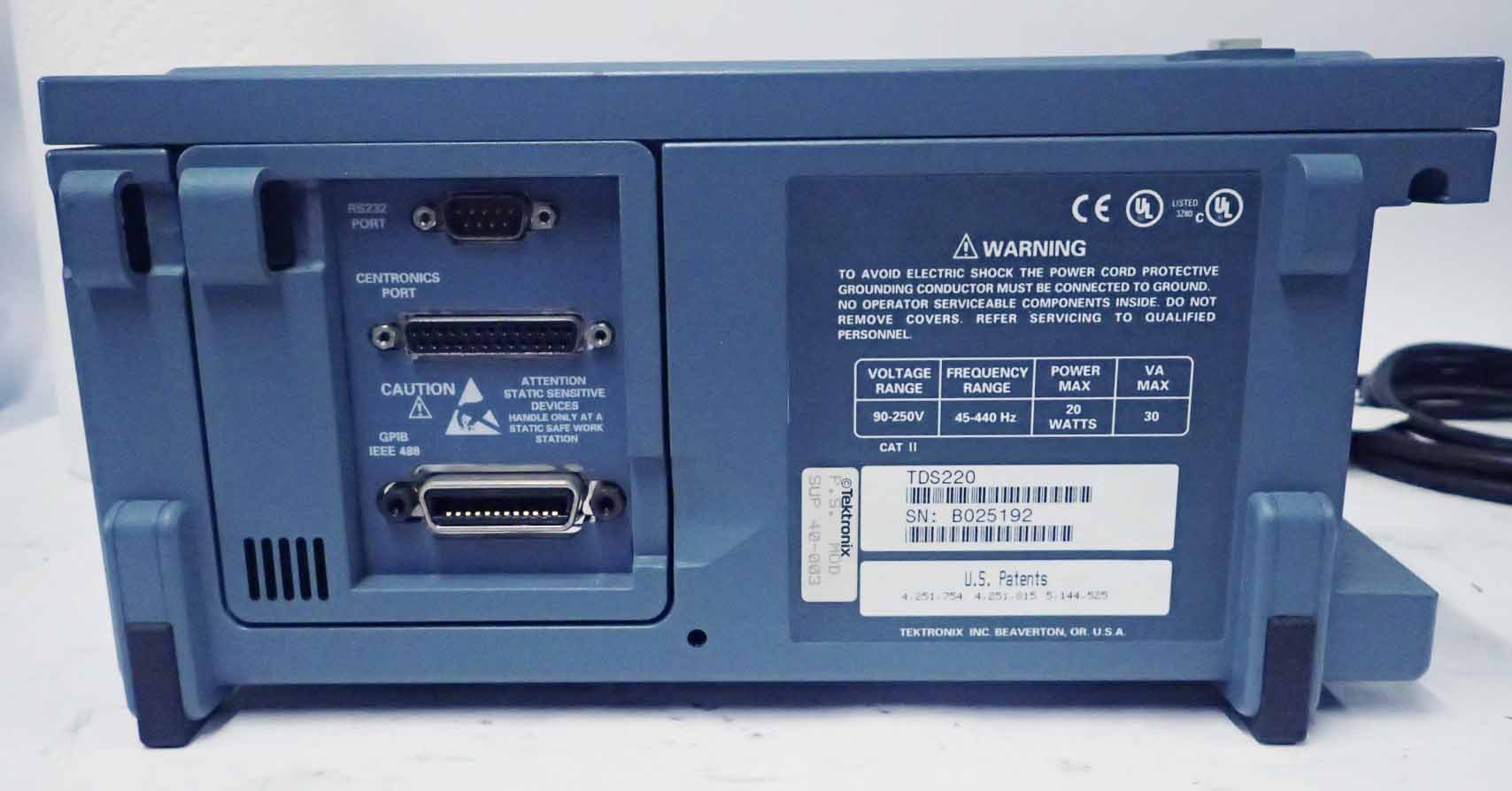

OPTION TDS2CM: COMMUNICATIONS EXTENSION MODULE:
FEATURES: <li>Parallel Port - Centronics type <li>RS-232 Programmability - Full talk/listen modes. control of all modes settings and measurements. Baud Rate up to 19 200. 9-Pin DTE <li>GPIB Programmability - Full talk.listen modes. Control of all modes settings and measurements (IEE Std. 488-1987/GPIB)</li></ul>Rackmount RM200 Sold separately "
<ul style=list-style-position: outside; text-align: left;">FEATURES & BENEFITS: <li>60 MHz or 100 MHz with 1 GS/s Sample Rate on all Channels <li>Dual Timebase <li>Automatic Measurements <li>Multi-language User Interface <li>Autoset <li>Waveform and Setup Memories <li>Backlit Display <li>Acquisition Modes: Sample Average Peak Detect <li>Time/Division Range - 5 ns to 5 s/div<
OPTION TDS2CM: COMMUNICATIONS EXTENSION MODULE:
FEATURES: <li>Parallel Port - Centronics type <li>RS-232 Programmability - Full talk/listen modes. control of all modes settings and measurements. Baud Rate up to 19 200. 9-Pin DTE <li>GPIB Programmability - Full talk.listen modes. Control of all modes settings and measurements (IEE Std. 488-1987/GPIB)</li></ul>Rackmount RM200 Sold separately "
