Tektronix AM6565/U / 7A15 General-Purpose Amplifier Plug-In Module, 80 MHz AS-IS
sku9203 — low stock
$80.00CAD
By Tektronix
<p>The AM-6565/U is the military version of thie 7A15 amplifier. The 7A15 is a single channel, 80 MHz general-purpose vertical amplifier for 7000-series scopes. Bandwidth: 0 – 80 MHz (DC), 1 Hz – 80 MHz (AC) Deflection: 5 mV/Div to 10 V/Div in 1–2–5 sequence Input Impedance: 1 MΩ Features</p…
Description

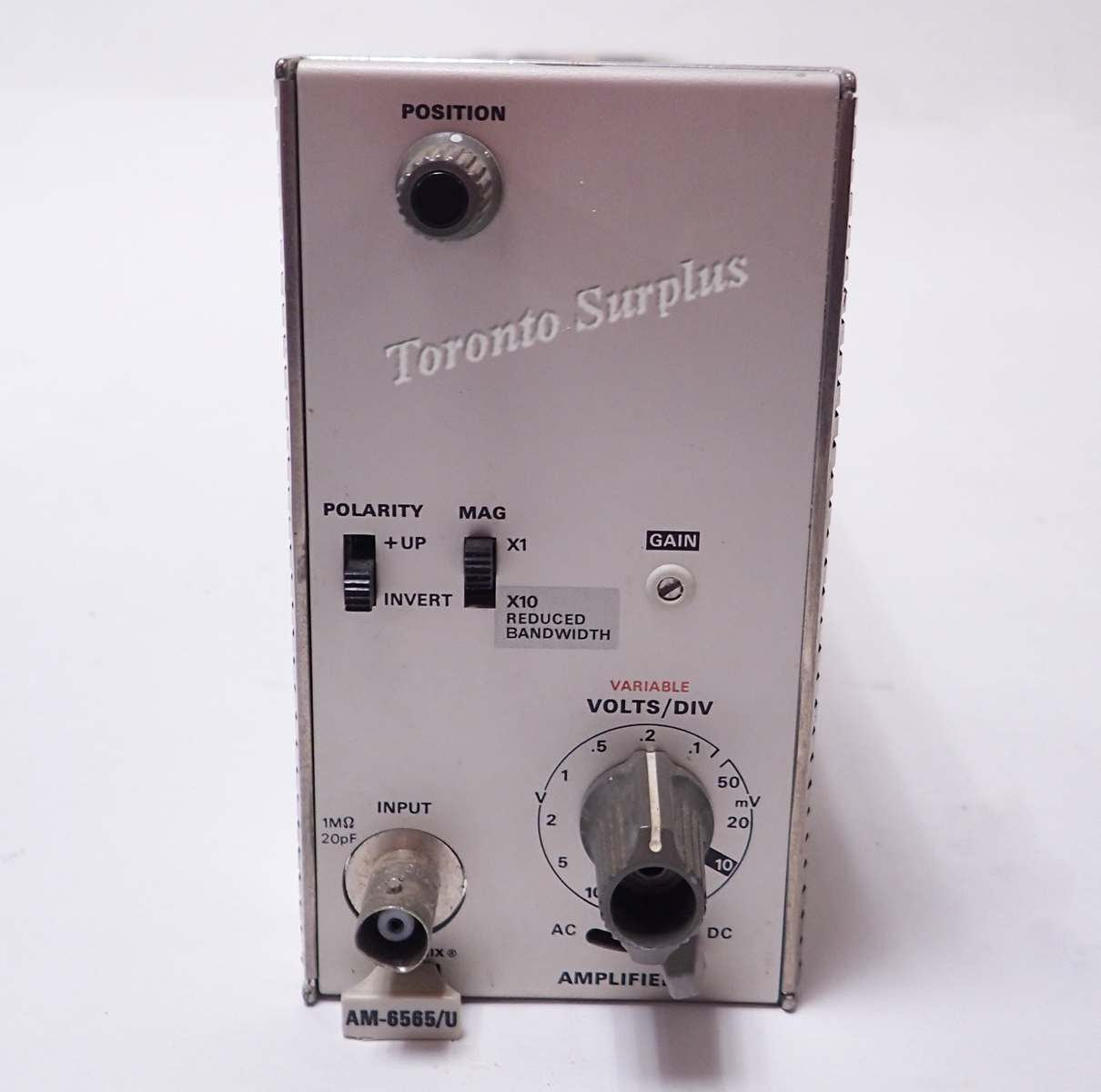

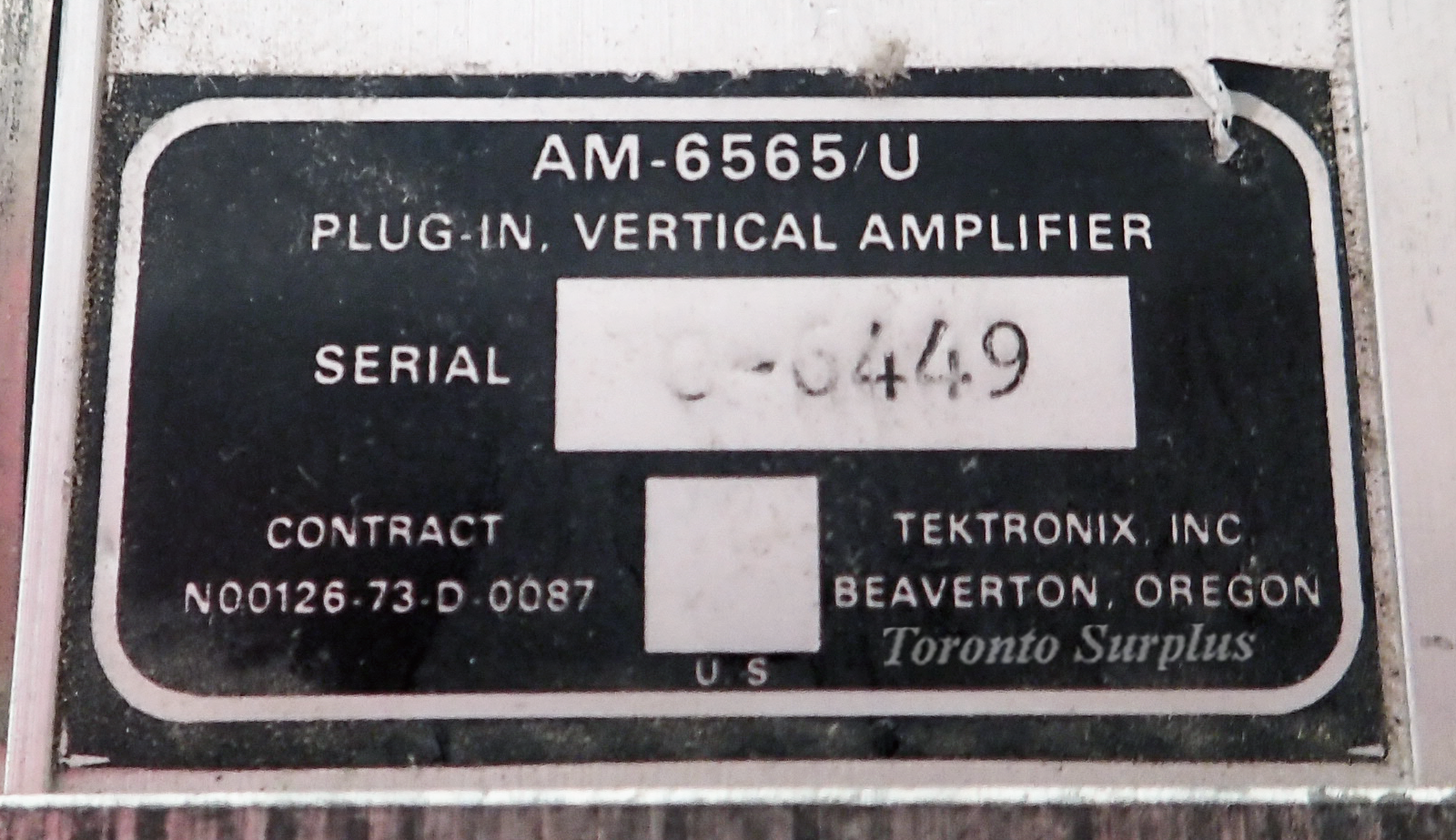

<p>The AM-6565/U is the military version of thie 7A15 amplifier. The 7A15 is a single channel, 80 MHz general-purpose vertical amplifier for 7000-series scopes.
Bandwidth: 0 – 80 MHz (DC), 1 Hz – 80 MHz (AC)
Deflection: 5 mV/Div to 10 V/Div in 1–2–5 sequence
Input Impedance: 1 MΩ
Features</p><ul><li>×10 switch to extend sensitivity to 0.5 mV/Div (at 10 MHz bandwidth)</li><li>Invert switch</li><li>Probe ×10/Identify sensing input</li></ul>
