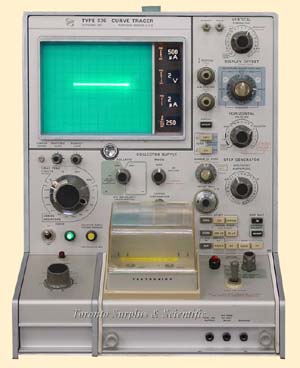

Tektronix 576 Curve Tracer with Standard Test Fixture 390-0098-00 (In Stock)
sku54471 — low stock
$2,700.00CAD
By Tektronix
<p>See our plug-ins page for additional accessories The 576 is an excellent general purpose curve tracer system that performs well in applications where high current testing is required. With the Standard Test Fixture, the collector supply of the 576 delivers up to 220 watts peak to the device u…
Description
<p>See our plug-ins page for additional accessories
The 576 is an excellent general purpose curve tracer system that performs well in applications where high current testing is required.
With the Standard Test Fixture, the collector supply of the 576 delivers up to 220 watts peak to the device under test. The step generator can deliver up to two amps in both its current and voltage modes of operation. It also has an alphanumeric indicator that provides readout of vertical and horizontal deflection factors, step amplitude, and Beta/div or 9m/div, as well as offering Calibrated Display Offset.</p><ul style="" text-align:="">FEATURES:
<li>Tests Two- and Three-Terminal Discrete Semiconductors</li><li>Power Capability up to 220 Watts</li><li>Convenient Scale-Factor Readout</li></ul><p>Additional specifications upon request"</p>
