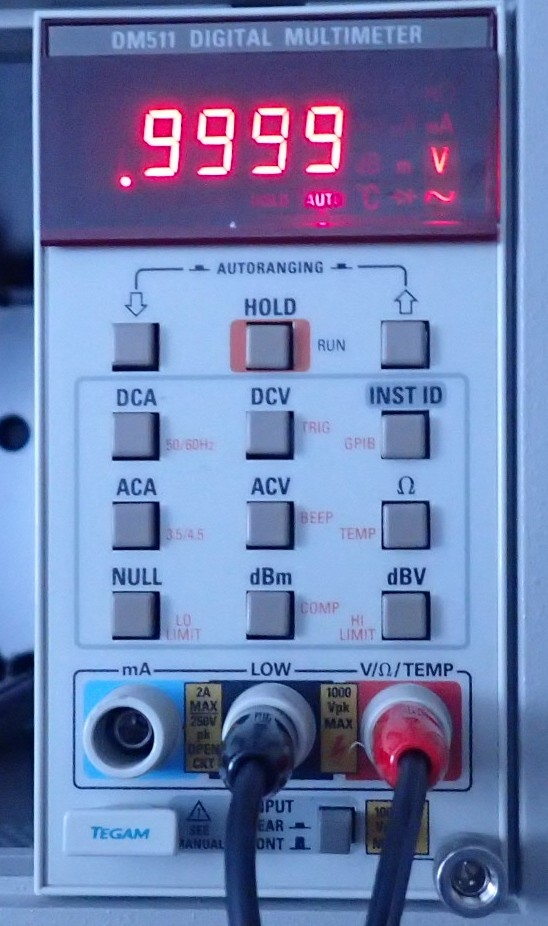

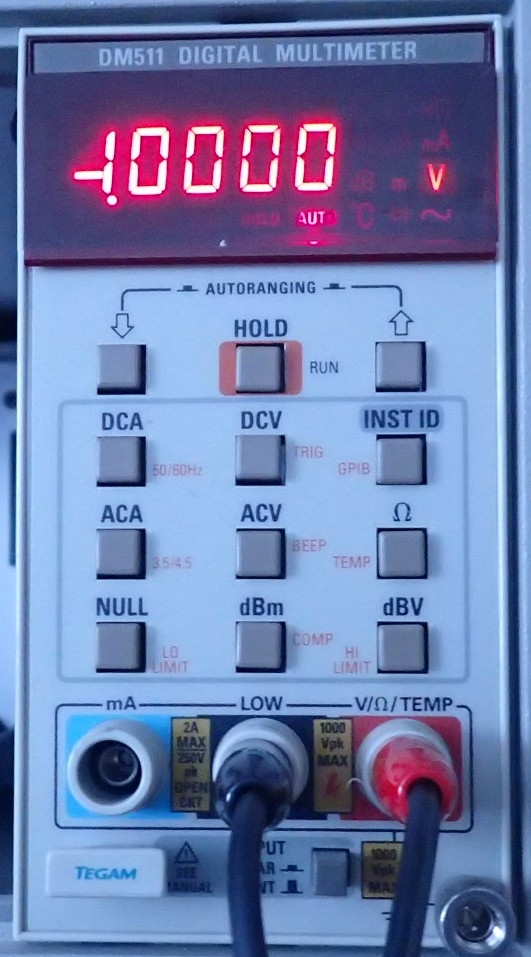

Tegam DM511 Digital Multimeter Plug-In for Tektronix TM500 series

Description

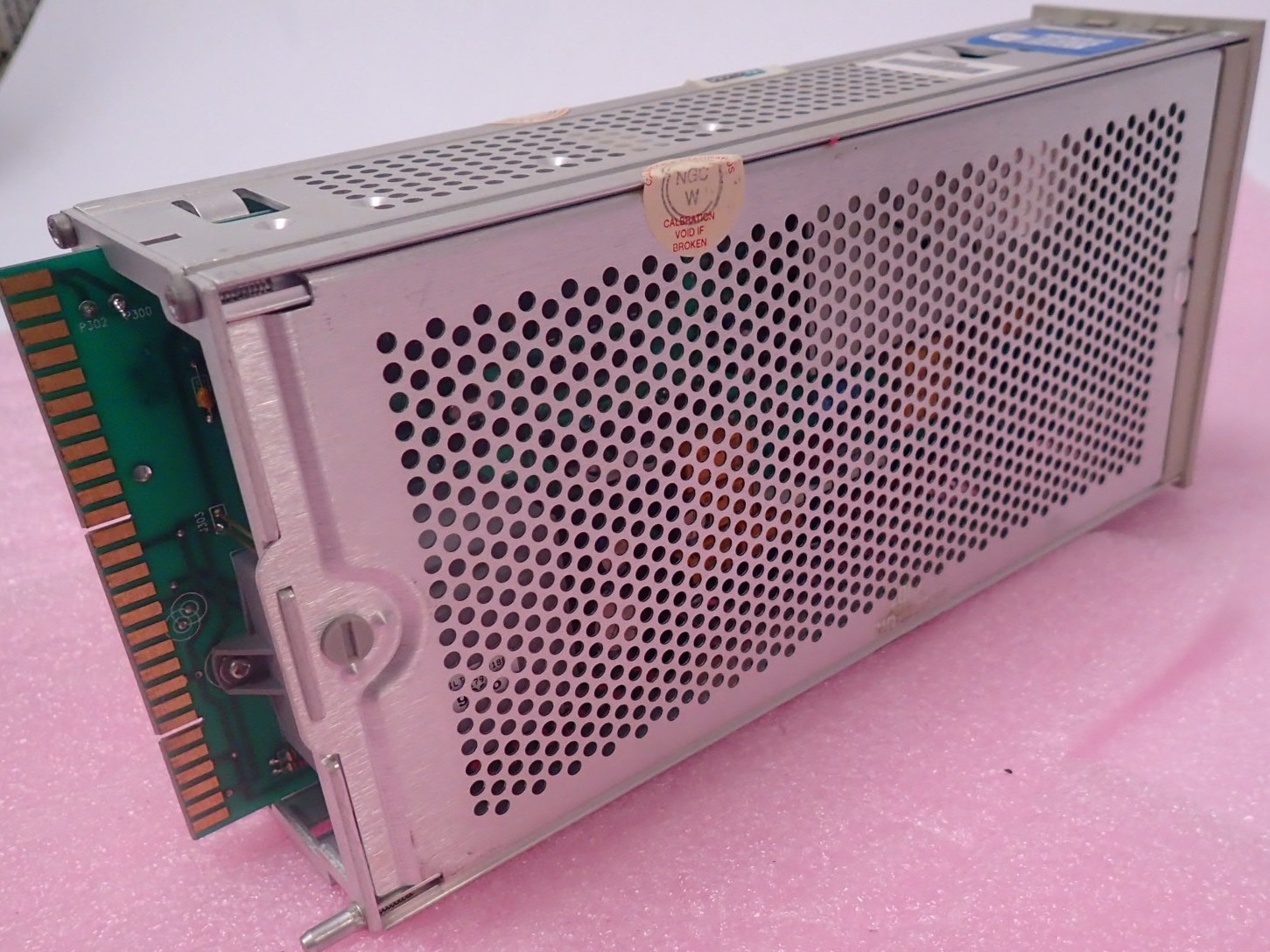

A 4½‑digit autoranging digital multimeter plug‑in for the Tektronix TM500 modular test system. It slides into a TM500 mainframe and draws power from it. According to TekWiki’s specification summary: - DC Voltage: 200 mV → 200 V (decade steps), plus 1 kV top range - AC Voltage: 200 mV → 200 V (decade steps), 500 V top range - DC Current: 200 µA → 2 A - AC Current: 200 µA → 2 A - Resistance: 200 Ω → 20 MΩ - Temperature: −62 °C → +240 °C (requires P6602 probe)

Specifications
