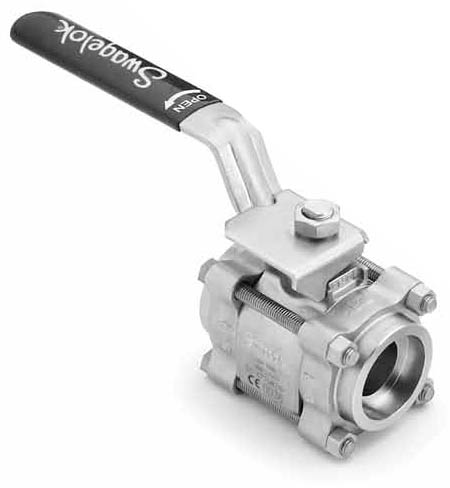

Swagelok SS-65ESW16P-ID, SS 3-Piece 60 Series Ball Valve BNIB / NOS rm

Description

<h3 class="icon-head head-products">Swagelok SS-65ESW16P-ID, SS 3-Piece 60 Series Ball Valve BNIB / NOS</h3><p>Flow Pattern: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; Straight (2-way)
Size: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 1 in. Nominal - 65 Series
Valve Material: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; Stainless Steel
End Connection 1 Size: &#160; &#160; &#160; &#160; &#160; &#160; &#160; 1 in
End Connection 1 Type: &#160; &#160; &#160; &#160; &#160; &#160;&#160; Tube socket weld
End Connection 2 Size: &#160; &#160; &#160; &#160; &#160; &#160; &#160; 1 in
End Connection 2 Type: &#160; &#160; &#160; &#160; &#160; &#160;&#160; Tube socket weld
Handle Color: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; Black
Handle Style: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; Lever
Ball/Stem Material:&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; Stainless Steel
Fastener Material&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; 316 Stainless Steel
Flange Seal Material: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; Ethylene Propylene
Max Temperature Pressure Rating: &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 250°F @ 250 PSIG /121°C @ 17.2 BAR
Room Temperature Pressure Rating: &#160; &#160; &#160; &#160; &#160;&#160; 2500 PSIG @ 100°F /172 @ BAR 37°C</p>
