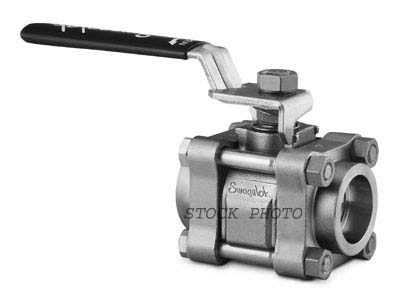

Swagelok S-68TSW32P 4-Bolt Carbon Steel 3-Piece 60 Series Ball Valve BRAND NEW / NOS rm
sku68452 — low stock
Request a Quote
By Swagelok
<p>Swagelok S-68TSW32P 4-Bolt Carbon Steel 3-Piece 60 Series Ball Valve BRAND NEW Reinforced PTFE Seats with 2 in. Pipe Socket Weld Flow Pattern: Straight (2-way) Service Class: General Size: 2 in. Nominal - 68 Series Valve Material:Carbon Steel End Connection 1: Size 2 in End C…
Description
<p>Swagelok S-68TSW32P 4-Bolt Carbon Steel 3-Piece 60 Series Ball Valve BRAND NEW
Reinforced PTFE Seats with 2 in. Pipe Socket Weld
Flow Pattern: Straight (2-way)
Service Class: General
Size: 2 in. Nominal - 68 Series
Valve Material:Carbon Steel
End Connection 1: Size 2 in
End Connection 1 Type: Pipe socket weld
End Connection 2 Size: 2 in
End Connection 2 Type: Pipe socket weld
Handle Color: Black
Handle Style: Lever
Ball/Stem Material: Stainless Steel
Cleaning: Swagelok® Standard cleaning SC-10
Fastener Material: Carbon Steel
Flange Seal Material: Fluorocarbon FKM
Lubricant: Dow111 and WL8
Packing: Reinforced PTFE
Seat Material: Reinforced PTFE
Seat Spring Material: 316 Stainless Steel
Stem Bearing Material: Alloy X750
Testing: Testing according to WS-22
Max Temperature Pressure Rating: 450°F @ 100 PSIG /232°C @ 6.8 BAR
Room Temperature Pressure Rating: 2200 PSIG @ 100°F /151 @ BAR 37°C</p>
Reinforced PTFE Seats with 2 in. Pipe Socket Weld
Flow Pattern: Straight (2-way)
Service Class: General
Size: 2 in. Nominal - 68 Series
Valve Material:Carbon Steel
End Connection 1: Size 2 in
End Connection 1 Type: Pipe socket weld
End Connection 2 Size: 2 in
End Connection 2 Type: Pipe socket weld
Handle Color: Black
Handle Style: Lever
Ball/Stem Material: Stainless Steel
Cleaning: Swagelok® Standard cleaning SC-10
Fastener Material: Carbon Steel
Flange Seal Material: Fluorocarbon FKM
Lubricant: Dow111 and WL8
Packing: Reinforced PTFE
Seat Material: Reinforced PTFE
Seat Spring Material: 316 Stainless Steel
Stem Bearing Material: Alloy X750
Testing: Testing according to WS-22
Max Temperature Pressure Rating: 450°F @ 100 PSIG /232°C @ 6.8 BAR
Room Temperature Pressure Rating: 2200 PSIG @ 100°F /151 @ BAR 37°C</p>
