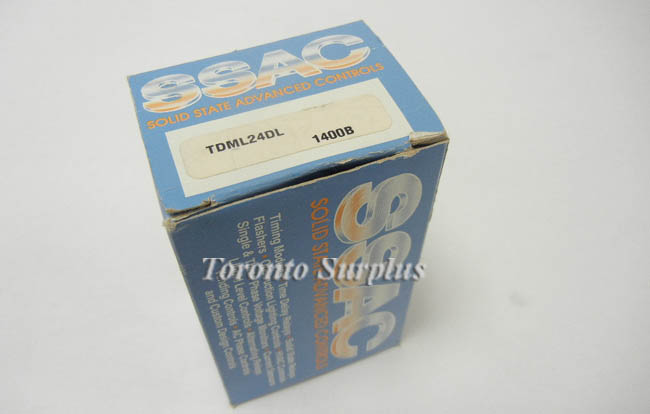

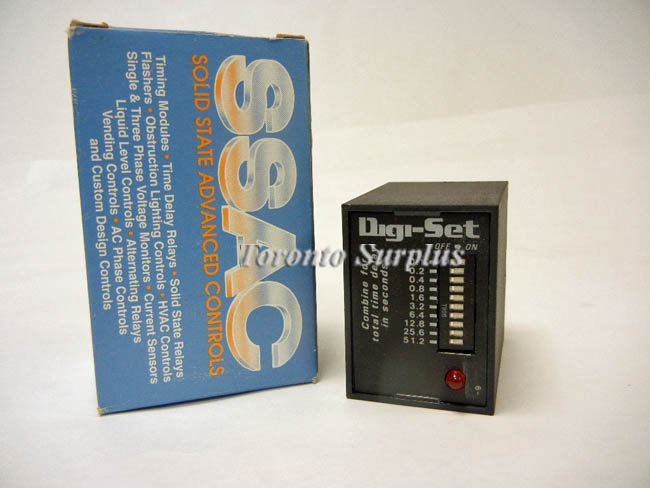

SSAC TDM24DL 1400B / TDM24DL1400B Time Delay Relay 24VDC 8-Pin BNIB / NOS
sku104981 — low stock
$50.00CAD
By SSAC
<ul><li>Switch Settable Time Delay</li><li>Three Time Ranges from 0.1s-10,230s</li><li>±0.1% Repeat Accuracy</li><li>±2% Setting Accuracy</li><li>10A, DPDT Output Contacts</li></ul><p>The TDM Series is a delay‑on‑make timer that combines accurate digital circuitry with isolated, DPDT rel…
Description
<ul><li>Switch Settable Time Delay</li><li>Three Time Ranges from 0.1s-10,230s</li><li>&#177;0.1% Repeat Accuracy</li><li>&#177;2% Setting Accuracy</li><li>10A, DPDT Output Contacts</li></ul><p>The TDM Series is a delay‑on‑make timer that combines accurate digital circuitry with isolated, DPDT relay contacts in an industry standard 8‑pin plug‑in package. DIP switch adjustment allows precise selection of the time delay over the full time delay range. The TDM Series is the product of choice for custom control panel and OEM designers.
Operation (Delay‑on‑Make): Upon application of input voltage, the time delay begins. The output is de‑energized before and during the time delay. At the end of the time delay, the output relay energizes and remains energized until input voltage is removed. Reset: Removing input voltage resets the time delay and output.</p><ul><li>Mode of Operation : Time Delay</li><li>Timing Range : 0.1 Sec ~ 102.3 Seconds</li><li>Mounting type : Plug-In</li><li>Contact Rating : 10Amps</li><li>Contacts : DPDT</li><li>Terminaton : 8 Pin circular</li><li>Status IND: LED</li><li>Adjustment Type : Dip Switch</li><li>Max Time : 102.3 Seconds</li><li>Coil Voltage 24VDC</li><li> </li></ul><p> </p>
