Home›Products›Electronic Components & Parts›Switches & Keypads›SMC PFM711S-N7-F-WS / PFM711SN7FWS Digital Flow Switch BRAND NEW / NOS
SMC PFM711S-N7-F-WS / PFM711SN7FWS Digital Flow Switch BRAND NEW / NOS
sku78482 — low stock
Request a Quote
By SMC
<p>SMC PFM711S-N7-F-WS / PFM711SN7FWS Digital Flow Switch BRAND NEW / NOS</p><p>Benefits:</p><ul><li>Compact Size</li><li>Light Weight (558g)</li><li>Piping space can be reduced - mountable in a narrow location since the straight piping length is not required</li><li>3 Digit LED Display</li></u…
Description
<p>SMC PFM711S-N7-F-WS / PFM711SN7FWS Digital Flow Switch BRAND NEW / NOS</p><p>Benefits:</p><ul><li>Compact Size</li><li>Light Weight (558g)</li><li>Piping space can be reduced - mountable in a narrow location since the straight piping length is not required</li><li>3 Digit LED Display</li></ul><p>
Main Functions:
Selection of fluid:                       Air, Nitrogen, Argon, Carbon Dioxide can be selected using the buttons
Selection of Indication Unit:       User can select between ANR and Ne/min for each fluid.
External Input:                           Can be selected from accumulated value external reset, auto shift and auto shift zero
Indication Resolution:                Minimum setting unit can be selected</p><p>Specifications:</p><p>Power Supply Voltage:               24VDC + 10%
Current Consumption:               55 mA or less
Operating Pressure Range:     -70kPa to 750 kPa
Switch Output:                           NPN or PNP open collector
Flow Rate:                                 2-100 L/Min
Max Pressure:                           0.75 MPa
Port Size                                    N7= 1/4 One-touch fitting

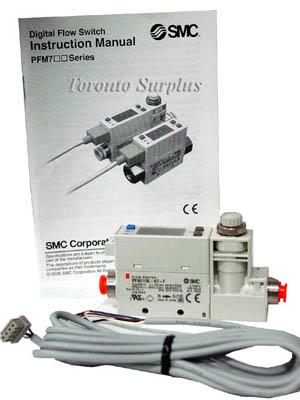

</p><p>*Comes as pictured with interconnect cable and Instruction manual</p><p> </p><p> </p>
