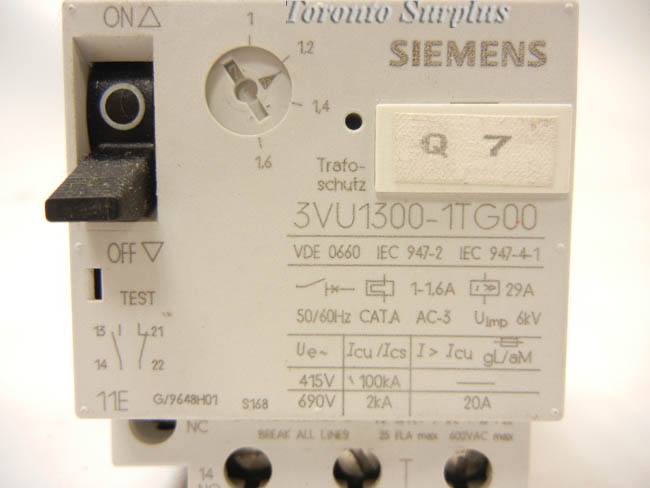

Siemens 3VU1300-1TG00 1-1.6Amp 50/60HZ 3 Pole 3 Phase Circuit Breaker
sku105362 — low stock
$34.99CAD
By Siemens
<p> The 3VU13 is suitable for use in fuseless motor feeders upto 11KW/22KW (25A/63A) respectively. 3VU motor protection circuit breakers are used for protection of motor, against overload, single phasing and short-circuit faults</p><p> </p><p>Number of Poles : 3</p><p>Max Rated Current:…
Description
<p> The 3VU13 is suitable for use in fuseless motor feeders upto 11KW/22KW (25A/63A) respectively. 3VU motor protection circuit breakers are used for protection of motor, against overload, single phasing and short-circuit faults</p><p> </p><p>Number of Poles : 3</p><p>Max Rated Current:  Motor Protection - 25A,  Distribution - 25A.</p><p>Permissable Ambient Temperature -20°...+55° (At full rated current )  -50°...+80° ( In storage ) </p><p>Rated Operational Voltage: 690 V</p><p>Rated frequency: 50/6Hz</p><p>Rated Insulation Voltage: 750V</p><p>Rated Impulse Withstand Voltage: 6 kV</p><p> </p><p> </p>
