Siecor OT-100 / OT-10055 Optical Power Meter with ST Connectors
sku62081 — low stock
$375.00CAD
By Siecor
<p>Siecor OT-100 Optical Power Meter</p><p>The Siecor OT-100 is a compact, lightweight optical tester that fits into the palm of your hand. This user-friendly unit can be used as an LED light source, as well as a power meter. The OT-100 includes a transmitter, receiver, optical ports, receptacle …
Description
<p>Siecor OT-100 Optical Power Meter</p><p>The Siecor OT-100 is a compact, lightweight optical tester that fits into the palm of your hand. This user-friendly unit can be used as an LED light source, as well as a power meter.
The OT-100 includes a transmitter, receiver, optical ports, receptacle head, power adapter, back-lit digital display and manual.
The OT-100 has multiple applications: attenuation testing using the insertion loss method, continuity checking, and troubleshooting.</p><ul style="" text-align:="">SPECIFICATIONS:
Transmitter
<li>Wavelength: 865 nm +25 nm/-20 nm</li><li>Spectral Width (FWHM): <50 nm</li><li>Output Power: >:-25 dBm
Receiver</li><li>Measurement Range: +1- t o-60 dBm (10 mW to 1 nW)</li><li>Resolution: 0.01 dB</li></ul><p>OT-100 = Unit
55 = ST Connectors</p><p>You will receive the following:</p><p>1 x OT-100 Optical Tester
2 x ST Connectors
1 x Soft Pouch for OT-100
1 x AC Adapter for OT-100
8 x Alcohol Wipes
1 x Small Storage Box
1 x Operation Manual

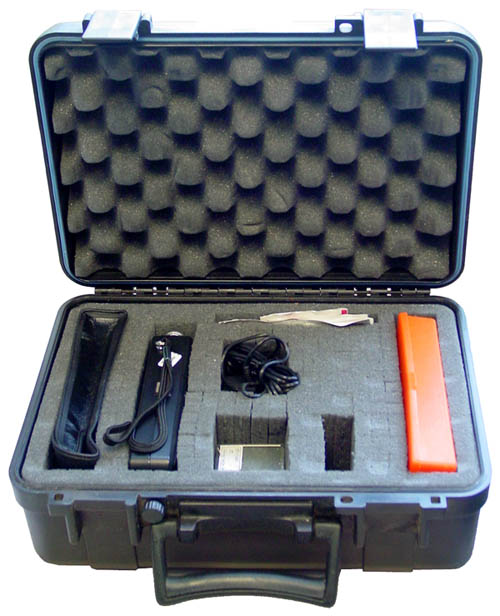

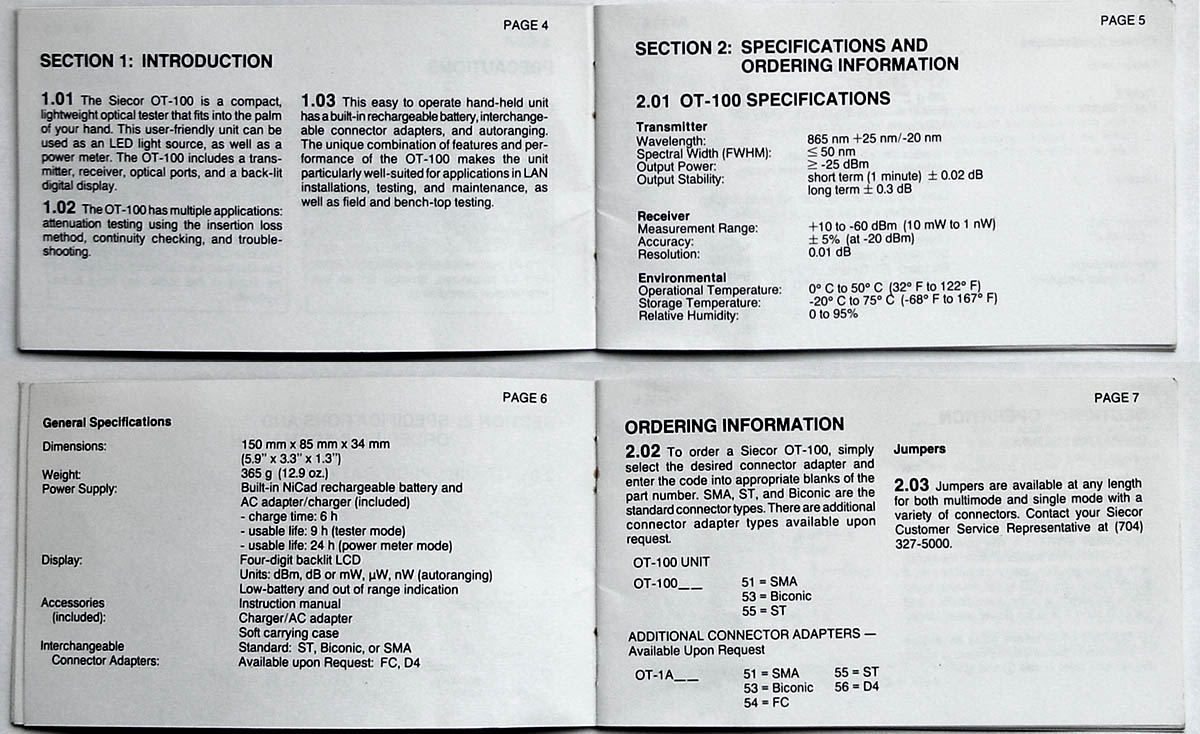

1 x 2HH-TCASE Hard Shell Pressurized Transit Case</p><p>Click photo for additional specifications</p>
The OT-100 includes a transmitter, receiver, optical ports, receptacle head, power adapter, back-lit digital display and manual.
The OT-100 has multiple applications: attenuation testing using the insertion loss method, continuity checking, and troubleshooting.</p><ul style="" text-align:="">SPECIFICATIONS:
Transmitter
<li>Wavelength: 865 nm +25 nm/-20 nm</li><li>Spectral Width (FWHM): <50 nm</li><li>Output Power: >:-25 dBm
Receiver</li><li>Measurement Range: +1- t o-60 dBm (10 mW to 1 nW)</li><li>Resolution: 0.01 dB</li></ul><p>OT-100 = Unit
55 = ST Connectors</p><p>You will receive the following:</p><p>1 x OT-100 Optical Tester
2 x ST Connectors
1 x Soft Pouch for OT-100
1 x AC Adapter for OT-100
8 x Alcohol Wipes
1 x Small Storage Box
1 x Operation Manual
1 x 2HH-TCASE Hard Shell Pressurized Transit Case</p><p>Click photo for additional specifications</p>
