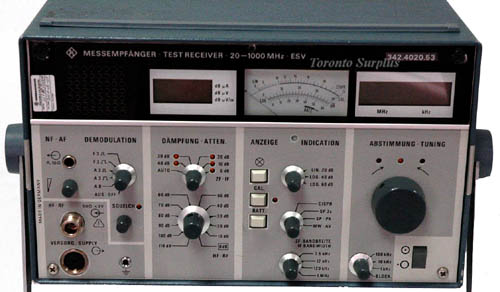

Rohde & Schwarz ESV / 342.4020.53 Test Receiver 20 MHz - 1 GHz
sku66822 — low stock
$2,950.00CAD
By Rohde & Schwarz
<p>Rohde & Schwarz Model ESV; 342.4020.53</p><p>Main specifications:</p><ul><li>Frequency Range: 20 MHz to 1000 MHz</li><li>Resolution: 1 kHz ..... 10 kHz ..... 100 kHz - selectable -</li><li>Display: 6-digit LCD with backlight</li><li>Input: 50 Ohms N female, max. 7 Volts</li><li>Image frequency re…
Description
<p>Rohde & Schwarz Model ESV; 342.4020.53</p><p>Main specifications:</p><ul><li>Frequency Range: 20 MHz to 1000 MHz</li><li>Resolution: 1 kHz ..... 10 kHz ..... 100 kHz - selectable -</li><li>Display: 6-digit LCD with backlight</li><li>Input: 50 Ohms N female, max. 7 Volts</li><li>Image frequency rejection: 100 dB</li><li>IF rejection: 100 dB</li><li>Intercept point: +50 dB</li><li>Double Superheterodyne construction:<ul><li>1st IF= 810.7 MHz</li><li>2nd IF= 10.7 MHz</li><li>IF bandwidth selectable: 7.5 kHz, 12 kHz, 120 kHz, 1 MHz</li></ul></li><li><p>Measuring level voltage range: -10 to +137 dBµV</p></li><li><p>Digital LCD display for level</p></li><li>IF attenuator: 0, 10, 20, 30, 40 dB, AUTO</li><li>RF attenuator: 0 dB to 110 dB in 10 dB steps</li><li>Types of demodulators: A0, A3, F3</li><li>Special connections:                                                                  <ul><li>Antenna supply and coding: 12 pin Tuchel female</li><li>AF signal: up to 3.5 V, 10 Ohms jack 34</li><li>IF 10.7 MHz</li><li>AM demodulator, FM demodulator</li><li>Recorder outputs with 50 pins AMPHENOL socket</li><li>Reference frequency input: 5 MHz....10 MHz</li></ul></li><li>Internal AUTO CALIBRATION pushbutton</li><li>LIN LOG measuring instrument</li><li>Overload indication</li></ul>
