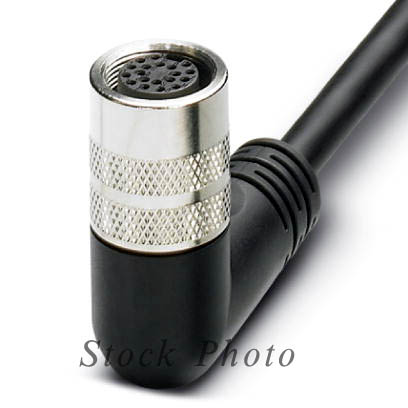

Phoenix Contact 16 93 74 6 / 1693746 SAC-14P- 5,0-PUR/M16FR M16 Master Cable Connection BRAND NEW / NOS

Description

<p>Phoenix Contact 16 93 74 6 / 1693746 SAC-14P- 5,0-PUR/M16FR M16 Master Cable Connection BRAND NEW / NOS</p><p>Rated voltage &#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160; 125 V AC, 150 V DC
Number of positions &#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 14
Number of slots &#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160;&#160; 10
Degree of protection &#160;&#160;&#160;&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; IP67
Ambient temperature (operation):&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; -25 °C ... 90 °C
(Male connector / female connector)

Connection method: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160;&#160;&#160; M16 plug connection
Length of cable: &#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; 5 m
Cable type:&#160;&#160;&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160;&#160;&#160; Master cable suitable for flexible cable conduit
Signal line cross section: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160;&#160;&#160; 10x 0.34 mm²
AWG signal line: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160;&#160; 22
Conductor structure signal line: &#160; &#160; &#160; &#160;&#160; &#160;&#160;&#160; 42x 0.10 mm
Power supply cross section: &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160;&#160;&#160; 2x 0.75 mm²
AWG power supply: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160;&#160; 18
Conductor structure, voltage supply:&#160; &#160;&#160;&#160; 96x 0.10 mm
External diameter: &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160;&#160;&#160; 9.1 mm
Max. bending cycles &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160;&#160;&#160; 1500000
Bending radius &#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 100 mm
Traversing path &#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; 2 m
Traversing rate &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 2 m/s
Ambient temperature (operation): &#160; &#160; &#160;&#160;&#160; -40 °C ... 90 °C (for fixed installation),
&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; -5 °C ... 80 °C (for flexible installation)</p>
