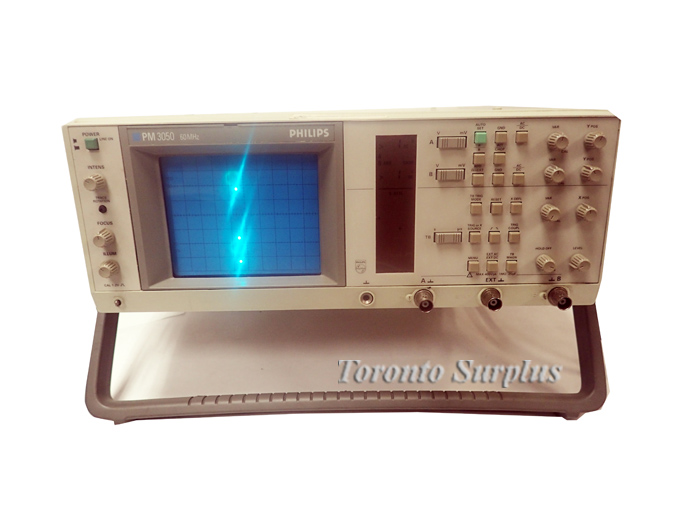

Philips PM 3050 / PM3050 Analog Oscilloscope 60MHz, Dual Channel
sku118231 — low stock
$375.00CAD
By Philips
<p>PM 3050 60MHz 2 Channels Single Time Base </p><p>Witgh all the standards facilities of the Smart Scope series this basic instrument provides comprehensive trigger facilities like TV line, TV frame. Peak - Peak Auot and Dc Coupling in addition to trigger hold off. Time base speeds to 5 nsec per di…
Description
<p>PM 3050 60MHz 2 Channels Single Time Base </p><p>Witgh all the standards facilities of the Smart Scope series this basic instrument provides comprehensive trigger facilities like TV line, TV frame. Peak - Peak Auot and Dc Coupling in addition to trigger hold off. Time base speeds to 5 nsec per division are standard as well as x 1 and x 10probe identification. X deflection via either channel is possible.</p><ul><li>Frequency Response: DC...>60MHz  -3dB ( 0....35°C) </li><li>Rise Time: <6ns ( 20 mV/div....10V)</li><li>Error Limit: 3%</li><li>Input Impedance: 1mohm ±2%/20pF ±2pF</li><li>Max Rated input Voltage: 400V ( DC+AC Peak)</li></ul>
