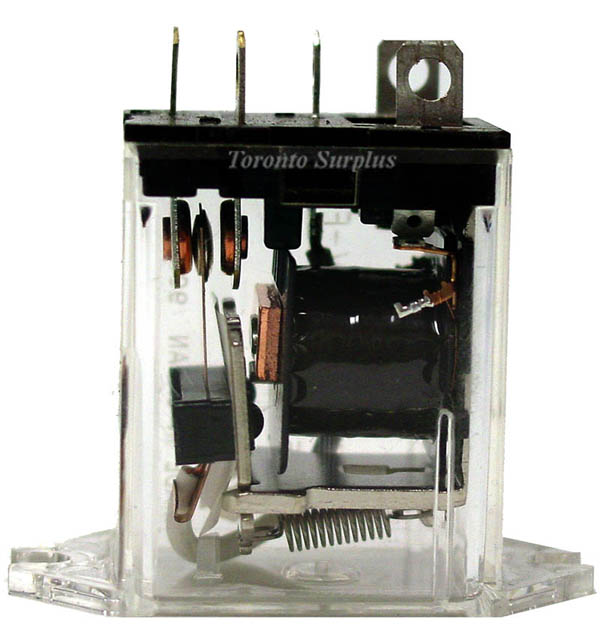

Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS
sku779310+ in stock
Request a Quote
By Panasonic
<p>Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS</p><p>Features</p><ul><li>Large capacity.Compact size.</li><li>Foot print compatible with competitive types.</li></ul><p>Specifications: Protective construction: Dust cover Terminal Shape: TM Foreign Standards: UL/CSA C…
Description
<p>Panasonic AP5512F / HL1-HTM-AC24V-F / HL1HTMAC24VF HL Relays BRAND NEW / NOS</p><p>Features</p><ul><li>Large capacity.Compact size.</li><li>Foot print compatible with competitive types.</li></ul><p>Specifications:
Protective construction: Dust cover
Terminal Shape: TM
Foreign Standards: UL/CSA
Coil Voltage: 24
Nominal Operating Power: 1.3VA(50Hz) / 1.2VA(60Hz)
Pick-up Voltage: 19.2V AC
Drop out Voltage: 7.2V AC
Nominal Switching capacity (resistive load): 15A, 125V AC
Min. Switching Capacity: 100mA 5V DC
Contact Arrangment: 1c
Contact Material: BBM
Contact Material: AgSriO2
Mechanical life (min. operation): 5x10<sup>7</sup>
Electrical life: 5 x 10<sup>5</sup>
Rated Voltage (Contact-Contact) 1000Vrms
Rated Voltage (Contact-Coil) 2000Vrms
Ambient Temperature: -50deg to +70deg
Operating Function: SIngle side stable</p>
Protective construction: Dust cover
Terminal Shape: TM
Foreign Standards: UL/CSA
Coil Voltage: 24
Nominal Operating Power: 1.3VA(50Hz) / 1.2VA(60Hz)
Pick-up Voltage: 19.2V AC
Drop out Voltage: 7.2V AC
Nominal Switching capacity (resistive load): 15A, 125V AC
Min. Switching Capacity: 100mA 5V DC
Contact Arrangment: 1c
Contact Material: BBM
Contact Material: AgSriO2
Mechanical life (min. operation): 5x10<sup>7</sup>
Electrical life: 5 x 10<sup>5</sup>
Rated Voltage (Contact-Contact) 1000Vrms
Rated Voltage (Contact-Coil) 2000Vrms
Ambient Temperature: -50deg to +70deg
Operating Function: SIngle side stable</p>
