Home›Products›Electronic Components & Parts›Relays›Omron MY2N-D2 DC24 / MY2ND2DC24 Power Relay with Built-in Diode Model W/ NAIS HJ2-SFD 8 Pin 7A 250VAC Relay Base - LOT of 3

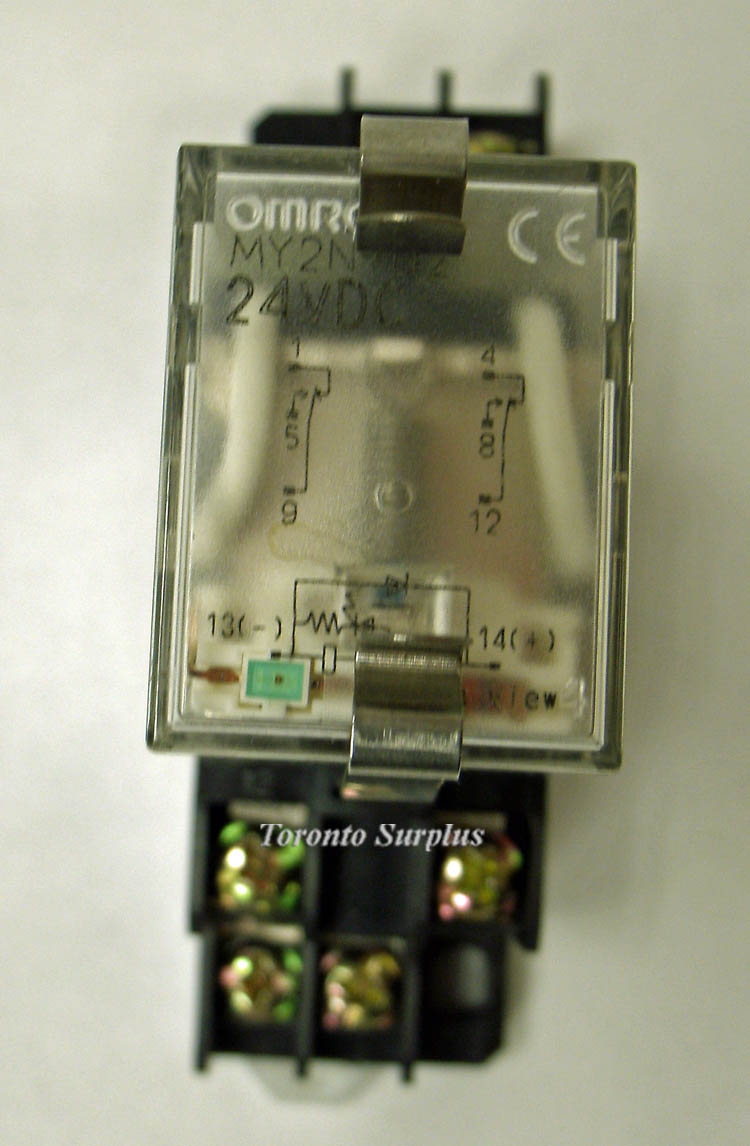

Omron MY2N-D2 DC24 / MY2ND2DC24 Power Relay with Built-in Diode Model W/ NAIS HJ2-SFD 8 Pin 7A 250VAC Relay Base - LOT of 3
sku102633 — low stock
$25.00CAD
By Omron
<p>LOT of 3 Relays with Bases</p><p>Operating indicator     LED indicator Coil surge killer:     Diode Contact Type     DPDT Contact method     Single Contact material     Contact body material: Ag Contact finish: Nothin…
Description
<p>LOT of 3 Relays with Bases</p><p>Operating indicator     LED indicator
Coil surge killer:     Diode
Contact Type     DPDT
Contact method     Single
Contact material     Contact body material: Ag
Contact finish: Nothing
Contact rated load     220 VAC 5 A (Resistive load (cos phi = 1))
220 VAC 2 A (Inductive load (cos phi = 0.4))
24 VDC 5 A (Resistive load)
24 VDC 2 A (Inductive load (L/R = 7 ms))
Maximum switching voltage     250 VAC (Resistive load (cos phi = 1))
250 VAC (Inductive load (cos phi = 0.4))
125 VDC (Resistive load)
125 VDC (Inductive load (L/R = 7 ms))
Maximum switching current     AC: 5 A (Resistive load (cos phi = 1))
AC: 5 A (Inductive load (cos phi = 0.4))
DC: 5 A (Resistive load)
DC: 5 A (Inductive load (L/R = 7 ms))
Maximum switching power     AC: 1100 VA (Resistive load (cos phi = 1))
AC: 440 VA (Inductive load (cos phi = 0.4))
DC: 120 W (Resistive load)
DC: 48 W (Inductive load (L/R = 7 ms))
Failure rate     1 mA at 5 VDC (failure level: P Reference value)
Ambient temperature     Operating: -55 to 60 CEL
                                            （with no icing or condensation）
Ambient humidity     Operating: 5 to 85% RH
                                    （with no icing or condensation）</p>
