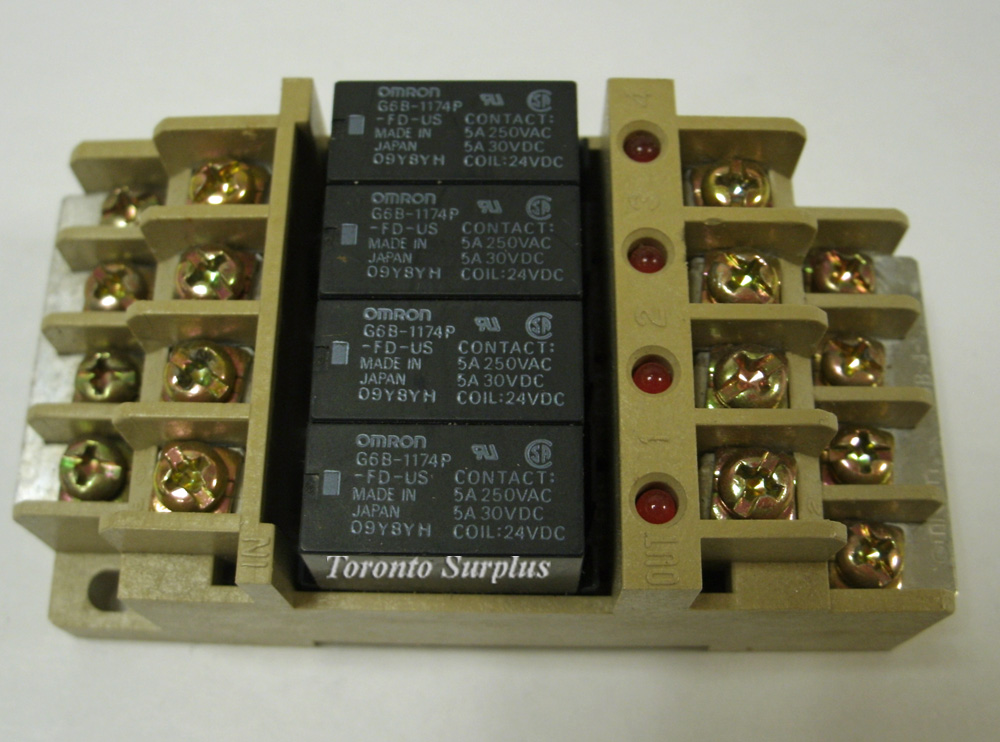

Omron G6B-47BND / G6B47BND 5A,250VAC Terminal Relay with 4 Independant Outputs
sku102671 — low stock
Request a Quote
By Omron
<p> Rated voltage 5 VDC 12 VDC 24 VDC Rated current 35.5 mA 19.1 mA 10.7 mA Coil resistance 125Ω 720Ω 2,880Ω Must operate voltage : 80% max. of rated voltage Must release voltage 10% min. of rated voltage Max. voltage 130% of rated voltage Power consumption Approx. 200 mW Contact resist…
Description
<p> Rated voltage 5 VDC 12 VDC 24 VDC
Rated current 35.5 mA 19.1 mA 10.7 mA
Coil resistance 125Ω 720Ω 2,880Ω
Must operate voltage : 80% max. of rated voltage
Must release voltage 10% min. of rated voltage
Max. voltage 130% of rated voltage
Power consumption Approx. 200 mW
Contact resistance (see note 2) 100 mΩmax.
Operate time10 ms max. (approx. 3 ms)
Release time15 ms max. (approx. 4 ms)
Switching Power : Mechanical: 18,000 operations/hr Rated load: 1,800 operations/hr
Insulation resistance 1,000 MΩmin. (at 500 VDC)
Dielectric strength: 2,000 VAC, 50/60 Hz for 1 min between coil and contacts
                               2,000 VAC, 50/60 Hz for 1 min between contacts of different polarity
                               1,000 VAC, 50/60 Hz for 1 min between contacts of same polarity
                               250 VAC, 50/60 Hz for 1 min between coils of different polarity
Vibration resistance Destruction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude )Malfunction: 10 to 55 to 10 Hz, 0.75-mm single amplitude (1.5-mm double amplitude)
Shock Resistance: Destruction: 1,000 m/s2(approx. 100G)Malfunction: 100 m/s(approx.10G)
Endurance Mechanical: 50,000,000 operations min. (at 18,000 operations/hr)
Electrical: 100,000 operations min. (at 1,800 operations/hr, rated load)
                     500,000 operations min. for long-life at 2 A
                      100,000 operations min for long-life at 5 A
Ambient temperature Operating: –25°C to 55°C (with no icing or condensation)Storage:–                                                       (  with no   icing or condensation)
Ambient humidity : Operating: 35% to 85%</p>
