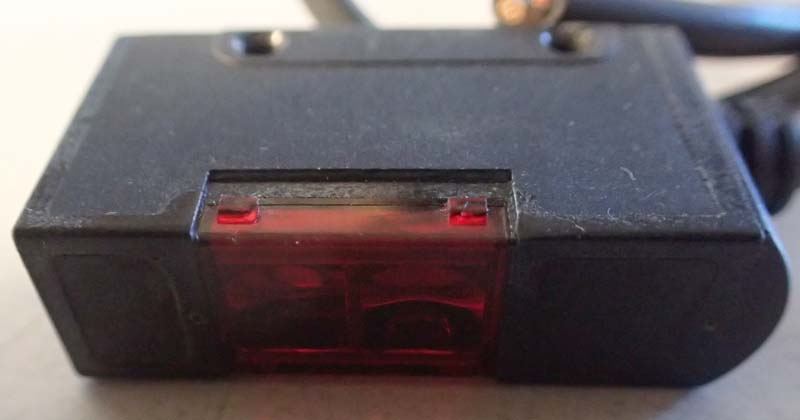

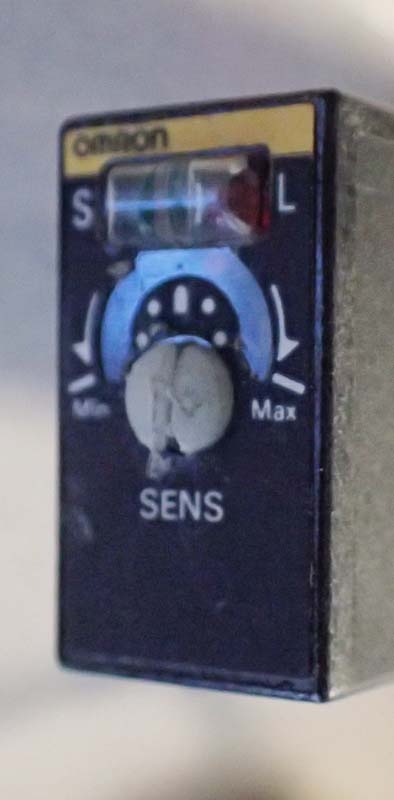

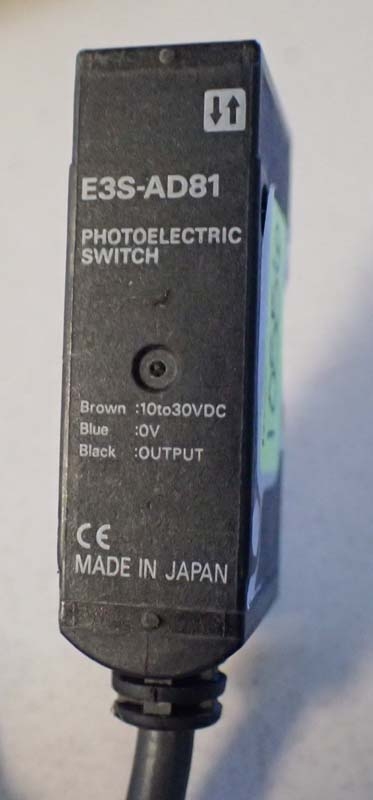

Omron E3S-AD81 / E3S AD81 Photoelectric Sensor W/ Built in Amplifier, 200mm Sensing Distance
sku105561 — low stock
Request a Quote
By Omron
<ul><li>Sensing Distance : 200mm</li><li>Differential Travel: 20% max of sensing distance</li><li>Power Supply Voltage : 10 to 30 VDC, including ripple ( p-p) 10%</li><li>Current Consumption: 35mA max</li><li>Response Time: Operation or reset 0.5 ms max</li><li>Ambient Temperature: Operating- -25°C …
Description
<ul><li>Sensing Distance : 200mm</li><li>Differential Travel: 20% max of sensing distance</li><li>Power Supply Voltage : 10 to 30 VDC, including ripple ( p-p) 10%</li><li>Current Consumption: 35mA max</li><li>Response Time: Operation or reset 0.5 ms max</li><li>Ambient Temperature: Operating- -25°C to 55°  ( With no icing or condensation ) </li></ul><p>                                                         Storage - - -40° C to 70°C  ( with no icing or condensation )</p><ul><li>Ambient Illumination:  Incandescent lamp 5,000 lx max ...Sunlight 10,000 lx max</li><li>Ambient Humidity : Operating 35% to 85% ( with no condensation )</li></ul><p>                                                  Storage 35% to 95% ( with no condensation)</p><ul><li>Insulation Resistance: 20 M ohm min at 500 VDC between current carrying parts and case.</li><li>Dielectric Strength : 1,000 VAC 50/60 Hz for 1 min between current carrying parts and case.</li><li>Vibration distance : 10 to 55 Hz, 1.5-mm double amplitude for two hours each in X, Y and Z directions.</li><li>Shock Resistance : Destruction 500m/s2, 3 times each in X, Y, And Z directions.</li><li> </li></ul><div dir="ltr" style="font-size: 9.77548px; font-family: sans-serif; left: 247.382px; top: 787.088px; transform: rotate(0deg) scale(1.01059, 1); transform-origin: 0% 0% 0px;" data-angle="0" data-font-name="g_font_99_0" data-canvas-width="10.105888545799257"> </div><p> </p>
