Home›Products›Optics & Photonics›OMRON E3MC-MX41 Color Sensor 4-Channel RGB Photoelectric PNP 12-24VDC

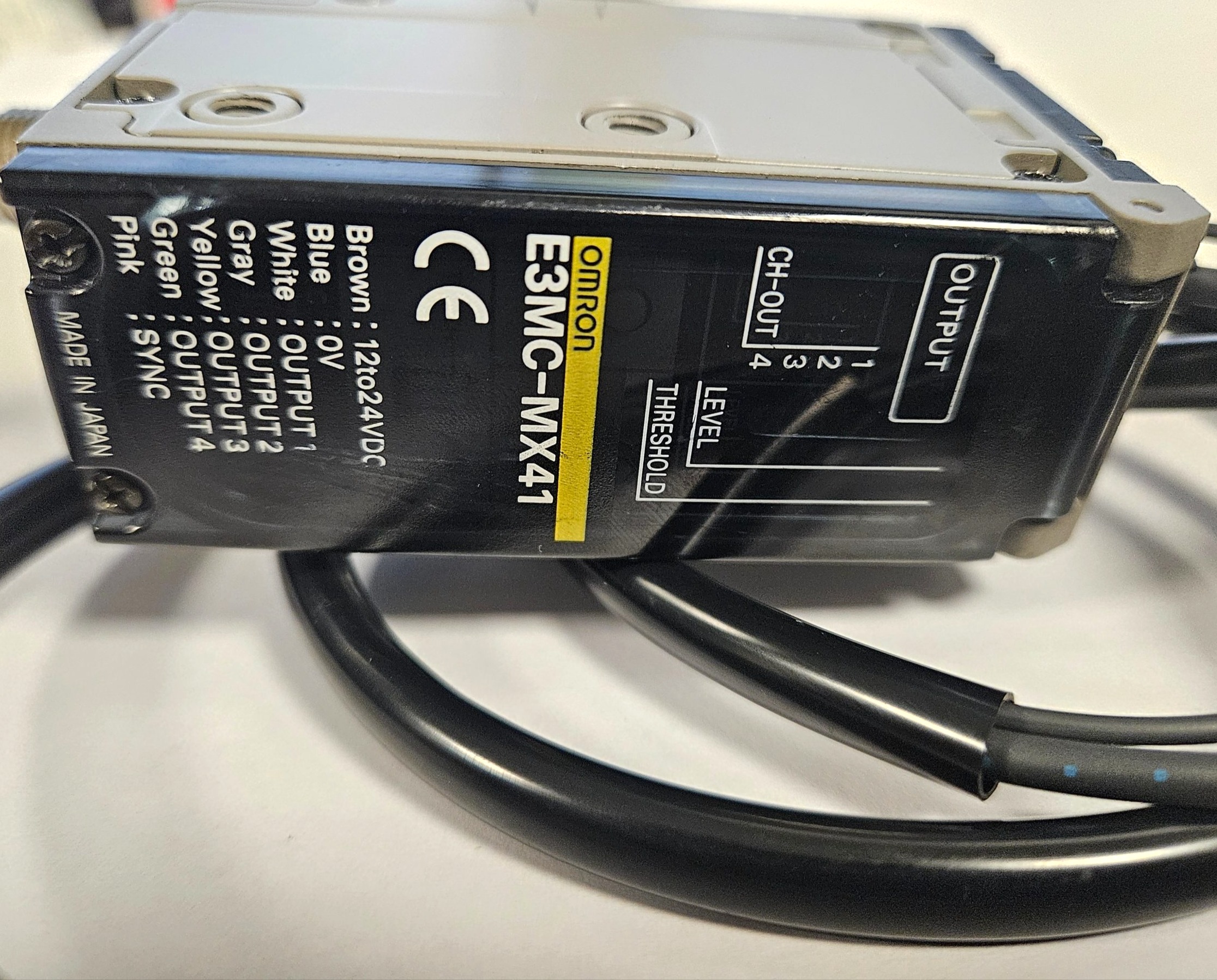

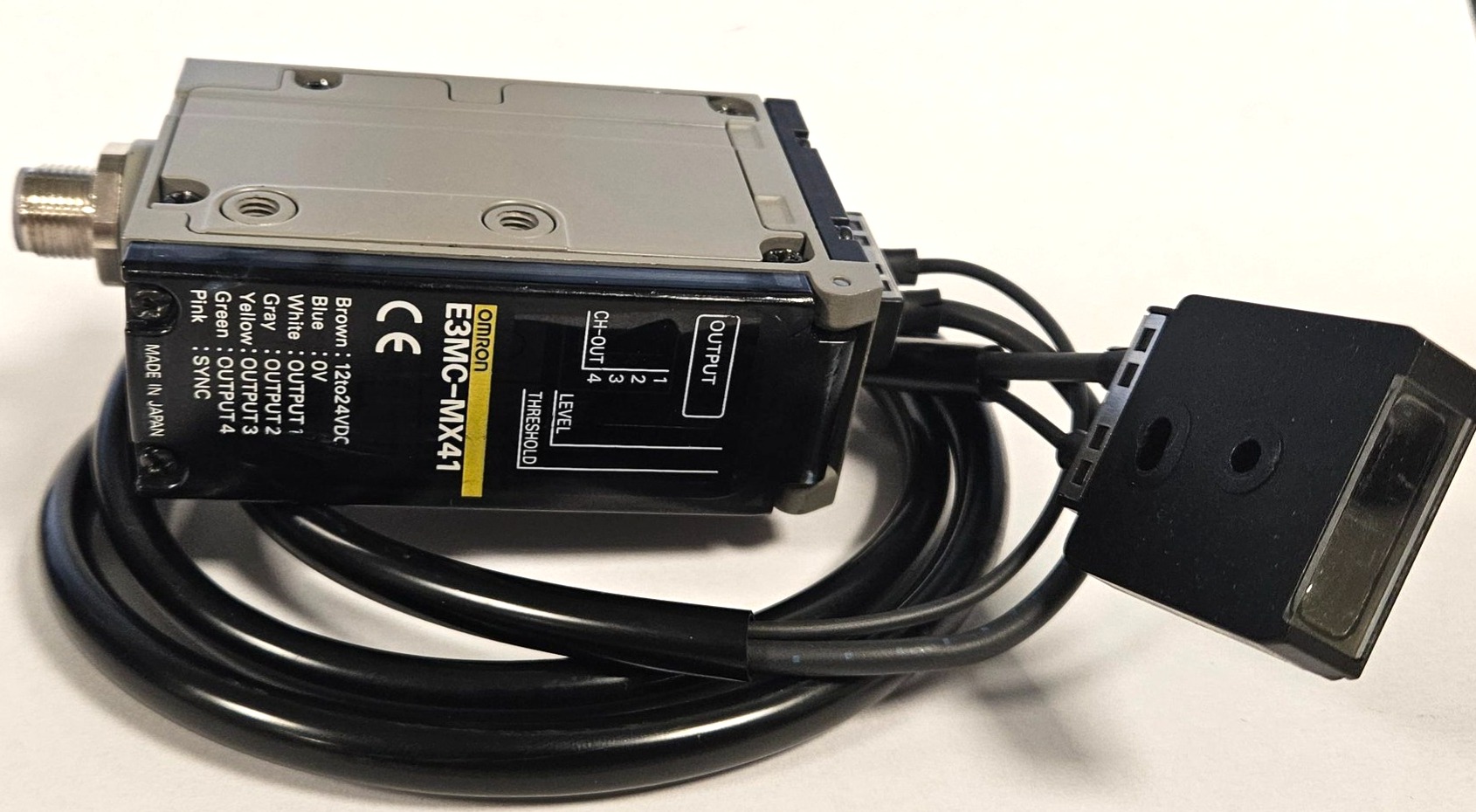

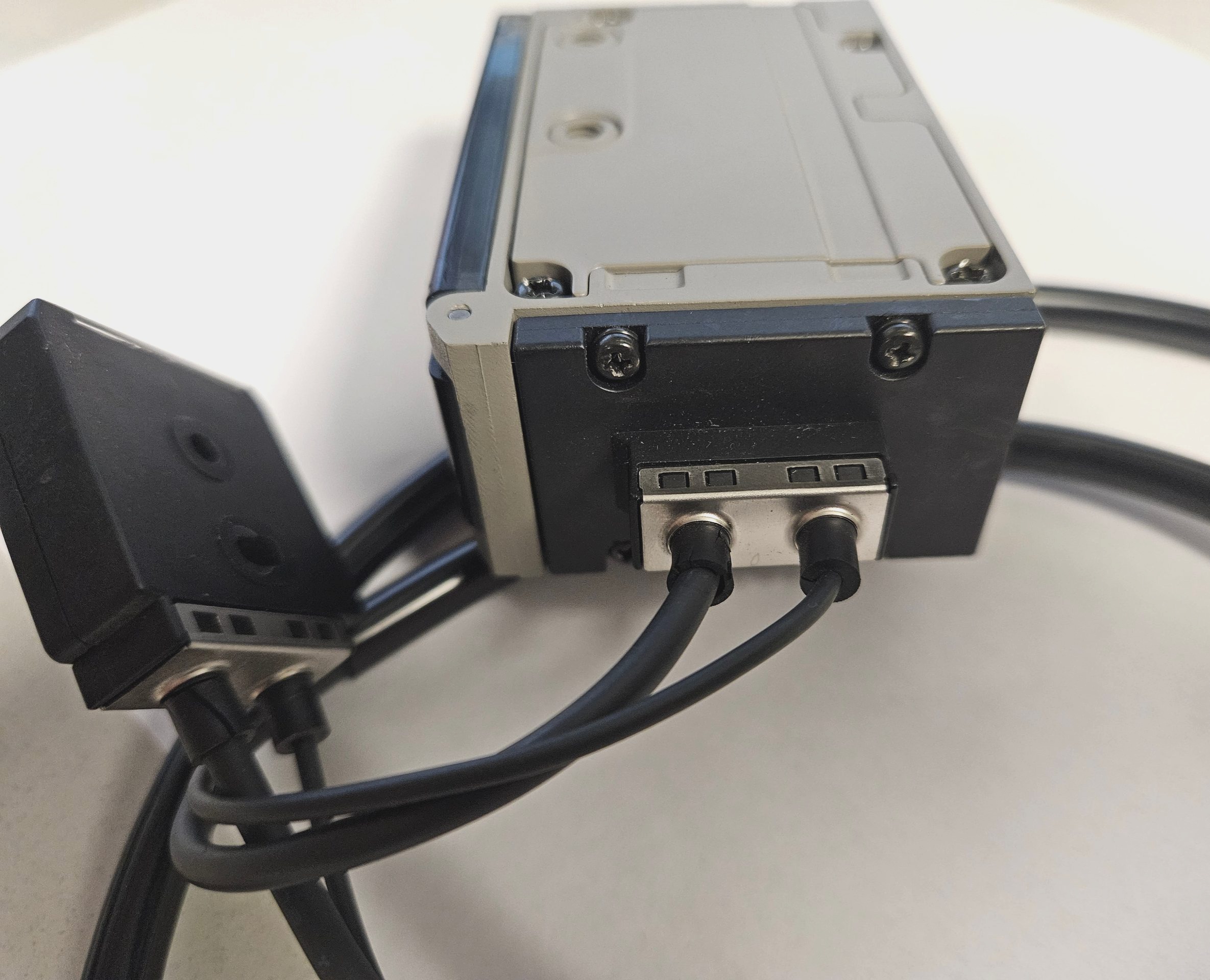

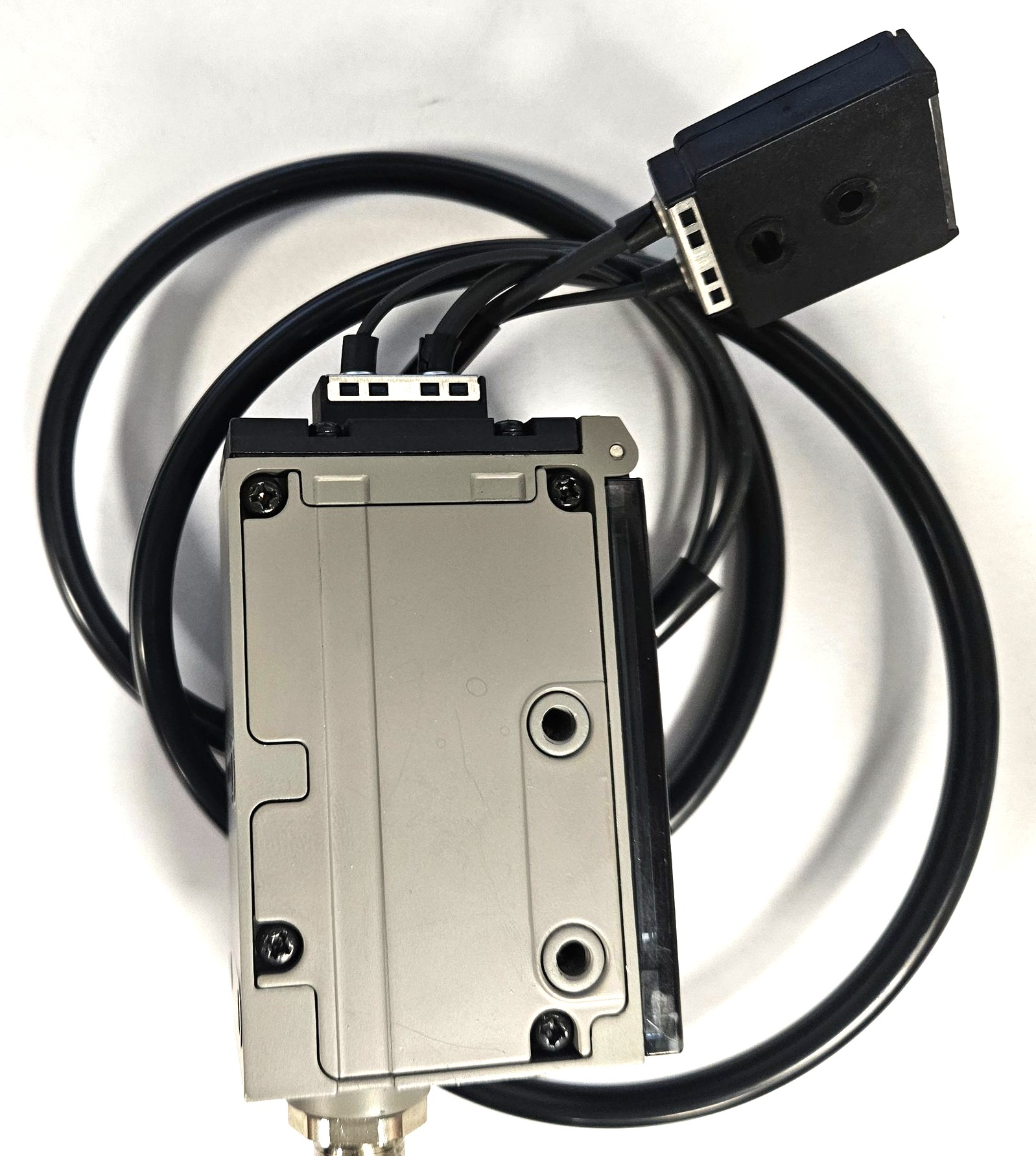

OMRON E3MC-MX41 Color Sensor 4-Channel RGB Photoelectric PNP 12-24VDC
SKU200915 in stock
$750.00CAD
By Omron
Sensor Type: Precision Fiber-Optic RGB Color Sensor Light Source: Red, Green, and Blue (RGB) LEDs Number of Channels / Outputs: 4 outputs (allows 4-color memory/registration) Output Type: PNP Sensing Distance: 20 ± 4 mm Spot Diameter: 3 mm Supply Voltage: 12 to 24 VDC Current Consumption: 100 mA max…
Description
Sensor Type: Precision Fiber-Optic RGB Color Sensor
Light Source: Red, Green, and Blue (RGB) LEDs
Number of Channels / Outputs: 4 outputs (allows 4-color memory/registration)
Output Type: PNP
Sensing Distance: 20 ± 4 mm
Spot Diameter: 3 mm
Supply Voltage: 12 to 24 VDC
Current Consumption: 100 mA max.
Response Time: Switch selectable:
• Standard Mode: 6 ms max.
• High-Speed Mode: 2 ms max.
Timer Function: OFF delay fixed at 40 ms (ON/OFF switch selectable)
IP Rating: IP66 (dust-tight and protected against powerful water jets)
