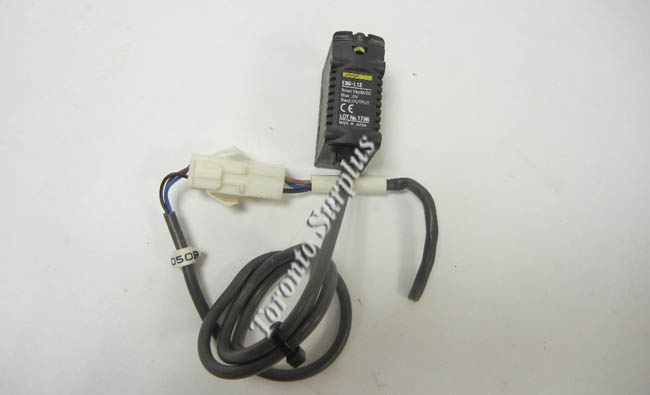

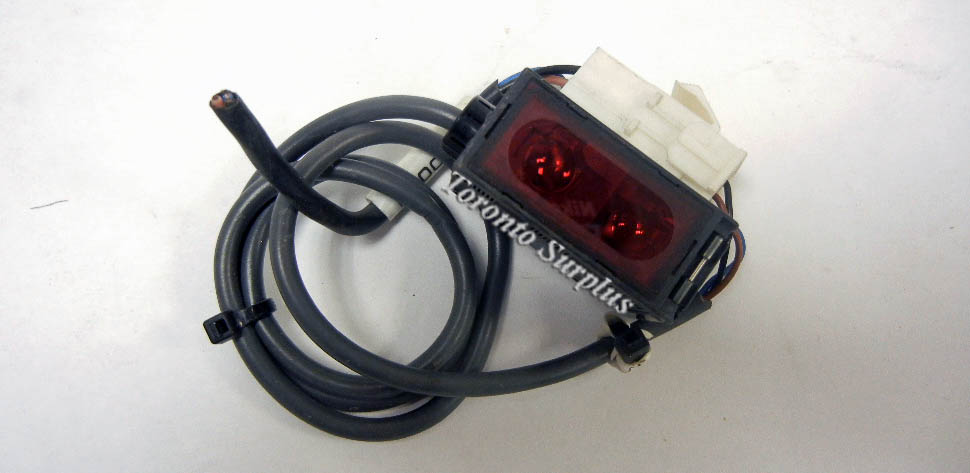

Omron E3G-L12 Distance Setting Photo-electric Sensor

Description

<p>&#160;SENSING RANGE :</p><ul><li>5 TO 50mm</li></ul><p>SETTING RANGE:</p><ul><li>30 TO 50 mm</li></ul><p>DIFFERENTIAL TRAVEL :</p><ul><li>4% Max . of setting distance</li></ul><p>REFLECTIVE CHARACTERISTICS</p><ul><li>4%max. of Setting Distance</li></ul><p>LIGHT&#160;SOURCE:</p><ul><li>Red LED ( 670 nm )&#160;</li></ul><p>SPOT&#160;SIZE</p><ul><li>1-mm dia. max. ( at 38-mm sensing distance )</li></ul><p>POWER SUPPLY VOLTAGE :</p><ul><li>10 TO 30 VDC including 10% (p-p) ripple</li></ul><p>CURRENT&#160;CONSUMPTION:</p><ul><li>55mA max.</li></ul><p>CONTROL&#160;OUTPUT:</p><ul><li>Load Power Supply Voltage-30VDC</li><li>Load Current - 100mA max.</li><li>Residual Voltage: NPN output : 1.2 V max., PNP output 2.0V max.</li><li>Open Collector output ( NPN / PNP , depends on model )</li><li>Light ON / Dark ON selectable</li></ul><p>PROTECTION CIRCUIT:</p><ul><li>Power supply reverse polarity protection,</li><li>Load short circuit protection</li><li>Mutual interference prevention</li></ul><p>RESPONSE&#160;TIME:</p><ul><li>Operate or reset: 1.5 ms max.</li></ul><p>DISTANCE&#160;SETTING:</p><ul><li>Teaching ( In NORMAL&#160;or ZONE mode )</li></ul><p>AMBIENT&#160;ILLUMINATION:</p><ul><li>Incandescent Lamp 3,000 lx max.</li><li>Sunlight; 10,000 lx max.</li></ul><p>AMBIENT&#160;TEMPERATURE:</p><ul><li>Operating -25°C to +55°C</li><li>Storage -30°C to 70°C ( with no icing or condensation )&#160;</li></ul><p>AMBIENT HUMIDITY:</p><ul><li>Operating 35% to 85%</li><li>Storage 35% to 95% ( with no condensation )</li></ul><p>INSULATION RESISTANCE :</p><ul><li>20 MΩ min. at 500VDC</li></ul><p>DIELECTRIC STRENGTH:</p><ul><li>1,000VAC, 50/60Hz</li></ul><p>&#160;</p>

Specifications
