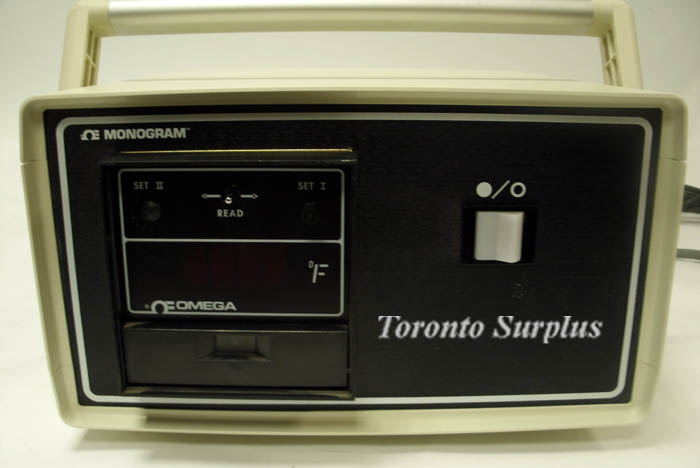

Omega MCS 4100 Series Temperature Controller 120/240 VAC
sku107271 — low stock
Request a Quote
By Omega
<p><span style="font-family: Times New Roman;"> SPECIFICATIONS</span></p><p>Line Voltage</p><ul><li>120/240VAC +10% -15%, 50/60 Hz</li></ul><p>Power Consumption</p><ul><li>Less than 5 VA</li></ul><p>Common Mode Rejection</p><ul><li>Maximum error +/- 1 deg C with 240 VAC, 60Hz appiled as a commo…
Description
<p><span style="font-family: Times New Roman;"> SPECIFICATIONS</span></p><p>Line Voltage</p><ul><li>120/240VAC +10% -15%, 50/60 Hz</li></ul><p>Power Consumption</p><ul><li>Less than 5 VA</li></ul><p>Common Mode Rejection</p><ul><li>Maximum error +/- 1 deg C with 240 VAC, 60Hz appiled as a common mode signal between sensor input and chassis ground</li></ul><p>Series Rejection Mode</p><ul><li>Maximum error +/- 1 deg with series mode signal of 100mV pk-to-pk at 60Hz</li></ul><p>Sensor Break Protection</p><ul><li>Up Scale Zero output for open sensor</li></ul><p>Thermocouple</p><ul><li>Maximum Lead resistance 1000 ohms for rated accuracy, cold junction compensation standard.</li></ul><p> </p>
