OHM Loads OL7995 Bench Top Mount Rack Fan Cooled Passive Load, 3Phase, .8pf Resistive Load, 1000W per Phase, 110VAC
sku98021 — low stock
$800.00CAD
By Ohm-Stat
<p>The OL 7995 is a user specified passive load for high power applications. The load is connected as three individual phases. The neutrals can be joined together for a three phase Wye load. Input connections are made via the high current 1/4" bolt type binding posts. There are six input terminals 0…
Description

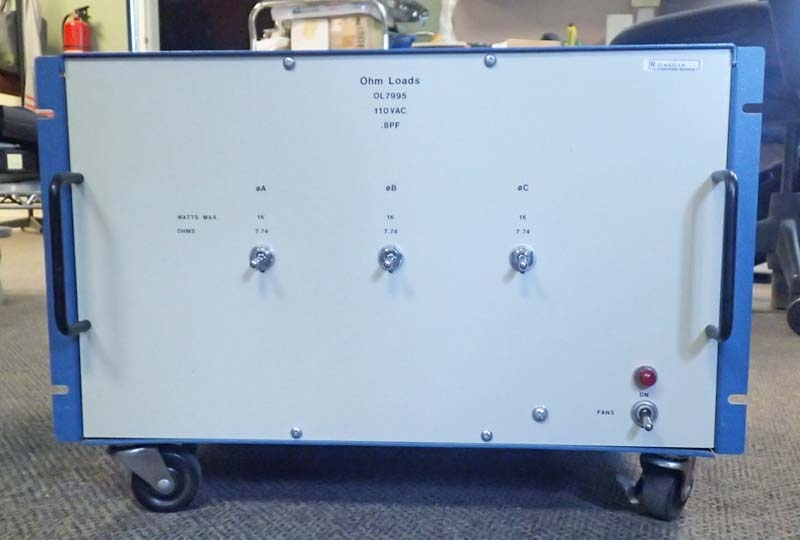

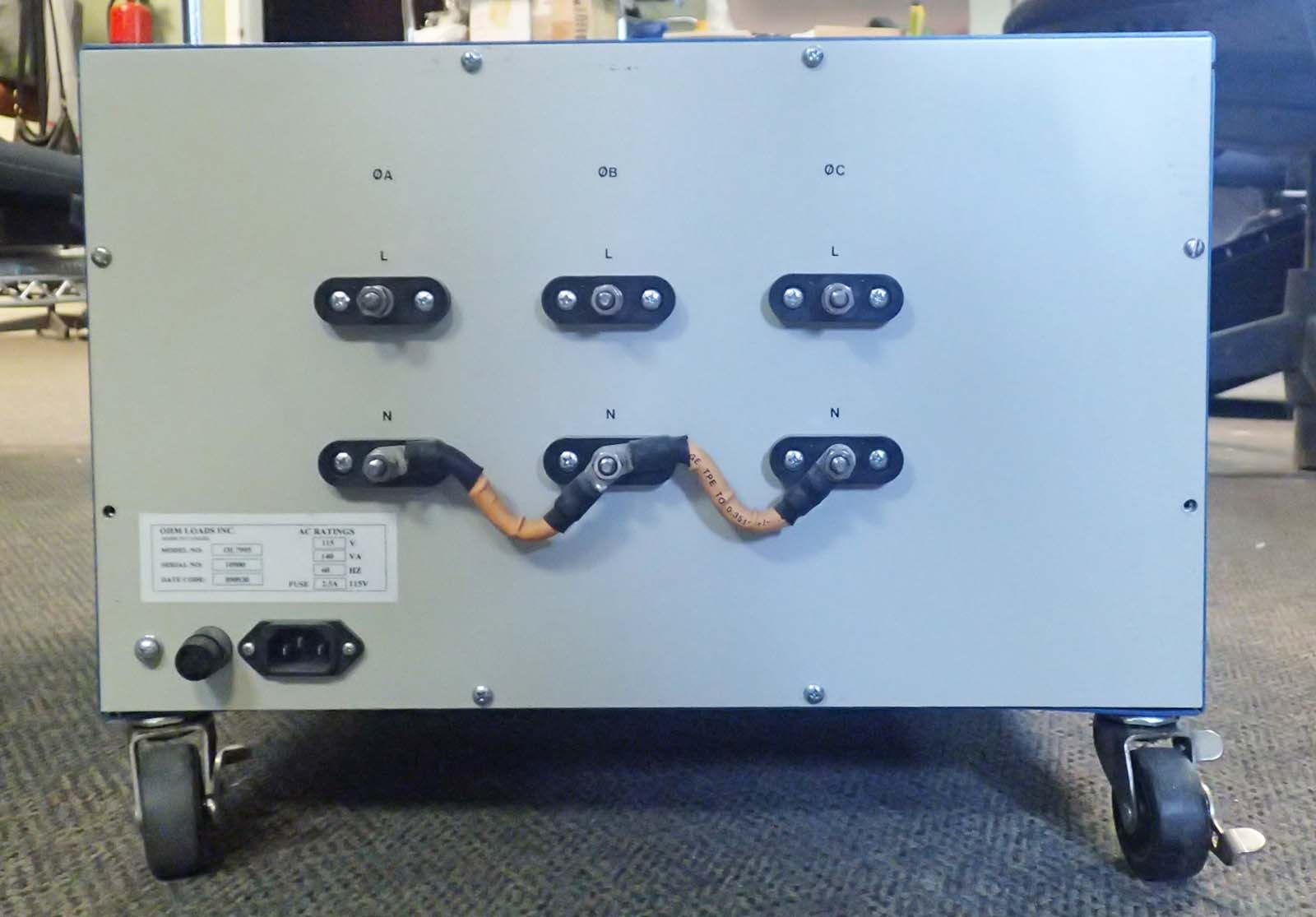

<p>The OL 7995 is a user specified passive load for high power applications. The load is connected as three individual phases. The neutrals can be joined together for a three phase Wye load. Input connections are made via the high current 1/4" bolt type binding posts. There are six input terminals 0A and Neut 0B and Neut and 0C and NEUT. The load has three-load steps 1kW for each phase. Each load step can be used as a phase voltage of 110Vac, 8PF.
TO BE USED IN SERIES WITH OL7997  </p>
