North Atlantic Model 225 Digital Phase Angle Voltmeter, P/N 401085, 400 Hz
sku120361 — low stock
$2,250.00CAD
By North Atlantic
<p>North Atlantic 225 Phase Angle Voltmeter</p><p>This PAV provides complete analysis of complex AC waveforms at a discrete frequency or frequencies, and displays the results on a high readability 4 1/2 digit display.  Parameters measured are Total, Fundamental, In-Phase, and Quadrature voltage…
Description
<p>North Atlantic 225 Phase Angle Voltmeter</p><p>This PAV provides complete analysis of complex AC waveforms at a discrete frequency or frequencies, and displays the results on a high readability 4 1/2 digit display.  Parameters measured are Total, Fundamental, In-Phase, and Quadrature voltages plus Phase Angle.  Phase angle is displayed directly in degrees from 0° to 360° with a resolution of 0.1°.</p><p>SPECIFICATIONS:</p><ul><li>Phase Sensitive Operating Frequencies: 400 Hz & 54 kHz</li><li>Signal Voltage Range: 10 mV to 1000 V RMS in 6 ranges, 500 V RMS max input</li><li>Display Voltage: 4 1/2 digits, 0.01% full range resolution</li><li>Display Phase: 0.0° to 360.0° range, 4 digits (0.1° resolution)</li></ul><p> </p><p>There is no option label on the back, but using the option information I was able to find, it appears that our 225 has the following options:
01 - Angle Mode & 45° Phase Adjust
02 - Autoranging
05 - Broadband Isolation (Signal)

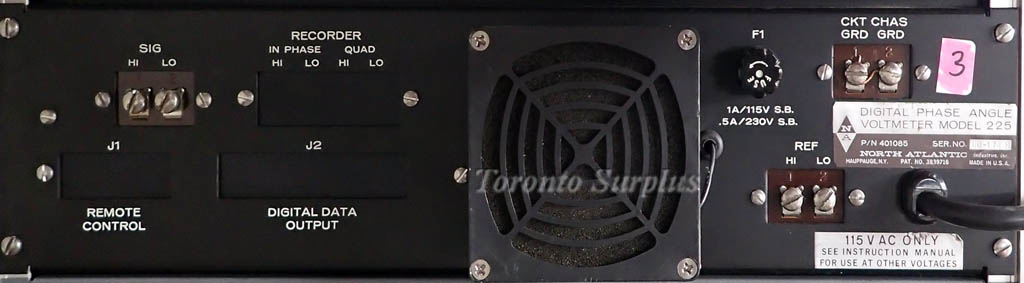

08 - Rear Input (Signal & Reference) Terminal Strips
10 - Null Meter
 </p><p> I used the front photo of another unit we had, but this one looks basically the same.</p><p>Additional specifications available upon request.
 </p> The unit available has the following Options: 01/02/03/04/05/06/07/08/09.
01 - Angle Mode & 45° Phase Adjust
02 - Autoranging
05 - Broadband Isolation (Signal)
08 - Rear Input (Signal & Reference) Terminal Strips
10 - Null Meter
 </p><p> I used the front photo of another unit we had, but this one looks basically the same.</p><p>Additional specifications available upon request.
 </p> The unit available has the following Options: 01/02/03/04/05/06/07/08/09.
