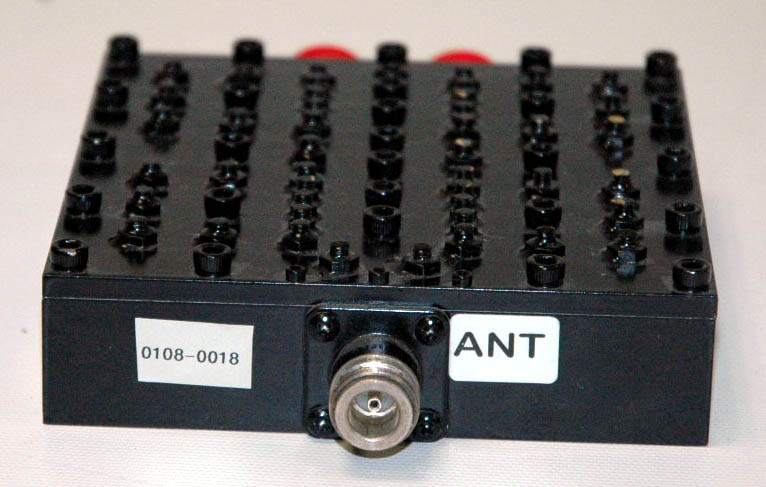

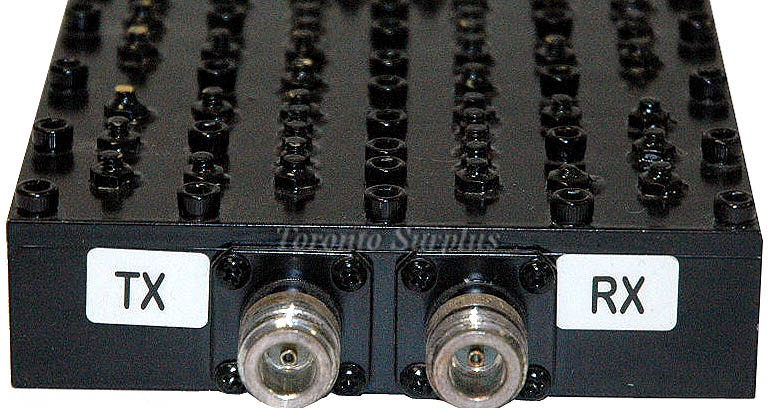

Narda Microwave-West / L3 Communications SFD21A1819-09 PCS Band Duplexer 4000 MHz, 100 Watt
sku68346 in stock
Request a Quote
By L-3 Communications
<p>Narda Microwave-West / L3 Communications SFD21A1819-09 <span style="font-family: 'Swis721BT','sans-serif'; font-size: 10pt;"> </span><span style="font-family: 'Swis721BT','sans-serif'; font-size: 10pt;">PCS Band Duplexer 4000MHz, 100Watt </span></p><p><span style="font-family: 'Swis721BT','sans-s…
Description
<p>Narda Microwave-West / L3 Communications SFD21A1819-09 <span style="font-family: 'Swis721BT','sans-serif'; font-size: 10pt;"> </span><span style="font-family: 'Swis721BT','sans-serif'; font-size: 10pt;">PCS Band Duplexer 4000MHz, 100Watt
</span></p><p><span style="font-family: 'Swis721BT','sans-serif'; font-size: 10pt;">Narda’s SFD21A1819-09 PCS Band Duplexer provides highly selective receive / transmit combining. It is designed to pass the full PCS receive and transmit bands while providing more than 60 dB isolation. Out-of-band rejection is 60 dB minimum from DC to 1825 MHz and 55 dB from 2015 to 4000 MHz. This duplexer has a 1.0 dB maximum passband insertion loss with 0.7 dB typical. Power ratings are 100 watts CW, 400 watts peak, with multi-carrier powers of 6 carriers at 10 watts each. Passband return loss is specified at 14 dB maximum.<span style="">  </span>The unit has the N connector option</span></p>
</span></p><p><span style="font-family: 'Swis721BT','sans-serif'; font-size: 10pt;">Narda’s SFD21A1819-09 PCS Band Duplexer provides highly selective receive / transmit combining. It is designed to pass the full PCS receive and transmit bands while providing more than 60 dB isolation. Out-of-band rejection is 60 dB minimum from DC to 1825 MHz and 55 dB from 2015 to 4000 MHz. This duplexer has a 1.0 dB maximum passband insertion loss with 0.7 dB typical. Power ratings are 100 watts CW, 400 watts peak, with multi-carrier powers of 6 carriers at 10 watts each. Passband return loss is specified at 14 dB maximum.<span style="">  </span>The unit has the N connector option</span></p>
