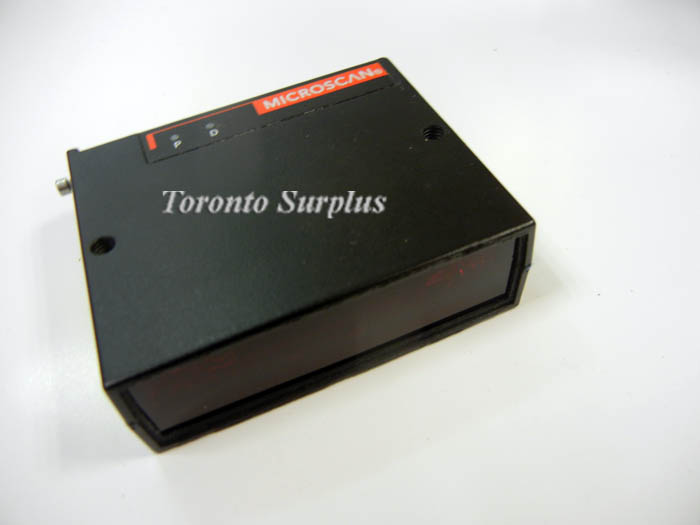

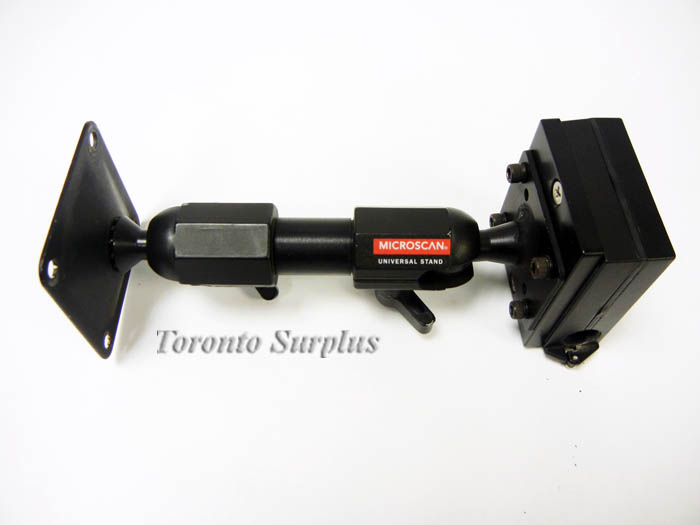

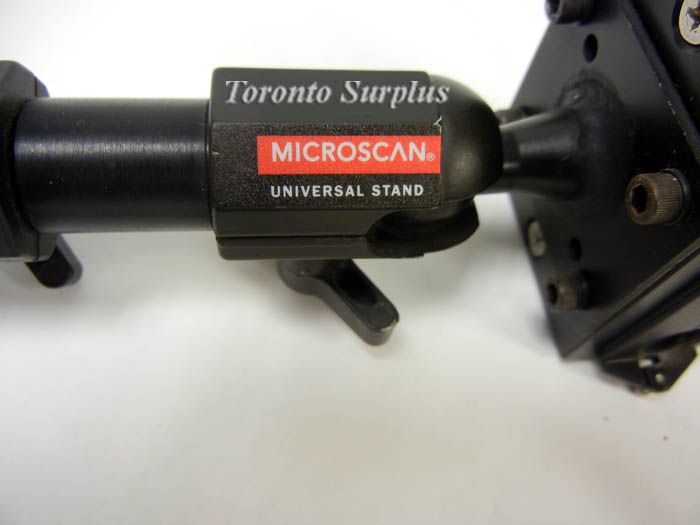

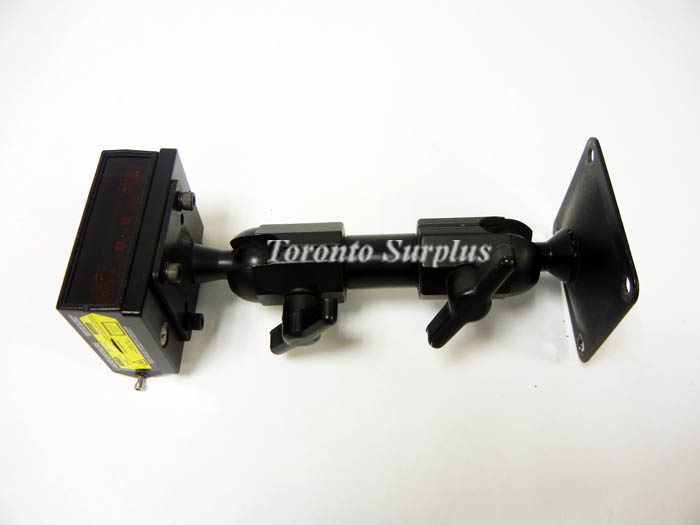

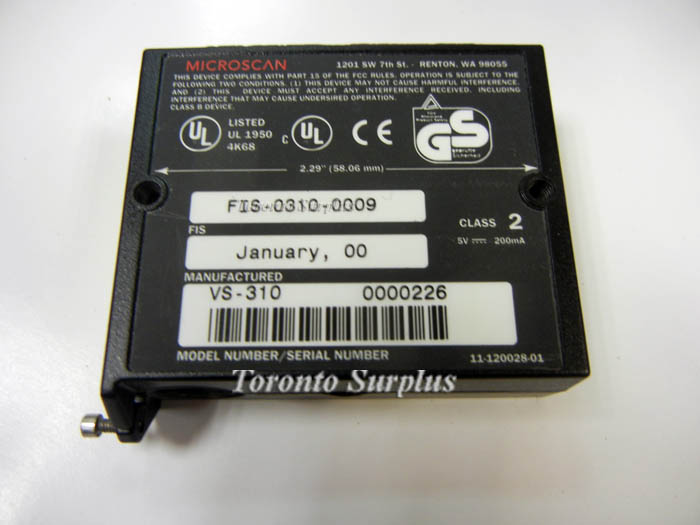

Microscan FIS-0310-0009 Industrial Barcode Scanner W/ Microscan Universal Stand
sku111451 — low stock
Request a Quote
By Microscan
<p> The VS-310 is the smallest, lightest, and most affordable fixed-mount scanner offered by Microscan. Features include wide scan angle with two optional scanning patterns, two programmable outputs, bracketless top or bottom mounting, all enclosed in a compact IP54 rated housing weighing only…
Description
<p> The VS-310 is the smallest, lightest, and most affordable fixed-mount scanner
offered by Microscan.
Features include wide scan angle with two optional scanning patterns, two
programmable outputs, bracketless top or bottom mounting, all enclosed in a
compact IP54 rated housing weighing only 3 ounces. Set up and configuration is also fast and easy with Microscan’s patented, Window’s based ESP software
(Easy Setup Program).
The VS-310’s compact size combined with its feature set make it ideally suited for
OEM applications or other space constrained environments.</p><p>SYMBOLOGIES
The VS-310 comes standard with all widely used linear barcode symbologies, including:</p><ul><li> Code 39</li><li> Codabar</li><li> Interleaved 2 of 5 • Code 93</li><li> Code 128</li></ul><p>SCANNING PARAMETER</p><p>
Type:10-sided, single line or raster,spinning mirror
Scan rate: High Density - 60 scans persecond. Low Density: - 100 scans per second
Scan width: 4" (10.16 cm) @ 2.75"(6.99 cm) from window (7.5 mil and larger bar widths)
Pitch: ±50°
Skew: ±40°

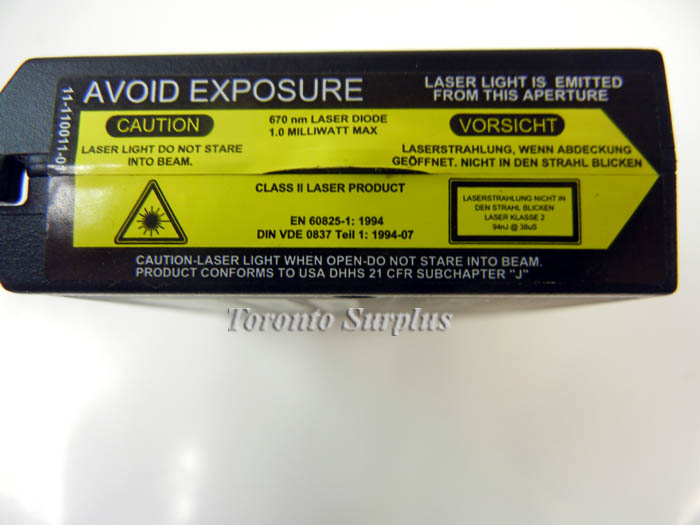

Label contrast: 25% min. absolute dark to light differential at 670 nm wave-length</p><p>LASER LIGHT
 </p><p>Type: Semiconductor visible laser diode (670 nm nominal)
Safety class: CDRH Class II</p><p> </p><p> </p>
offered by Microscan.
Features include wide scan angle with two optional scanning patterns, two
programmable outputs, bracketless top or bottom mounting, all enclosed in a
compact IP54 rated housing weighing only 3 ounces. Set up and configuration is also fast and easy with Microscan’s patented, Window’s based ESP software
(Easy Setup Program).
The VS-310’s compact size combined with its feature set make it ideally suited for
OEM applications or other space constrained environments.</p><p>SYMBOLOGIES
The VS-310 comes standard with all widely used linear barcode symbologies, including:</p><ul><li> Code 39</li><li> Codabar</li><li> Interleaved 2 of 5 • Code 93</li><li> Code 128</li></ul><p>SCANNING PARAMETER</p><p>
Type:10-sided, single line or raster,spinning mirror
Scan rate: High Density - 60 scans persecond. Low Density: - 100 scans per second
Scan width: 4" (10.16 cm) @ 2.75"(6.99 cm) from window (7.5 mil and larger bar widths)
Pitch: ±50°
Skew: ±40°
Label contrast: 25% min. absolute dark to light differential at 670 nm wave-length</p><p>LASER LIGHT
 </p><p>Type: Semiconductor visible laser diode (670 nm nominal)
Safety class: CDRH Class II</p><p> </p><p> </p>
