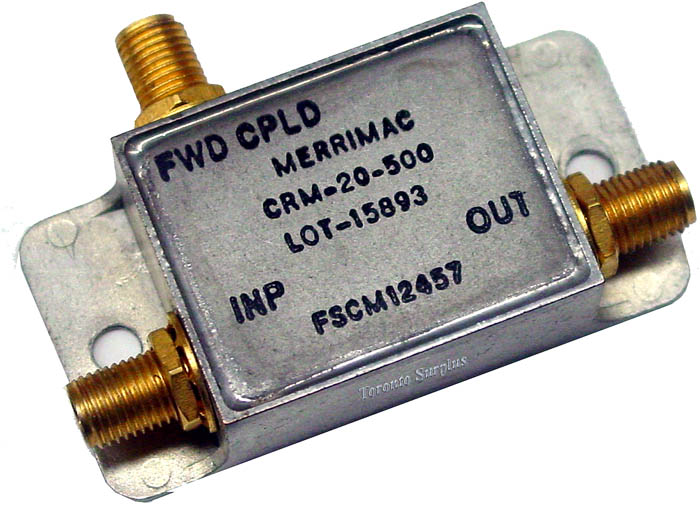

Merrimac CRM-20-500 FWD CPLD RF Directional Coupler
sku64932 — low stock
$85.00CAD
By Merrimac
<h3> Merrimac CRM-20-500 FWD CPLD RF Directional Coupler</h3><ul><li>Frequency Range: 10-1000 MHz</li><li>Operating Bandwidth: 10-500 MHz</li></ul><p style="margin-left: 80px;">Coupling Tolerance: 20 ± 1.0 dB max. Frequency Sensitivity: ± 0.5 dB max. Directivity: 20 dB min. Insertion Loss: 1.0 …
Description
<h3> Merrimac CRM-20-500 FWD CPLD RF Directional Coupler</h3><ul><li>Frequency Range: 10-1000 MHz</li><li>Operating Bandwidth: 10-500 MHz</li></ul><p style="margin-left: 80px;">Coupling Tolerance: 20 ± 1.0 dB max.
Frequency Sensitivity: ± 0.5 dB max.
Directivity: 20 dB min.
Insertion Loss: 1.0 dB max.
VSWR Main Arm: 1:3:1
VSWR Cpld Arm: 1:3:1</p><ul><li>Operating Bandwidth: 500-1000 MHz</li></ul><p style="margin-left: 80px;">Coupling Tolerance: 20 ± 1.0 dB max.
Frequency Sensitivity: ± 1.0 dB max.
Directivity: 15 dB min.
Insertion Loss: 1.5 dB max.
VSWR Main Arm: 1:35:1
VSWR Cpld Arm: 1:35:1</p>
Frequency Sensitivity: ± 0.5 dB max.
Directivity: 20 dB min.
Insertion Loss: 1.0 dB max.
VSWR Main Arm: 1:3:1
VSWR Cpld Arm: 1:3:1</p><ul><li>Operating Bandwidth: 500-1000 MHz</li></ul><p style="margin-left: 80px;">Coupling Tolerance: 20 ± 1.0 dB max.
Frequency Sensitivity: ± 1.0 dB max.
Directivity: 15 dB min.
Insertion Loss: 1.5 dB max.
VSWR Main Arm: 1:35:1
VSWR Cpld Arm: 1:35:1</p>
