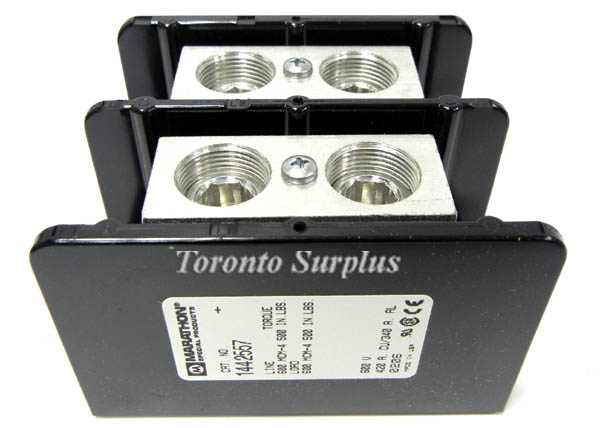

Marathon Special Products 1442557 Power Distribution Block,PDB, 2 Ph, 420A, 600MCM-4AWG - BNIB / NOS

Description

<p>Marathon Special Products 1442557 Power Distribution Block, 2 Ph, 420A, 600MCM-4AWG - BNIB / NOS </p><p>Item Number:&#160;&#160; &#160;&#160;&#160; 1442557
Manufacturer:&#160;&#160; &#160;&#160;&#160; Marathon Specialty Products
Item Category:&#160;&#160; &#160;&#160;&#160; Power Distribution Blocks

&#160; No. of Poles:&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 2
&#160; Voltage (AC):&#160;&#160; &#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; &#160; &#160; &#160;&#160; 600 Volts AC
&#160; Amps (AC):&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 420 Amps
&#160; No. of Inputs per Pole:&#160;&#160; &#160;&#160; &#160;&#160;&#160;&#160;&#160;&#160;&#160;&#160; 1
&#160; No. of Outputs per Pole:&#160; &#160; &#160; &#160; &#160; &#160; 1
&#160; Connection Type:&#160;&#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160; &#160; &#160; &#160; Aluminum Box Lug, Tin Plated
&#160; Mounting Type:&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160; Panel Mount
&#160; Input Wire Range (AWG):&#160;&#160; &#160;&#160; &#160; &#160; 600 MCM~4 AWG
&#160; Output Wire Range (AWG):&#160;&#160; &#160;&#160;&#160; 600 MCM~4 AWG
&#160; Hinged Cover:&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160;&#160; No
&#160; Composition:&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160;&#160; Phenolic
&#160; Wire Entry Position:&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160;&#160; Side
&#160; Color:&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; Black
&#160; Mfg. Series:&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; 144
&#160; Approvals:&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; &#160;&#160; UL;CSA;CE
&#160; RoHS:&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160;&#160; No
&#160; H x W x D (in.):&#160;&#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160; &#160;&#160; 4.75 x 4.17 x 2.9</p>
