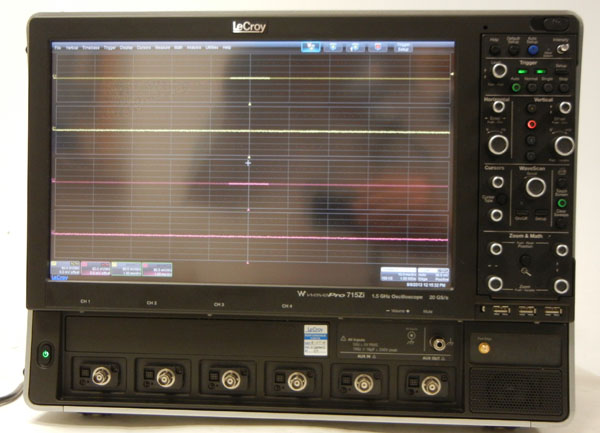

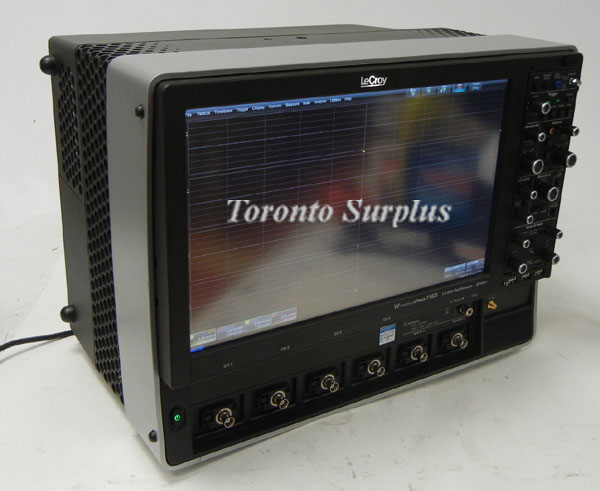

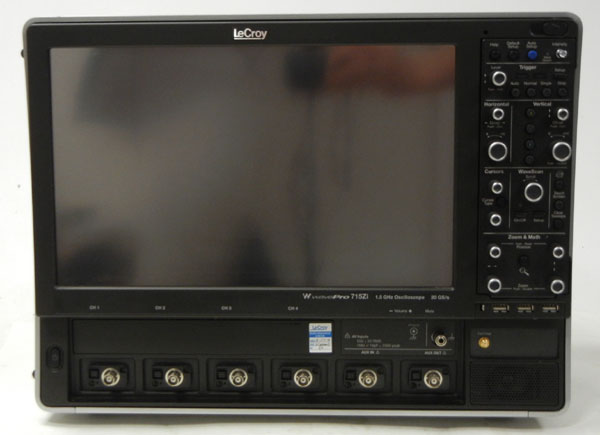

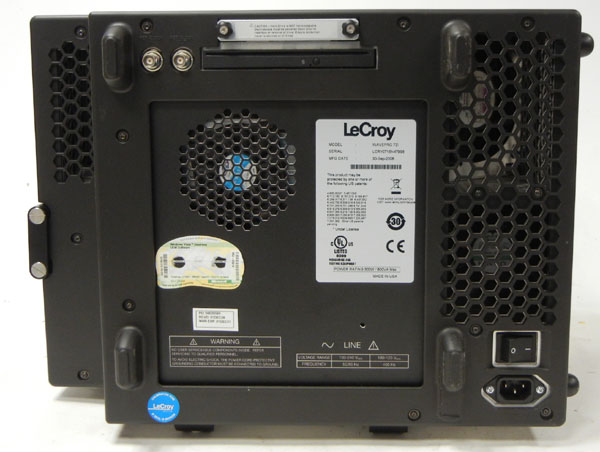

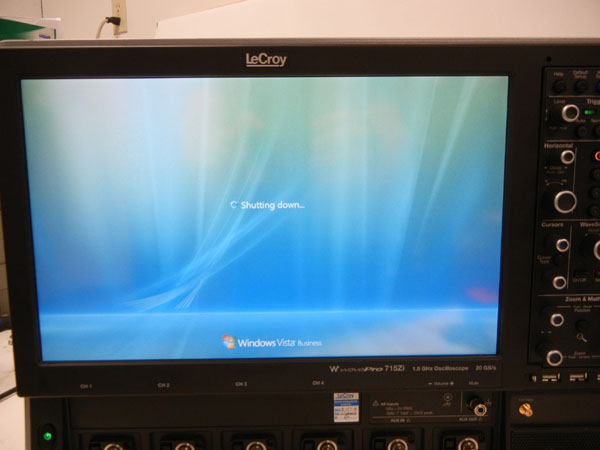

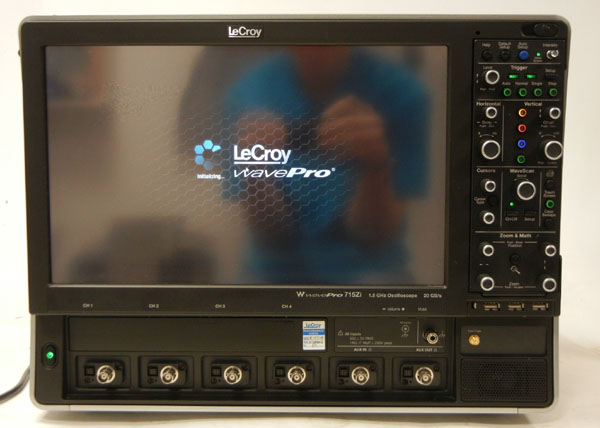

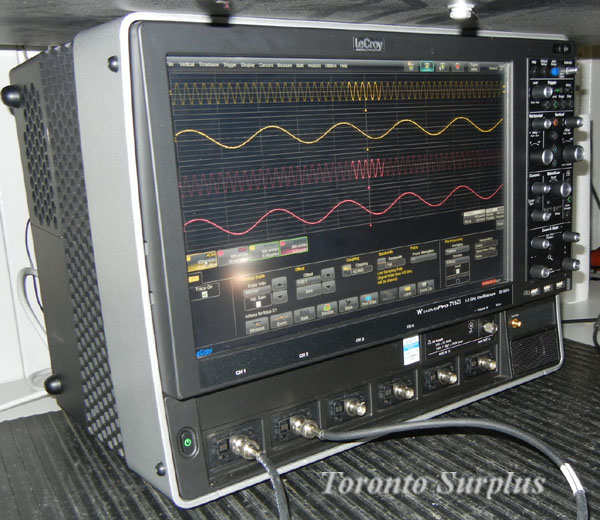

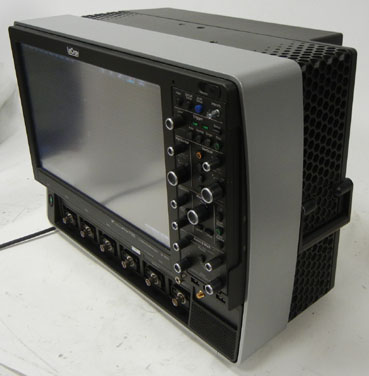

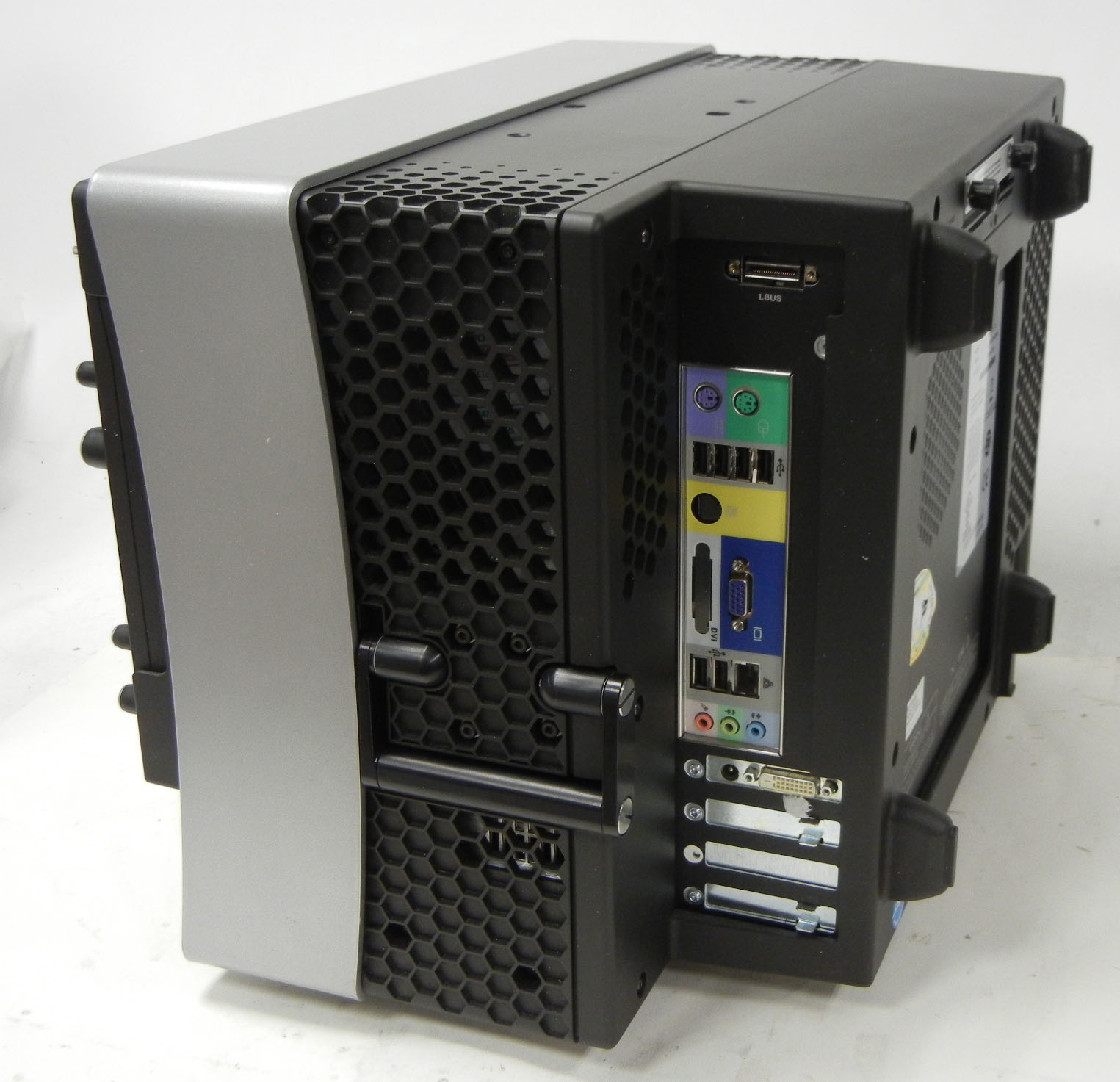

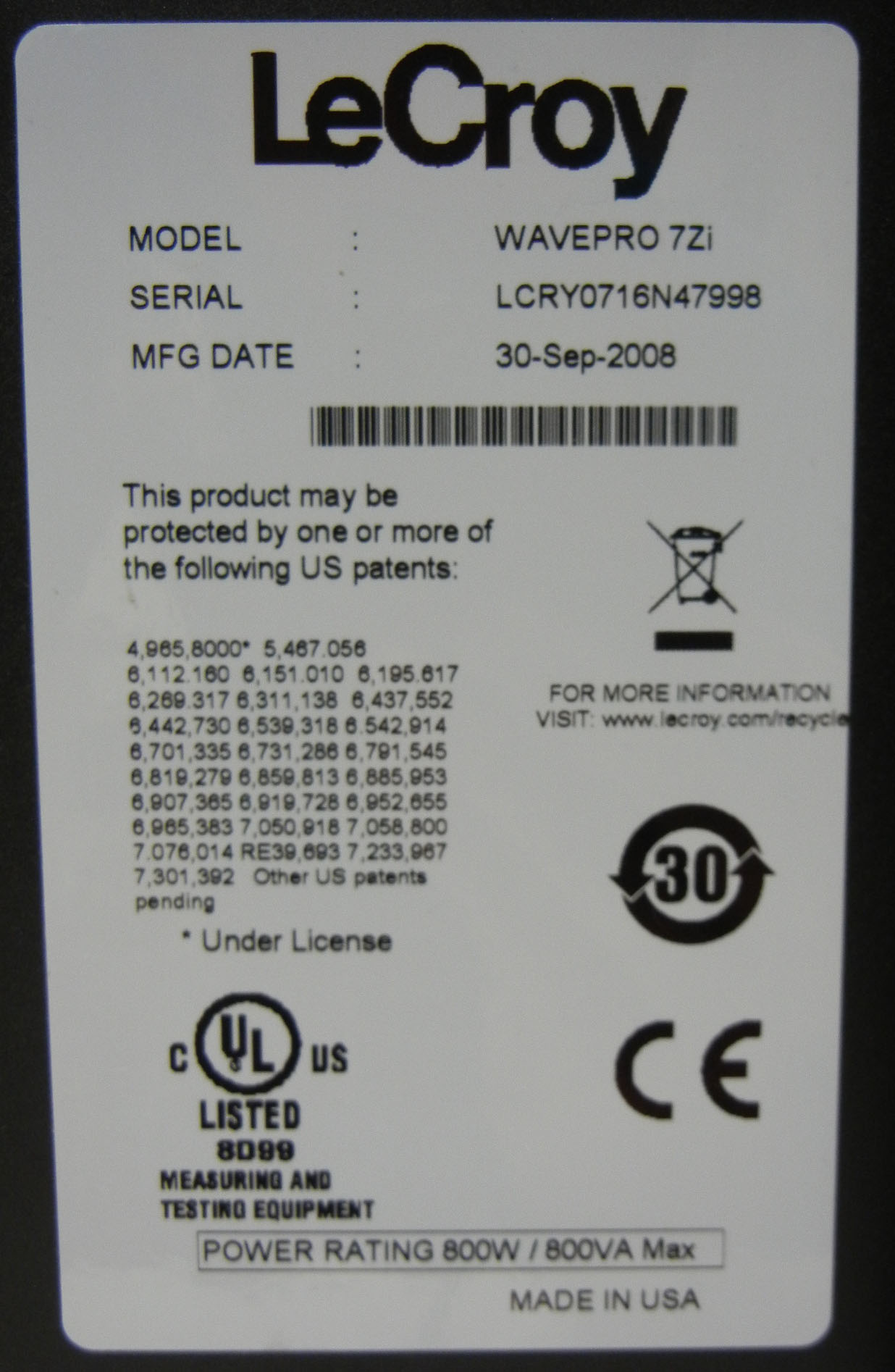

Lecroy WavePro 7Zi / 715Zi-A / 715Zi A Series Precision Digital Oscilloscope, Windows Vista Operating System, HDMI & USB Ports, 1.5 GHz, 10 GS/s, 4ch, 20 Mpts/Ch DSO

Description

<h3 class="icon-head head-products">Lecroy WavePro 7Zi / 715Zi-A / 715Zi A Series Precision Digital Oscilloscope, Windows Vista operating system, HDMI &amp; USB ports, 1.5 GHz, 10 GS/s, 4ch, 20 Mpts/Ch DSO</h3><p>1.5 GHz, 10 GS/s, 4ch, 20 Mpts/Ch DSO with 15.4" WXGA Color Display. 50 ohm and 1 Mohm Input. 20 GS/s and 40 Mpts/Ch in interleaved mode.</p><table width="100%" cellspacing="0" cellpadding="0" border="0"><tbody><tr><td class="cell" width="35%">Bandwidth</td> <td class="cell" width="65%">1.5 GHz</td> </tr> <tr> <td class="cell" width="35%">Analog Bandwidth (Max)</td> <td class="cell" width="65%">1.5 GHz</td> </tr> <tr> <td class="cell" width="35%">Analog Bandwidth @ 50 Ω (-3 dB) (ProBus Input)</td> <td class="cell" width="65%">1.5 GHz
(≥10 mV/div)</td> </tr> <tr> <td class="cell" width="35%">Analog Bandwidth @ 1 MΩ (-3 dB) (ProBus Input)</td> <td class="cell" width="65%">500 MHz (typical)
(≥5 mV/div)</td> </tr> <tr> <td class="cell" width="35%">Rise Time (10-90%, 50 Ω)</td> <td class="cell" width="65%">235 ps (typical, flatness mode)</td> </tr> <tr> <td class="cell" width="35%">Rise Time (20-80%, 50 Ω)</td> <td class="cell" width="65%">176 ps (typical, flatness mode)</td> </tr> <tr> <td class="cell" width="35%">Input Channels</td> <td class="cell" width="65%">4</td> </tr> <tr> <td class="cell" width="35%">Input Channels</td> <td class="cell" width="65%">4</td> </tr> <tr> <td class="cell" width="35%">Bandwidth Limiters</td> <td class="cell" width="65%">20 MHz, 200 MHz, 1 GHz</td> </tr> <tr> <td class="cell" width="35%">Input Impedance</td> <td class="cell" width="65%">50 Ω±2% or 1 MΩ||16pF, 10 MΩ || 11 pF with supplied Probe</td> </tr> <tr> <td class="cell" width="35%">Input Coupling</td> <td class="cell" width="65%">ProBus Inputs - 1 MΩ: AC, DC, GND; 50 Ω: DC, GND</td> </tr> <tr> <td class="cell" width="35%">Maximum Input Voltage</td> <td class="cell" width="65%">50 Ω: ±5 Vrms
1 MΩ: 250 V max. (peak AC: &lt; 10 kHz + DC)</td> </tr> <tr> <td class="cell" width="35%">Channel-Channel Isolation</td> <td class="cell" width="65%">DC to 2 GHz: 46 dB (&gt;200:1 VSWR)
2 to 4 GHz: 34 dB (&gt;50:1 VSWR)
4 to 6 GHz: 26 dB (&gt;20:1 VSWR)
(For any two ProLink input channels, same v/div settings, typical)</td> </tr> <tr> <td class="cell" width="35%">Vertical Resolution</td> <td class="cell" width="65%">8 bits; up to 11 bits with enhanced resolution (ERES)</td> </tr> <tr> <td class="cell" width="35%">Sensitivity</td> <td class="cell" width="65%">50 Ω: 2 mV-1 V/div, fully variable (2-9.99 mV/div via zoom); 1 MΩ: 1 mV-10 V/div, fully variable</td> </tr> <tr> <td class="cell" width="35%">DC Vertical Gain Accuracy (Gain Component of DC Accuracy)</td> <td class="cell" width="65%">±1% F.S. (typical), offset at 0V; ±1.5% F.S. (test limit), offset at 0V</td> </tr> <tr> <td class="cell" width="35%">Vertical Noise Floor (50 mV/div)</td> <td class="cell" width="65%">1.0 mVrms (typical, 20 GS/s)</td> </tr> <tr> <td class="cell" width="35%">Offset Range</td> <td class="cell" width="65%">50 Ω (ProBus):
±750 mV @ 10-170 mV/div
±4 V @ 172 mV/div -1 V/div
1 MΩ:
±1V @ 2-128 mV/div
±10V @ 130mV-1.28V/div
±100V @ 1.3V-10V/div</td> </tr> <tr> <td class="cell" width="35%">DC Vertical Offset Accuracy</td> <td class="cell" width="65%">±(1.5% of offset setting + 1.5% F.S. + 1 mV) (typical)
±(1.5% of offset setting + 2.5% F.S. + 2 mV) (test limit)</td></tr></tbody></table><p>FULL SPECIFICATIONS AVAILABLE UPON REQUEST.</p>
