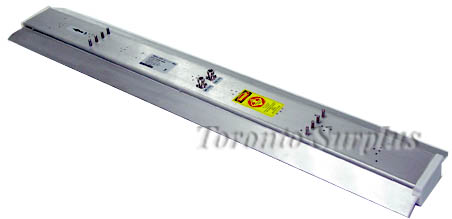

Laird Technologies J23017S00-60N, 2.3 - 2.7 GHz, 60º Dual Slant 45º Polarization Brand New/NOS

Description

<h3 class="icon-head head-products">J23017S00-60N, 2.3 - 2.7 GHz, 60º Dual Slant 45º Polarization</h3><h4>Wimax/Broadband Wireless
2.5 GHz high performance 60° beam-width
Dual 45° slant sector antenna</h4><p>The Cushcraft J23017S00-60N 2.5 GHz wide band dual slant sector antenna covers the frequency band from 2.3 - 2.7 GHz. Extremely low side lobes, null fill below the horizon and uniform energy distribution within the coverage area are realized thanks to Cushcraft's highly skilled engineering staff and the utilization of our proprietary Artificial Intelligence RF Optimization development tool. The antenna exceeds all aspects of ETSI EN 301.525 CS. Cushcraft's suite of high performance sector antennas feature proprietary design elements (patent pending) resulting in extremely high levels of system performance and ruggedness while maintaining very slim profiles with low wind and ice loading.</p><p><!--[if gte mso 9]><xml> <w:WordDocument> <w:View>Normal</w:View> <w:Zoom>0</w:Zoom> <w:DoNotOptimizeForBrowser /> </w:WordDocument> </xml><![endif]--></p><ul type="disc"><li class="MsoNormal" style="">Rugged tilt mount hardware included</li><li class="MsoNormal" style="">Low side lobe performance</li><li class="MsoNormal" style="">Null fill below the horizon</li><li class="MsoNormal" style="">Excellent f/b ratio</li><li class="MsoNormal" style="">High level Antenna to Antenna co-located isolation</li><li class="MsoNormal" style="">Optimized for Maximum Ration Combining</li></ul> <p>16.5 dBi</p><p>Max VSWR: 1:8:1</p><p>3dB Beamwidth, Elevation Plane - 7 Degrees</p><p>3dB Beamwidth, Azimuth Plane - 60 Degrees</p><p>Elevation Null Fill - Down to -25 Degrees</p><p>Azimuth Sidelobes - <span class="text1"><span class="text1">ETSI EN 301.525 CS</span></span></p><p><span class="text1"><span class="text1">Polarization: 45 Degrees and -45 Degrees</span></span></p><p><span class="text1"><span class="text1">Port to Port Isolation: &gt;25 dB</span></span></p><p><span class="text1"><span class="text1">Front to back ratio: &gt;35 dB</span></span></p><p><span class="text1"><span class="text1">Max Input Power: 10 Watts</span></span></p><p><span class="text1"><span class="text1">Input Impedance: 50 ohms</span></span></p><p>Min. Front to Back Isolation: <span class="text1"><span class="text1">ETSI EN 301.525 CS</span></span></p><p><span class="text1"><span class="text1">Min Cross Polarization: </span></span><span class="text1"><span class="text1">ETSI EN 301.525 CS</span></span></p><p><span class="text1"><span class="text1">Mechanical Size:&#160;</span></span><span class="text1"><span class="text1">39.9 x 6.9 x 4.0 in</span></span></p><p><span class="text1"><span class="text1">Weight: 3.2 kg</span></span></p><p><span class="text1"><span class="text1">Wind Survival Rating:</span></span> Operation 100mph, Survival 136mph</p><p>Antenna Connector: N (female)</p><p>Mounting Style: Mast mount</p><p>Temperature: -40 - 70 degrees celsius</p><p>Lightening Protection: DC -grounded</p><p>&#160;</p><p>*Note: Mounting kit (Heavy Duty Sector) included.</p>

Specifications
