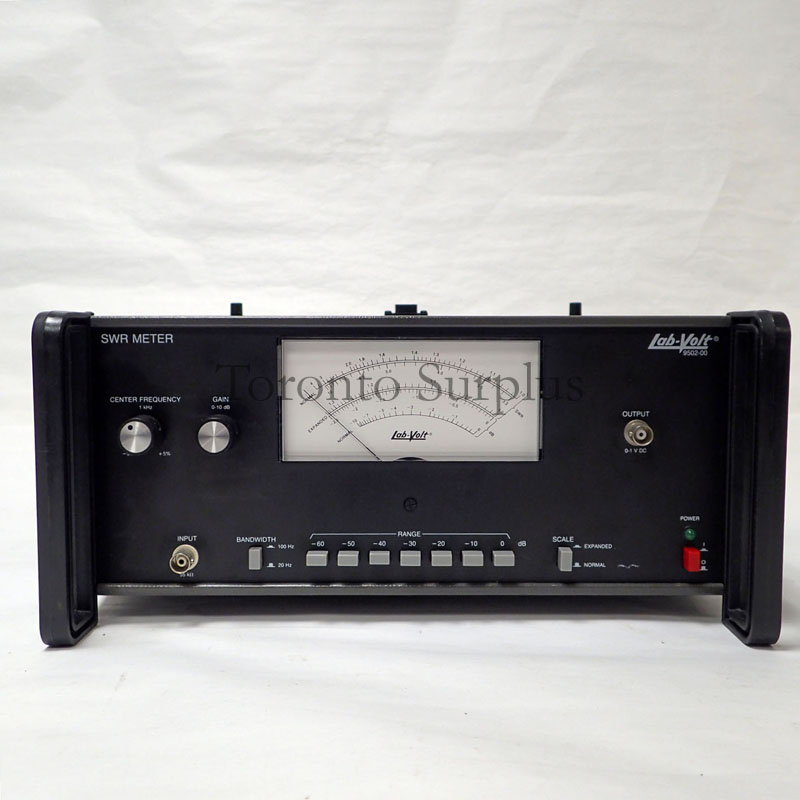

Lab-Volt / LabVolt 9502-00 SWR Meter 0-70dB (SWR: 1 to 3200) - Training / Education
sku127822 — low stock
$325.00CAD
By Lab-Volt
<p>The SWR Meter can be used to perform the following: Microwave power and attenuation measurements Microwave frequency measurements and Standing wave ratio (SWR) measurements. The SWR Meter essentially consists of a narrow-band amplifier tuned to a frequency of approximately1 kHz, and an indi…
Description
<p>The SWR Meter can be used to perform the following:
Microwave power and attenuation measurements
Microwave frequency measurements and
Standing wave ratio (SWR) measurements.
The SWR Meter essentially consists of a narrow-band amplifier tuned to a frequency of approximately1 kHz, and an indicator.
The microwave signals to be measured with the SWR Meter must be amplitude modulated by a 1 kHz square wave. This square wave is produced by the Gunn Oscillator Power Supply.
Specifications
Dynamic Range: 0-70 dB (SWR: 1 to 3200)</p>
